D-Link DIR-655 User Manual

33D-Link DIR-655 User Manual
Section 3 - Conguration
It is recommended to enable encryption on your wireless router before your
wireless network adapters. Please establish wireless connectivity before
enabling encryption. Your wireless signal may degrade when enabling
encryption due to the added overhead.

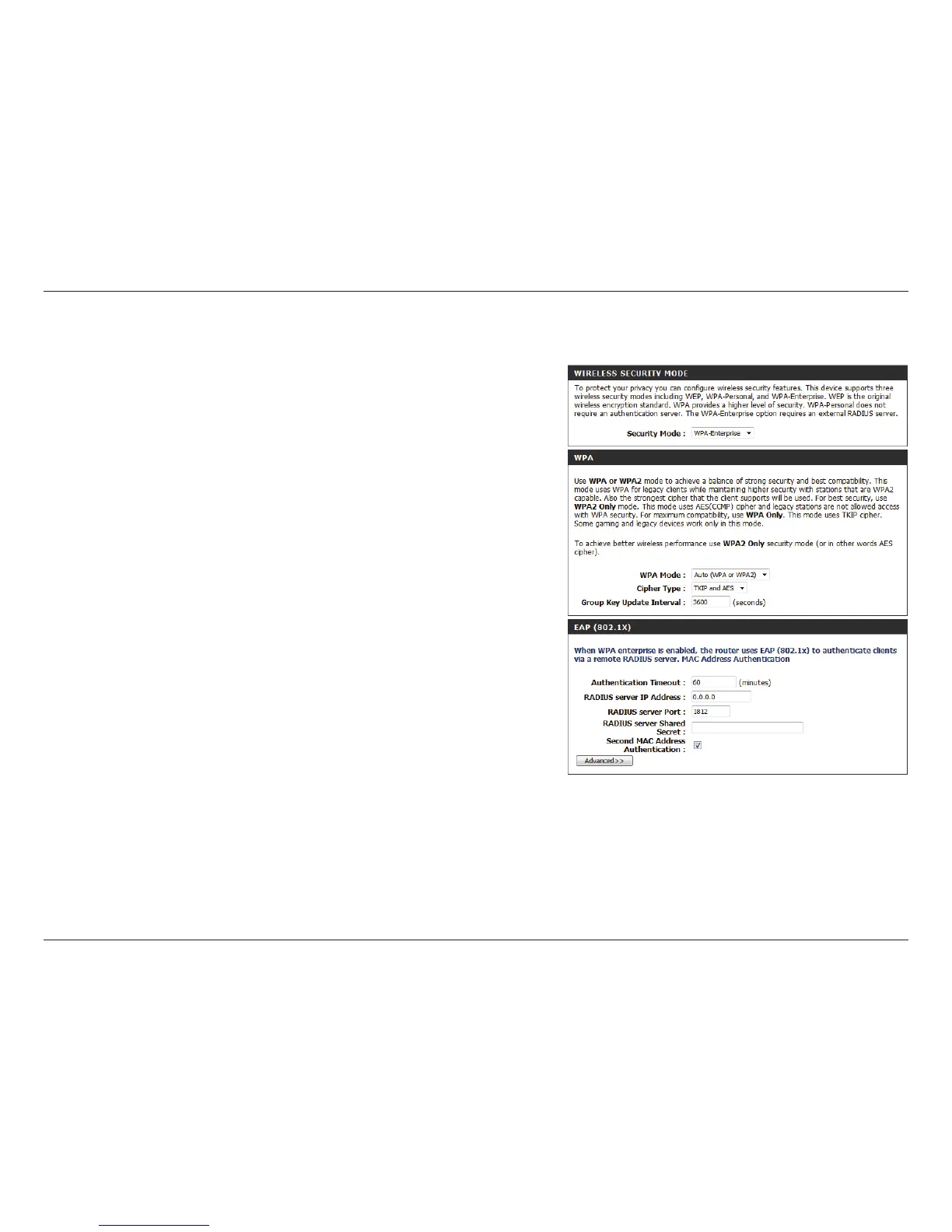

1. Log into the web-based conguration by opening a web browser and
entering the IP address of the router (192.168.0.1). Click on Setup and
then click Wireless Settings on the left side.
2. Next to Security Mode, select WPA-Enterprise.
3. Next to WPA Mode, select Auto, WPA2 Only, or WPA Only. Use Auto if
you have wireless clients using both WPA and WPA2.
4. Next to Group Key Update Interval, enter the amount of time before the
group key used for broadcast and multicast data is changed (3600 is
default).
5. Next to Authentication Timeout, enter the amount of time before a client
is required to re-authenticate (60 minutes is default).
6. Next to RADIUS Server IP Address enter the IP Address of your RADIUS server.
7. Next to RADIUS Server Port, enter the port you are using with your RADIUS
server. 1812 is the default port.
8. Next to RADIUS Server Shared Secret, enter the security key.
WPA-Enterprise (RADIUS)

D-Link DIR-655 Specifications

Device Interface

number of gigabit lan ports	4
number of gigabit wan ports	1
usb port	1

Standards

ieee 802.11n	draft 2.0
ieee 802.11g	yes
ieee 802.3	yes
ieee 802.3u	yes

Weight and Dimensions

item dimensions (width x depth x height)	4.6” x 7.6” x 1.2”
packaging dimensions (width x depth x height)	8.1” x 10.9” x 2.6”
item weight	0.7 lbs
packaging weight	2.0 lbs
