D-Link DIR-655 User Manual

73D-Link DIR-655 User Manual
Section 3 - Conguration

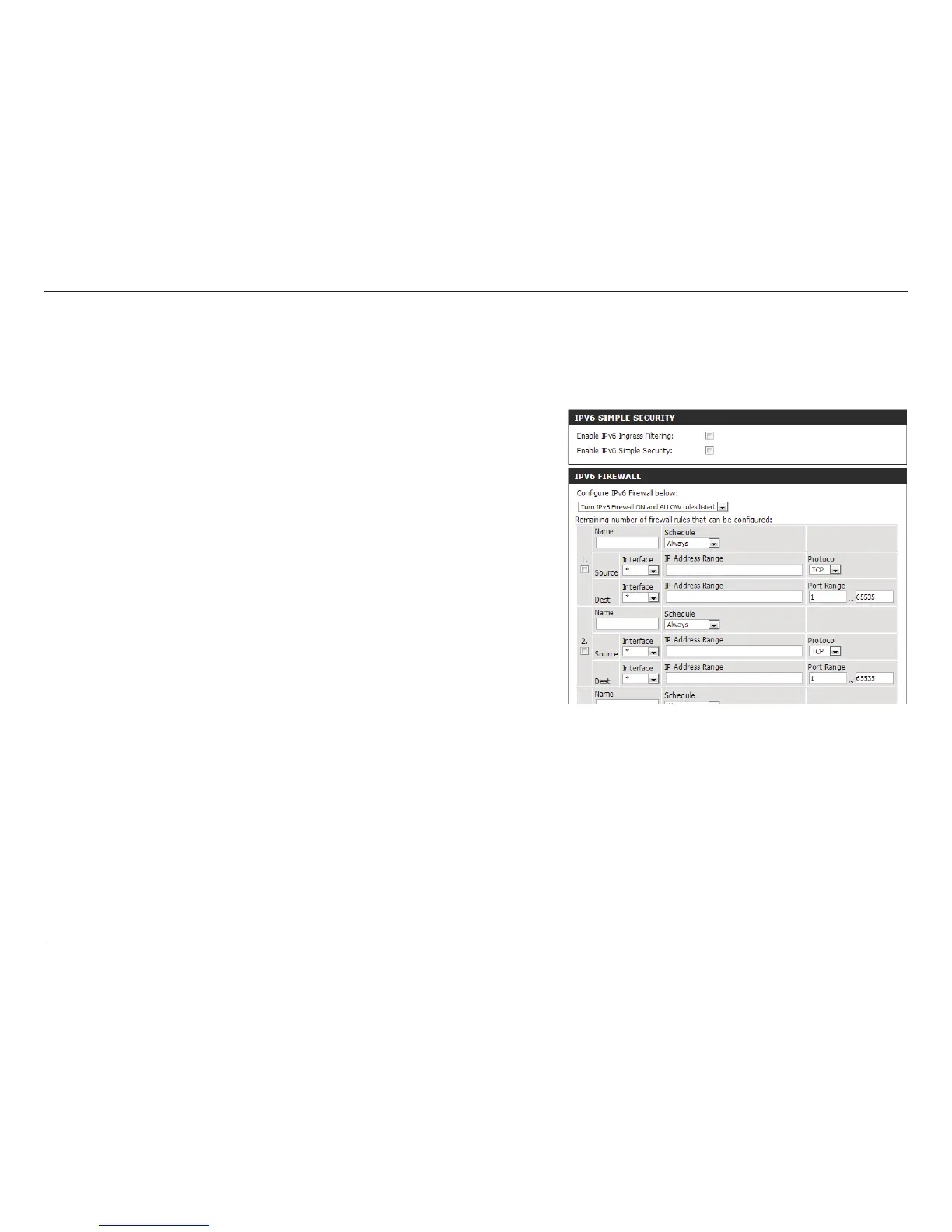

IPv6 Firewall
The DIR-655’s IPv6 Firewall feature allows you to congure which kind of IPv6 trac is allowed to pass through the device. The DIR-655’s IPv6 Firewall
functions in a similar way to the Inbound Filters feature.
Check to enable the IPv6 rewall simple security.
Check to enable IPv6 ingress lter.
Select an action from the drop-down menu.
Enter a name to identify the IPv6 Firewall Rule.
Use the drop-down menu to select the time schedule that the IPv6 Firewall
Rule will be enabled on. The schedule may be set to Always, which will allow
the particular service to always be enabled. You can create your own times
in the Tools > Schedules section.
Use the Source drop-down menu to specify the interface that connects to
the source IPv6 addresses of the rewall rule.
Enter the source IPv6 address range in the adjacent IP Address Range eld.
Use the Dest drop-down menu to specify the interface that connects to the
destination IP addresses of the rewall rule.
Select the protocol of the rewall port (All, TCP, UDP or ICMP).
Enter the rst port of the range that will be used for the rewall rule in the
rst box and enter the last port in the eld in the second box.
Enable IPv6 Simple
Security:
Enable IPv6 Ingress
Filtering:
Congure IPv6
Firewall:
Name:
Schedule:
Source:
IP Address Range:
Dest:
Protocol:
Port Range:

D-Link DIR-655 Specifications

Device Interface

number of gigabit lan ports	4
number of gigabit wan ports	1
usb port	1

Standards

ieee 802.11n	draft 2.0
ieee 802.11g	yes
ieee 802.3	yes
ieee 802.3u	yes

Weight and Dimensions

item dimensions (width x depth x height)	4.6” x 7.6” x 1.2”
packaging dimensions (width x depth x height)	8.1” x 10.9” x 2.6”
item weight	0.7 lbs
packaging weight	2.0 lbs
