D-Link DIR-655 User Manual

84D-Link DIR-655 User Manual
Section 3 - Conguration

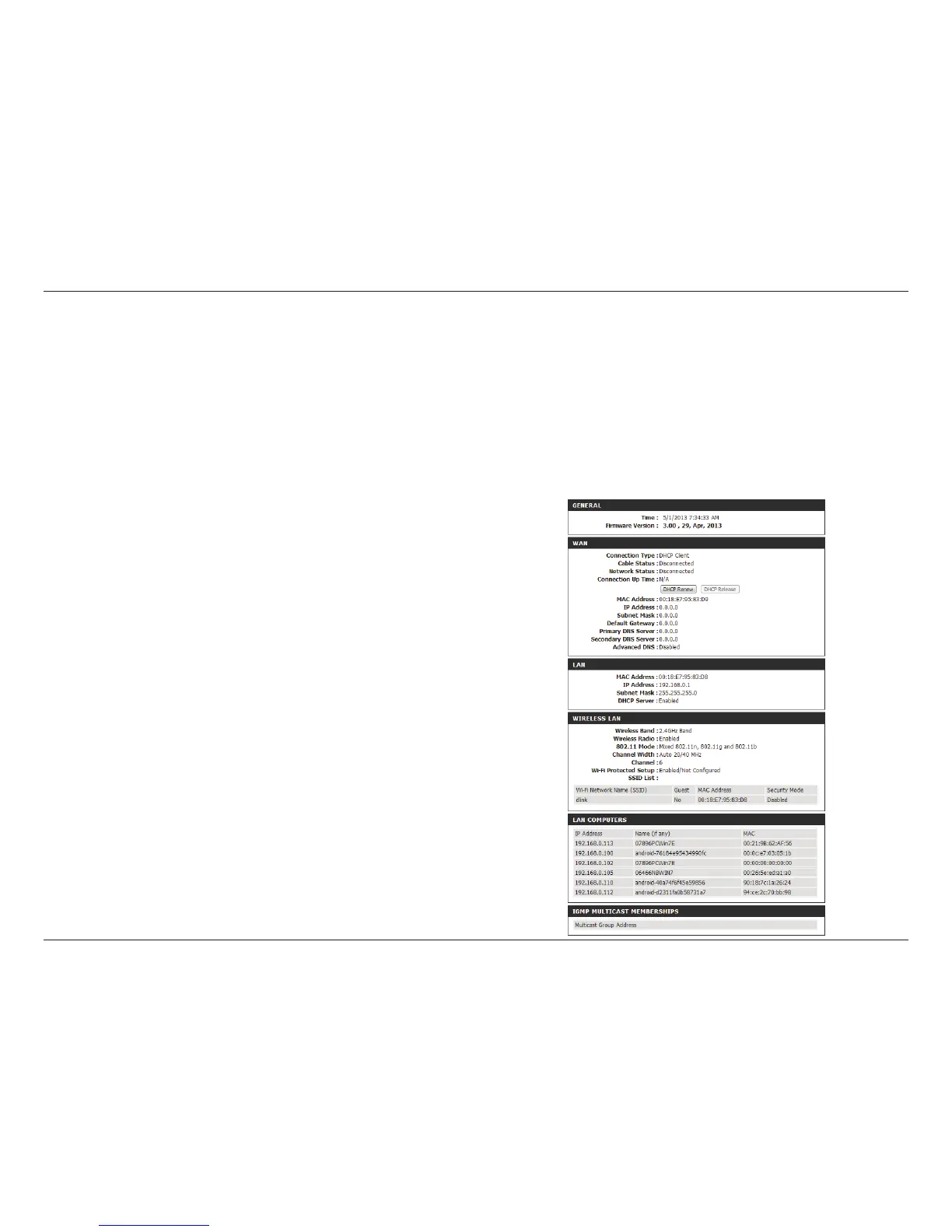

The Device Info page displays the current information for the DIR-655. It will display the LAN, WAN (Internet), and Wireless information. If your Internet
connection is set up for a Dynamic IP address then a Release button and a Renew button will be displayed. Use Release to disconnect from your
ISP and use Renew to connect to your ISP.
If your Internet connection is set up for PPPoE, a Connect button and a Disconnect button will be displayed. Use Disconnect to drop the PPPoE
connection and use Connect to establish the PPPoE connection.
Displays the router’s time and rmware version.
Displays the MAC address and the public IP settings
Displays the MAC address and the private (local) IP settings for the router.
Displays the 2.4GHz wireless MAC address and your wireless settings such
as SSID and Channel.
Displays computers and devices that are connected to the router via
Ethernet and that are receiving an IP address assigned by the router (DHCP).
General:
WAN:
LAN:
Wireless LAN1:
LAN Computers:
Device Info
Status

D-Link DIR-655 Specifications

Device Interface

number of gigabit lan ports	4
number of gigabit wan ports	1
usb port	1

Standards

ieee 802.11n	draft 2.0
ieee 802.11g	yes
ieee 802.3	yes
ieee 802.3u	yes

Weight and Dimensions

item dimensions (width x depth x height)	4.6” x 7.6” x 1.2”
packaging dimensions (width x depth x height)	8.1” x 10.9” x 2.6”
item weight	0.7 lbs
packaging weight	2.0 lbs
