DIR-882 AC2600 Wave 2 MU-MIMO Wi-Fi Gigabit Router with
3G/LTE Support and 2 USB Ports
User Manual
Configuring via Web-based Interface
FTP
On the USB Storage / FTP page, you can enable the built-in FTP server of the router to provide
access to the USB storage for users of your LAN.

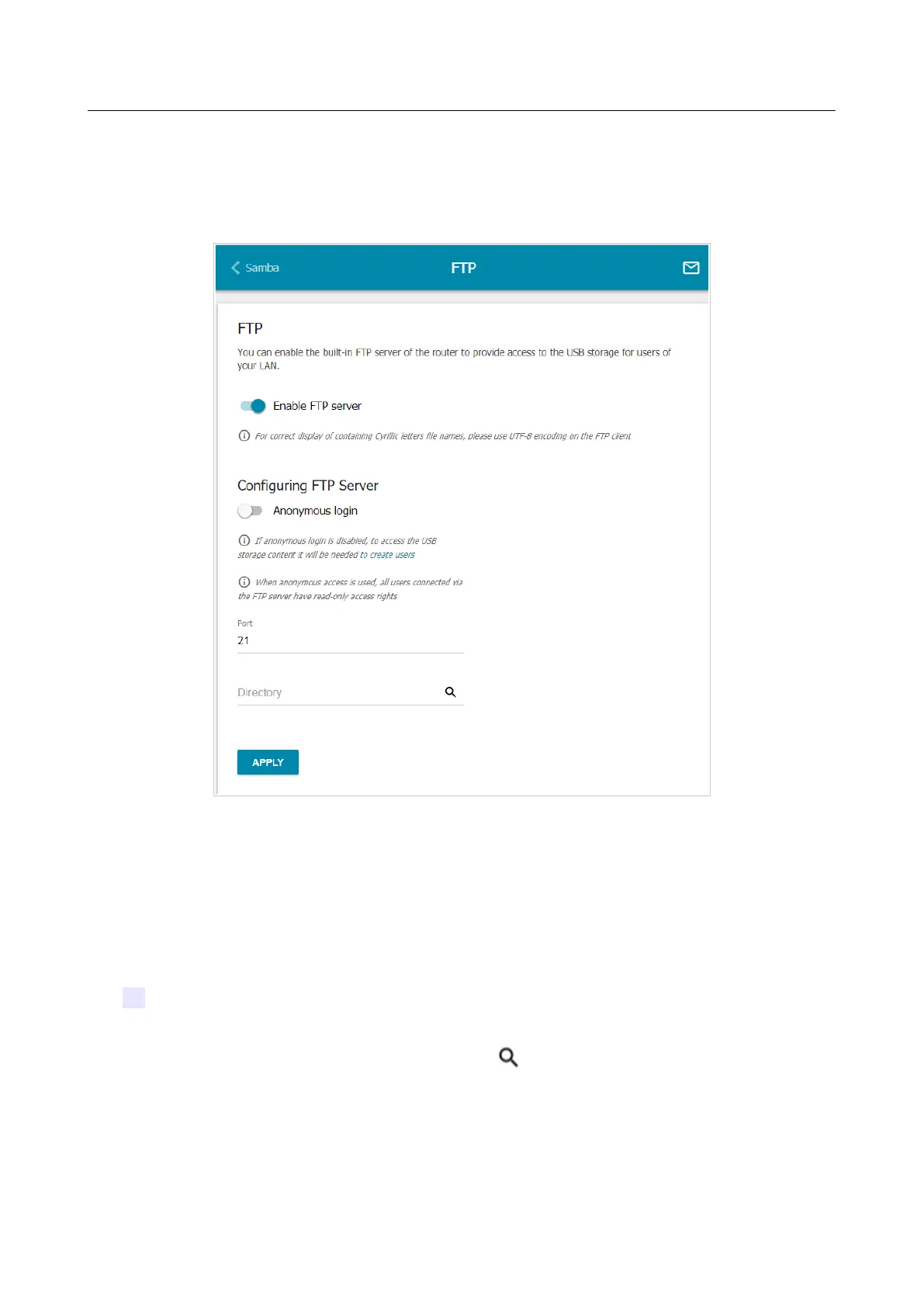

Figure 149. The USB Storage / FTP page.
To enable the FTP server, move the Enable FTP server switch to the right.
Move the Anonymous login switch to the right to allow anonymous access to the content of the
USB storage for users of your LAN. If you want to provide authorized access to the content of the
USB storage for users of your LAN, move the switch to the left. After applying the parameters on
this page, go to the USB Storage / USB Users page and create needed accounts.
If needed, change the router's port used by the FTP server in the Port field (by default, the standard
port 21 is specified).
To allow access only to a certain folder of the USB storage for users of your LAN, locate a folder
containing files. To do this, click the Search icon ( ) in the Directory field. Then go to the
needed folder and click the SELECT button.
After specifying the needed parameters, click the APPLY button.
To allow access to all the content of the USB storage for users of your LAN again, remove the value
specified in the Directory field and click the APPLY button.
Page 191 of 303

Table of Contents

Other manuals for D-Link DIR-882

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the D-Link DIR-882 and is the answer not in the manual?

D-Link DIR-882 Specifications

General IconGeneral
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN data transfer rate (max)2533 Mbit/s
WLAN data transfer rate (first band)800 Mbit/s
WLAN data transfer rate (second band)1733 Mbit/s
CertificationFCC B, CE, C-Tick, S Mark
Processor cores2
Built-in processorYes
Product typeTabletop router
Product colorBlack
LED indicatorsLAN, Power, USB, WLAN
Antennas quantity4
VPN supportPPTP/L2TP/IPsec
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
3GNo
USB 2.0 ports quantity1
DSL WAN-
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supportedWindows 10, Windows 7, Windows 8, Windows 8.1
Security algorithmsWPA, WPA2, WPS
Output current2.5 A
Output voltage12 V
AC input voltage100 - 240 V
Power source typeAC
AC input frequency50 - 60 Hz
Storage temperature (T-T)-20 - 65 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 95 %
Operating relative humidity (H-H)0 - 90 %
Cables includedLAN (RJ-45)
Supported network protocolsIPv4/IPv6
Package depth330 mm
Package width280 mm
Package height90 mm
Package weight1163 g
Pallet width1200 mm
Pallet length1100 mm
Pallet height (air)1227 mm
Pallet height (sea)1955 mm
Pallet gross weight (air)175050 g
Pallet gross weight (sea)281080 g
Quantity per pallet (air)120 pc(s)
Quantity per pallet (sea)200 pc(s)
Shipping (inner) case width296 mm
Shipping (inner) case height364 mm
Shipping (inner) case length477 mm
Shipping (inner) case weight6627 g
Shipping (inner) case net weight5815 g
Number of cartons per pallet (air)24 pc(s)
Number of cartons per pallet (sea)40 pc(s)
Quantity per shipping (inner) case5 pc(s)
Weight and Dimensions IconWeight and Dimensions
Depth177.8 mm
Width254 mm
Height44.45 mm
Weight565 g
