D-Link DIR-882 User Manual

DIR-882 AC2600 Wave 2 MU-MIMO Wi-Fi Gigabit Router with
3G/LTE Support and 2 USB Ports
User Manual
Configuring via Web-based Interface
MAC Filter
On the Firewall / MAC Filter page, you can configure MAC-address-based filtering for computers
of the router's LAN.

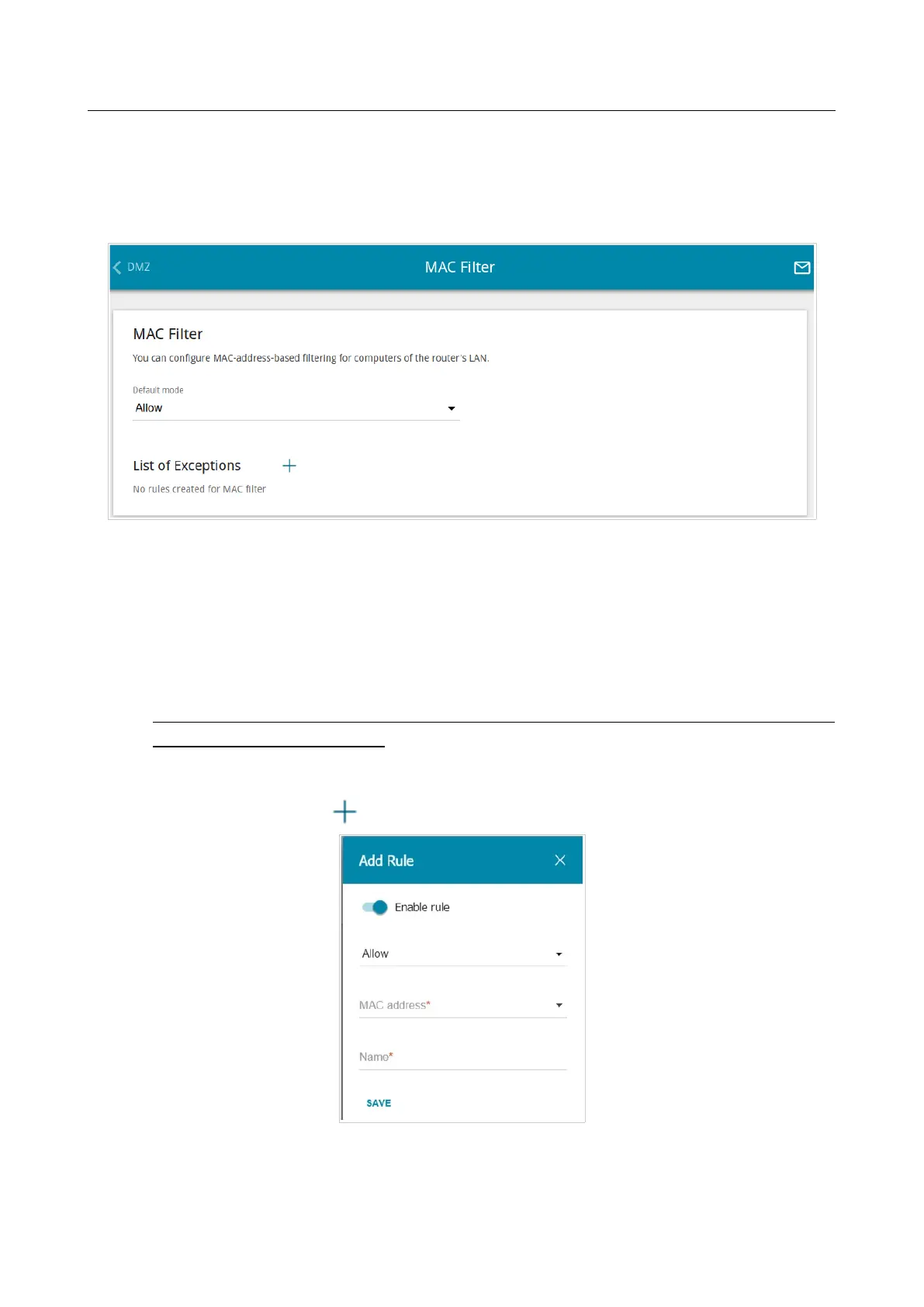

Figure 196. The Firewall / MAC Filter page.
Select the needed action from the drop-down list in the Default mode section to configure
filtering for all devices of the router's network.
• Allow: Allows access to the router's network and to the Internet for devices (the value is
specified by default);
• Deny: Blocks access to the router's network for devices.
!
You can use the Deny mode only if an active rule which allows access to the device's
network is created on the page.
To create a rule (specify a MAC address of a device for which the specified filtering mode will be
applied), click the ADD button ( ).
Figure 197. The window for adding a rule for the MAC filter.
Page 256 of 303

D-Link DIR-882 Specifications

General

Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	2533 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1733 Mbit/s
Certification	FCC B, CE, C-Tick, S Mark
Processor cores	2
Built-in processor	Yes
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, USB, WLAN
Antennas quantity	4
VPN support	PPTP/L2TP/IPsec
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
3G	No
USB 2.0 ports quantity	1
DSL WAN	-
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Security algorithms	WPA, WPA2, WPS
Output current	2.5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	0 - 90 %
Cables included	LAN (RJ-45)
Supported network protocols	IPv4/IPv6
Package depth	330 mm
Package width	280 mm
Package height	90 mm
Package weight	1163 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1227 mm
Pallet height (sea)	1955 mm
Pallet gross weight (air)	175050 g
Pallet gross weight (sea)	281080 g
Quantity per pallet (air)	120 pc(s)
Quantity per pallet (sea)	200 pc(s)
Shipping (inner) case width	296 mm
Shipping (inner) case height	364 mm
Shipping (inner) case length	477 mm
Shipping (inner) case weight	6627 g
Shipping (inner) case net weight	5815 g
Number of cartons per pallet (air)	24 pc(s)
Number of cartons per pallet (sea)	40 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	177.8 mm
Width	254 mm
Height	44.45 mm
Weight	565 g
