D-Link DIR-882 User Manual

DIR-882 AC2600 Wave 2 MU-MIMO Wi-Fi Gigabit Router with
3G/LTE Support and 2 USB Ports
User Manual
Configuring via Web-based Interface
XUPNPD
On the USB Storage / XUPNPD page, you can enable the XUPNPD plug-in. It allows to
broadcast media content received from the Internet sources or IPTV service to DLNA-certified
devices of your LAN.

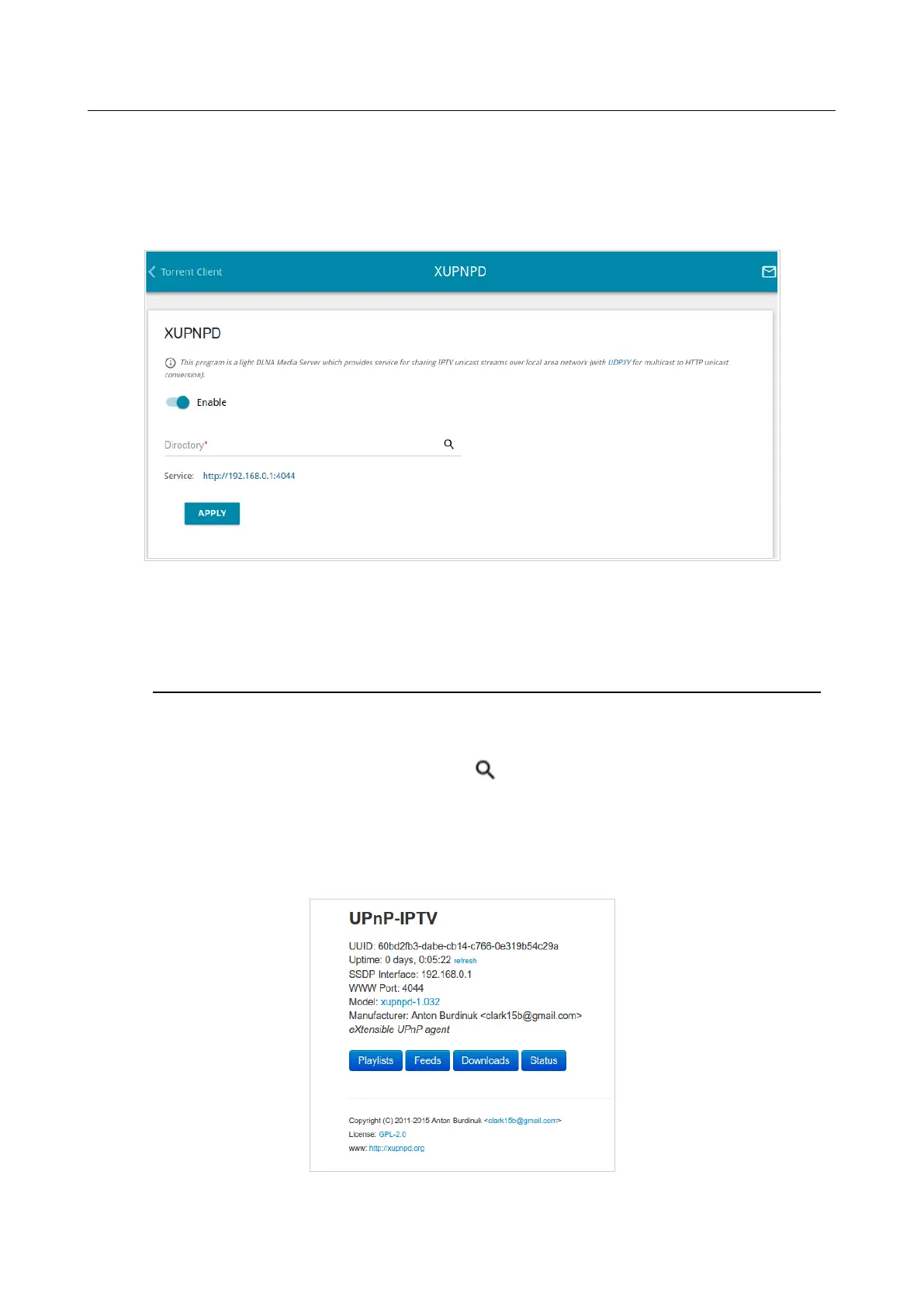

Figure 155. The USB Storage / XUPNPD page.
To use the XUPNPD plug-in, connect a USB storage to the router and move the Enable switch to
the right.
!
To let IPTV services operate using the XUPNPD plug-in, enable the UDPXY application.
In the Directory field, locate a folder to which playlists added on the page of the XUPNPD plug-in
will be saved. To do this, click the Search icon ( ), then go to the needed folder and click the
SELECT button.
Click the APPLY button.
In the Service field, the address of the web-based interface of the XUPNPD plug-in is displayed.
To access the page of the XUPNPD plug-in and configure all needed settings, click the link.
Figure 156. The XUPNPD plug-in page.
Page 200 of 303

D-Link DIR-882 Specifications

General

Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	2533 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1733 Mbit/s
Certification	FCC B, CE, C-Tick, S Mark
Processor cores	2
Built-in processor	Yes
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, USB, WLAN
Antennas quantity	4
VPN support	PPTP/L2TP/IPsec
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
3G	No
USB 2.0 ports quantity	1
DSL WAN	-
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Security algorithms	WPA, WPA2, WPS
Output current	2.5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	0 - 90 %
Cables included	LAN (RJ-45)
Supported network protocols	IPv4/IPv6
Package depth	330 mm
Package width	280 mm
Package height	90 mm
Package weight	1163 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1227 mm
Pallet height (sea)	1955 mm
Pallet gross weight (air)	175050 g
Pallet gross weight (sea)	281080 g
Quantity per pallet (air)	120 pc(s)
Quantity per pallet (sea)	200 pc(s)
Shipping (inner) case width	296 mm
Shipping (inner) case height	364 mm
Shipping (inner) case length	477 mm
Shipping (inner) case weight	6627 g
Shipping (inner) case net weight	5815 g
Number of cartons per pallet (air)	24 pc(s)
Number of cartons per pallet (sea)	40 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	177.8 mm
Width	254 mm
Height	44.45 mm
Weight	565 g
