D-Link ShareCenter™ DNS-320L User Manual
Section 4 - Conguration

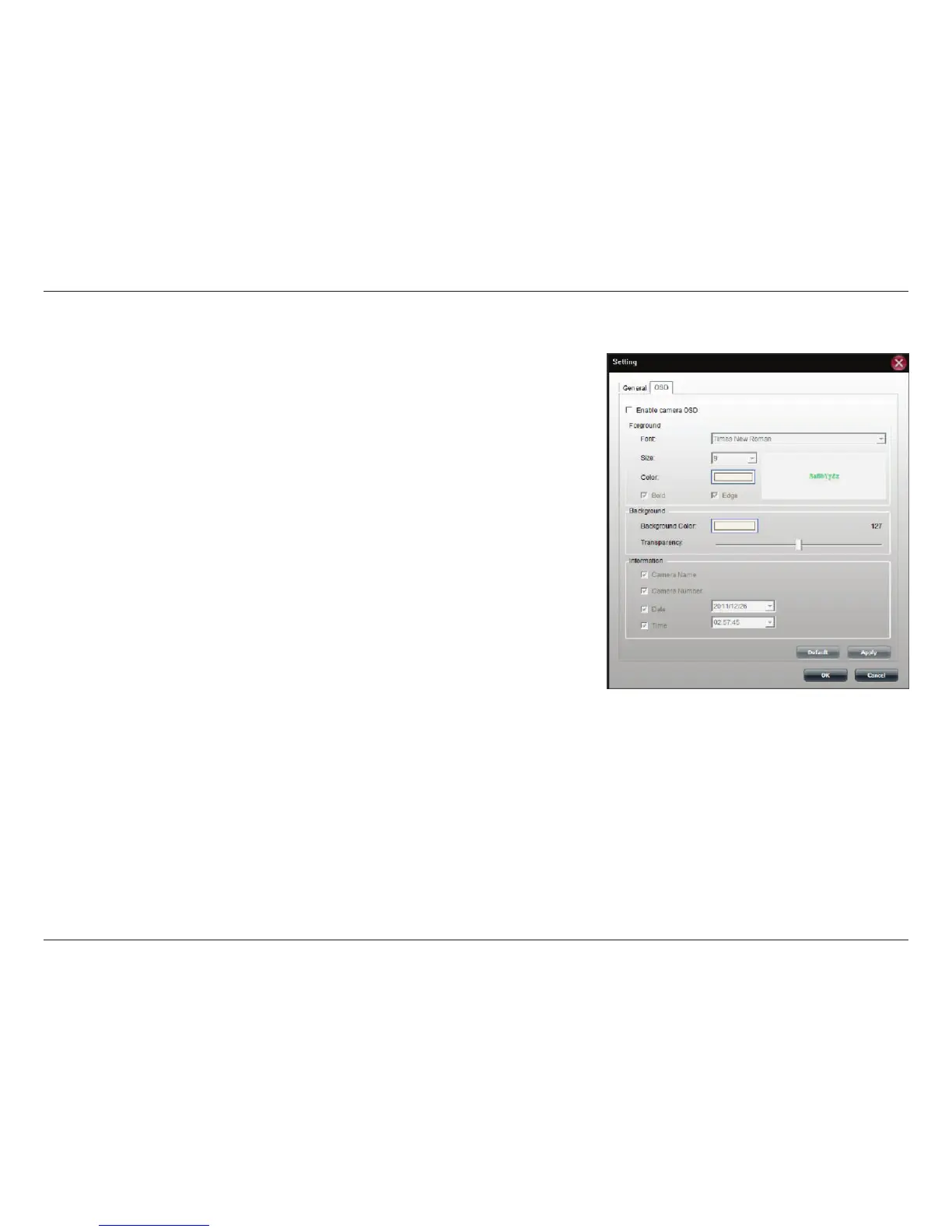

My Surveillance - OSD Settings
You can access this window from the Live Video window by clicking the Settings button and
then selecting the OSD tab at the top. The On Screen Display settings window allows you to
adjust settings for the display of an overlay of information on the video.
If you want to enable this overlay, check the Enable camera OSD box.
Foreground - You can adjust the font type, size, and color of the foreground box. There are
also options to make the text bold and choosing the edge option will apply the selected
color to the text.
Background - In the background section you can select a color for the OSD box, and the
level of transparency.
Information - The information box allows you to select the information to display. You may
display the camera name, camera number, the date and time. There are several date and
time formats to select on and this may be done by using the drop down menus.
If you have made changes and want to revert back to the default settings, click the Default
button at the bottom. Click Apply to save the current conguration.
Click OK when you are done to save your settings.

D-Link ShareCenter DNS-320L Specifications

General

RAID levels	0, 1, JBOD
Storage drive size	3.5 \
Storage drive capacity	0 GB
Supported file systems	ext3, FAT32, NTFS
Storage drive interface	Serial ATA, Serial ATA II
Total installed storage capacity	0 TB
Maximum supported storage capacity	6 TB
Number of storage drives installed	0
Number of storage drives supported	2
Wi-Fi	No
Ethernet LAN	Yes
Cabling technology	10/100/1000BASE-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, CIFS/SMB, NFS v2/v3, AFP 3.1, HTTP/HTTP, DDNS, NTP, FTP, LLTD, PnP-X, UPnP AV, WebDAV
Compliance industry standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Power requirements	DC 12V / 3A
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet
Compatible operating systems	Windows XP/Vista/7, Mac OS X 10.5, Linux
Number of users	256 user(s)
FireWire 400	FireWire-interface with a data transmission speed of 400 Mbit/s (50MB/s). FireWire is a serial computer bus technology designed as replacement of SCSI and is based on the IEEE 1394 and 1394b standards.
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Product color	Black
LED indicators	HDD, Power, WLAN
Number of fans	1 fan(s)
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Certification	CE, FCC, IC, DLNA

Weight and Dimensions

Depth	144.3 mm
Width	90 mm
Height	193.3 mm
Weight	630 g
