Section 4 - Conguration

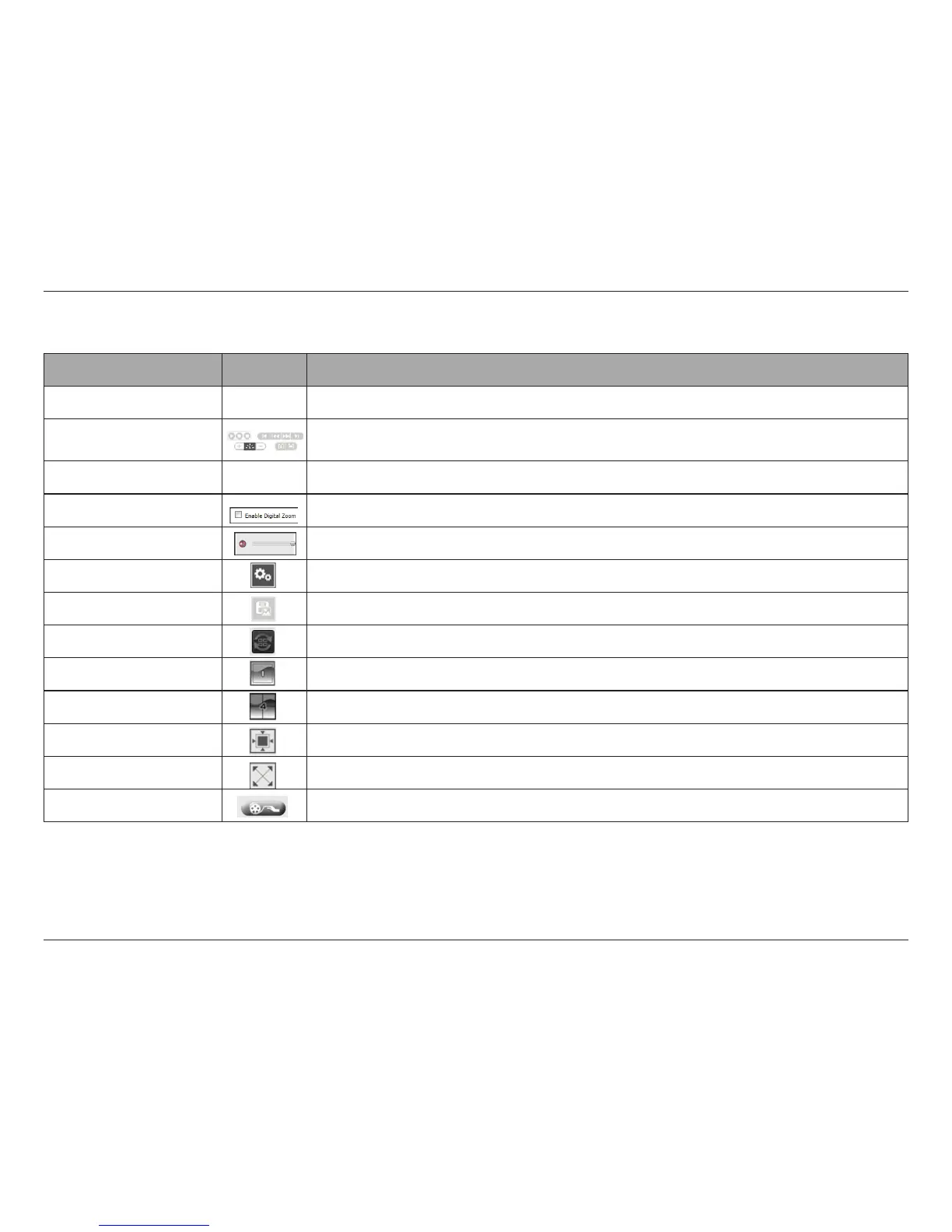

COMPONENT ICON DESCRIPTION
Recorded Video Playback View the recorded video here
Playback Controls
Control the playback video from here (clockwise): Play/Stop/Pause/ Previous Second/Previous Minute/
Next Minute/Next Second / Speed Up/Speed Down / Zoom In/Zoom Out
Camera Details
This area displays the time and date of the recording, the playback speed and the current state of
playback.
Enable Digital Zoom Enable this on individual cameras
Mute and Volume Slider
The mute button can be used to mute the sound from the recorded video and the slider bar to adjust
the volume
Settings This congures general setting
Snapshot Take a live snapshot of the recorded video
Synchronous Playback This syncs four video channels to playback at the same time
View as 1x1 View one screen at a time
View as 2x2 View four cameras at a time
Actual Size The bottom lets you view cameras with the actual size
Full Screen
View a live video stream of any camera in full scream mode and press Escape to return to the user
interface.
Open Recording Click this button to open an existing recording.
My Surveillance - Playback

D-Link ShareCenter DNS-320L Specifications

General

RAID levels	0, 1, JBOD
Storage drive size	3.5 \
Storage drive capacity	0 GB
Supported file systems	ext3, FAT32, NTFS
Storage drive interface	Serial ATA, Serial ATA II
Total installed storage capacity	0 TB
Maximum supported storage capacity	6 TB
Number of storage drives installed	0
Number of storage drives supported	2
Wi-Fi	No
Ethernet LAN	Yes
Cabling technology	10/100/1000BASE-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, CIFS/SMB, NFS v2/v3, AFP 3.1, HTTP/HTTP, DDNS, NTP, FTP, LLTD, PnP-X, UPnP AV, WebDAV
Compliance industry standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Power requirements	DC 12V / 3A
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet
Compatible operating systems	Windows XP/Vista/7, Mac OS X 10.5, Linux
Number of users	256 user(s)
FireWire 400	FireWire-interface with a data transmission speed of 400 Mbit/s (50MB/s). FireWire is a serial computer bus technology designed as replacement of SCSI and is based on the IEEE 1394 and 1394b standards.
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Product color	Black
LED indicators	HDD, Power, WLAN
Number of fans	1 fan(s)
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Certification	CE, FCC, IC, DLNA

Weight and Dimensions

Depth	144.3 mm
Width	90 mm
Height	193.3 mm
Weight	630 g
