D-Link DNS-343 User Manual
8

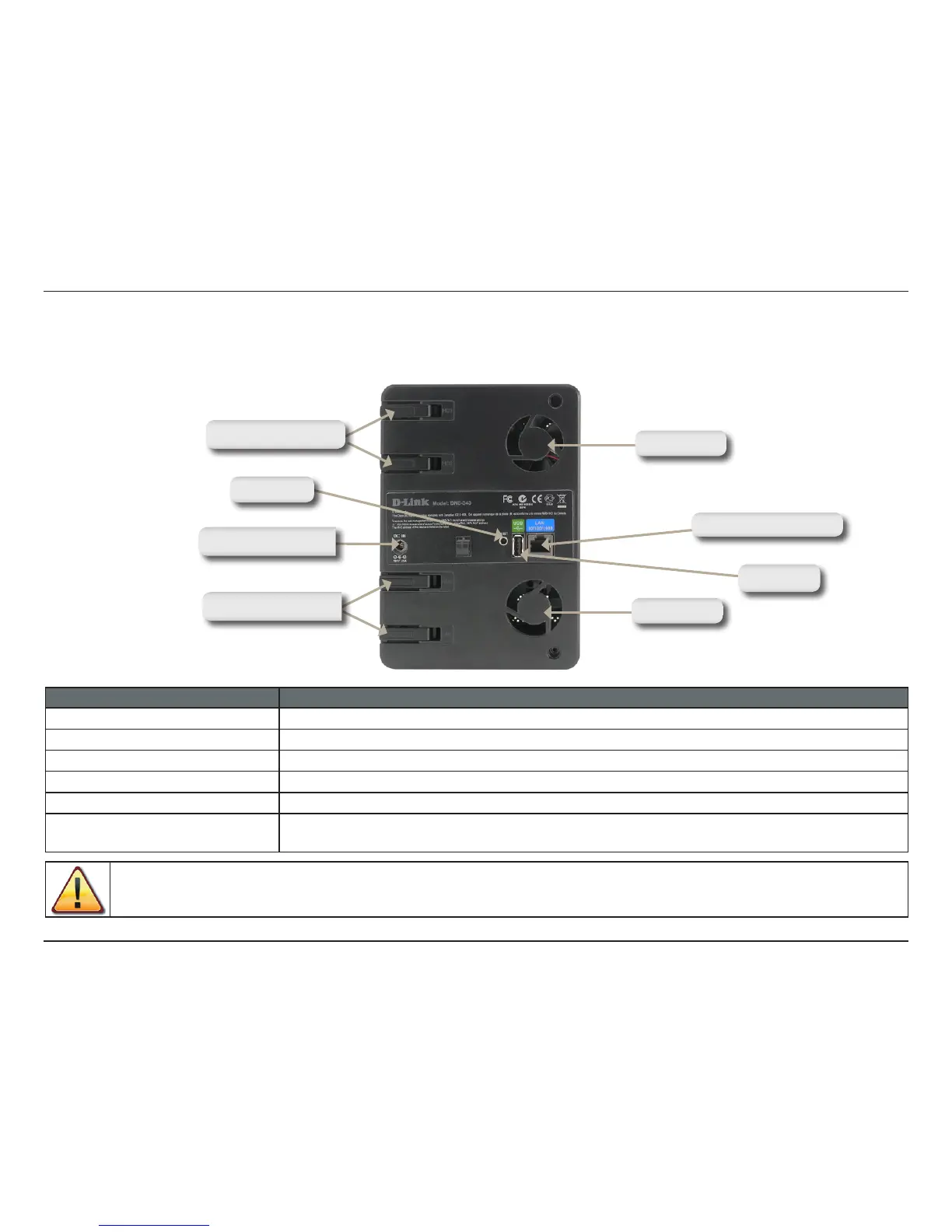

Rear Panel (Connections)
Reset Button
Drive Eject Levers
Drive Eject Levers
Cooling Fan
Gigabit Ethernet Port
Power Receptacle
USB Port
COMPONENT DESCRIPTION
Drive Eject Levers Use the provided levers to eject the SATA hard drives.
Reset Button Press this button for over 5 seconds to reset the unit to factory defaults.
Power Receptacle Connect the 19V / 4.74A power supply to the receptacle.
USB Connector 1 x USB 2.0 (Type A) connector. USB Host port for Print Server or USB UPS monitoring.
Gigabit Ethernet Port Use the Gigabit Ethernet Port to connect the DNS-343 to the local network.
Cooling Fans The cooling fans are used to cool the hard drives and feature speed control. When the unit is first powered on the fans
rotate at a low speed and rotate at a high speed when the temperature rises above 49 °C.
Cooling Fan
Warning:
Only power cords are allowed to be inserted into the EUT socket-outlet, no other direct plug-in equipment.
To Next Page
