Installation

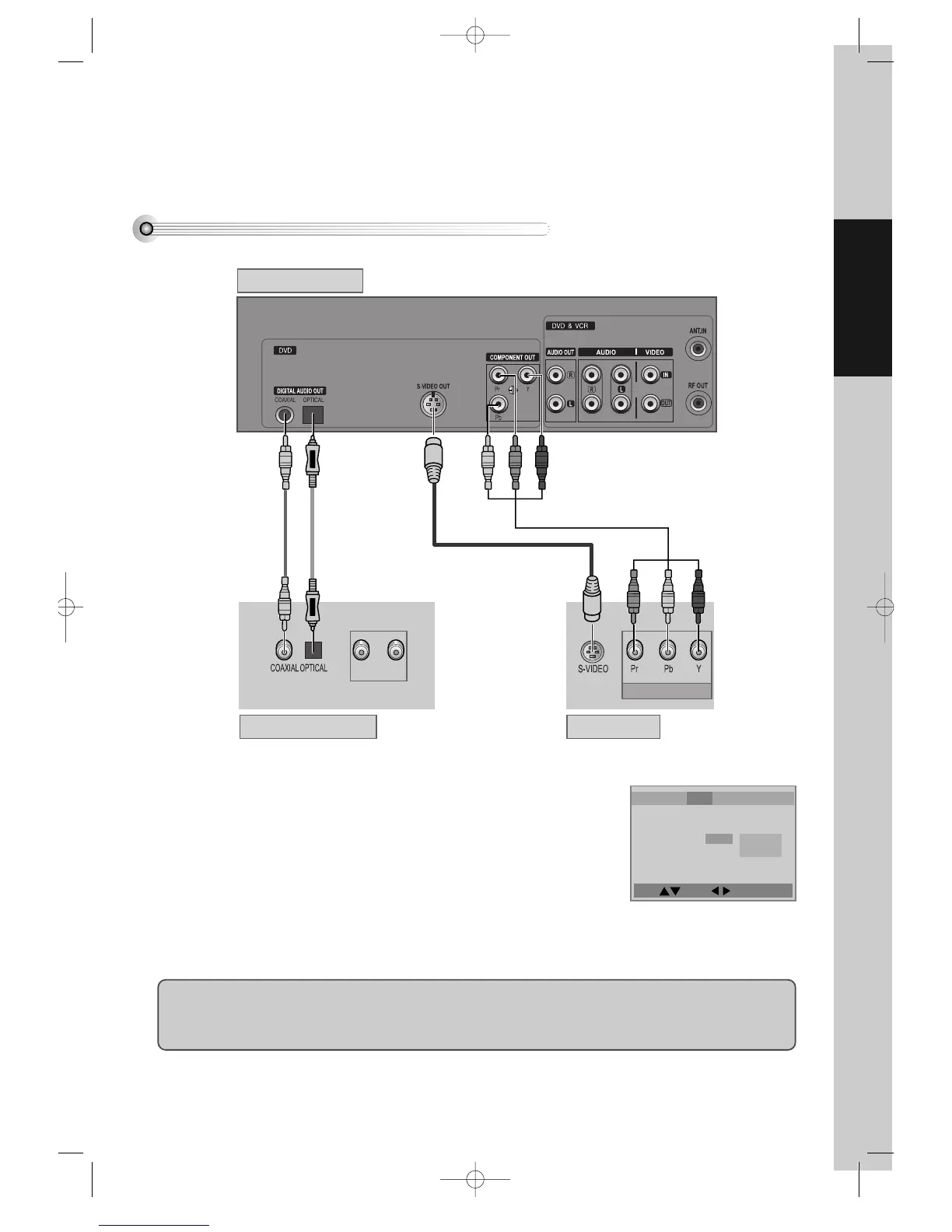

Connecting TV with S-Video/Component Jack, Amp with Digital Audio Out Jack

How to Connect

(L) AUDIO IN (R)

REAR PANEL OF DVD-VIDEO

AMPLIFIER OF DOLBY DIGITAL REAR PANEL OF TV

COMPONENT IN

CONNECTING CABLE

(NOT SUPPORTED)

¡ Select either S-VIDEO IN or COMPONENT IN to connect to TV. You should

select “Video Out” type in DVD SET(see 62P) in advance.

™ Select either COAXIAL or OPTICAL to connect to amp of Dolby Digital.

** If you want to know about “Dolby Digital”, please refer to [About DVD] in

68p.

£ If screen is broken in connecting COMPONENT OUT to Pr, Pb, Y of TV

COMPONENT IN jack , connect to Cr, Cb, Y.

■ Use in S-VIDEO or COMPONENT In jack attached in TV or amp supporting Dolby Digital.

Language

Video

Audio Others

TV Aspect 4:3 PS

TV Type NTSC

Video Out S-Video

Brightness Normal

Sharpness Normal

Component

S-Video

Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories.

DVD-Video(USA)_DV6T811N-LT 02.4.16 2:38 PM ˘`23
