Dahua NVR4108-P User Manual

138
i) Click Copy button to copy current setup to other channel(s).
j) Click OK button to complete motion detect record setup.

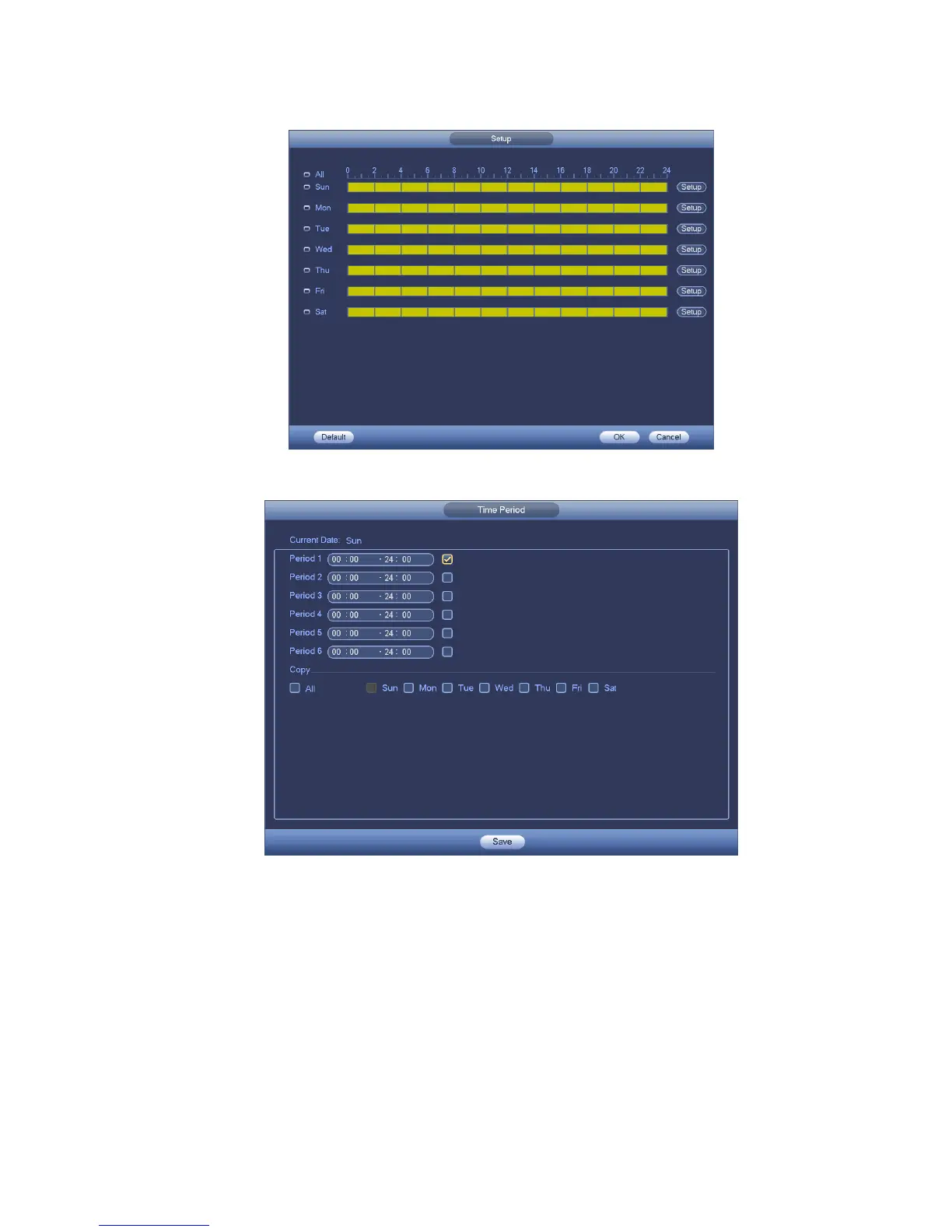

Figure 4-62
Figure 4-63
4.8.3.2 Motion Detect Snapshot
a) From Main menu->Setting->Camera->Encode->Snapshot, you can go to snapshot interface.
See Figure 4-64.
b) In Figure 4-64, select trigger snapshot from the dropdown list and then set picture size, quality
and snapshot frequency. Click OK button to save current setup.
c) From Main menu->Setting->Event->Detect, here you can select motion detect type, motion
detect channel and then check the enable box. Please refer to chapter 4.8.3.1.
d) Click OK button to complete motion detect setup.

Dahua NVR4108-P Specifications

General

Brand	Dahua
Model	NVR4108-P
Category	Network Hardware
Language	English
