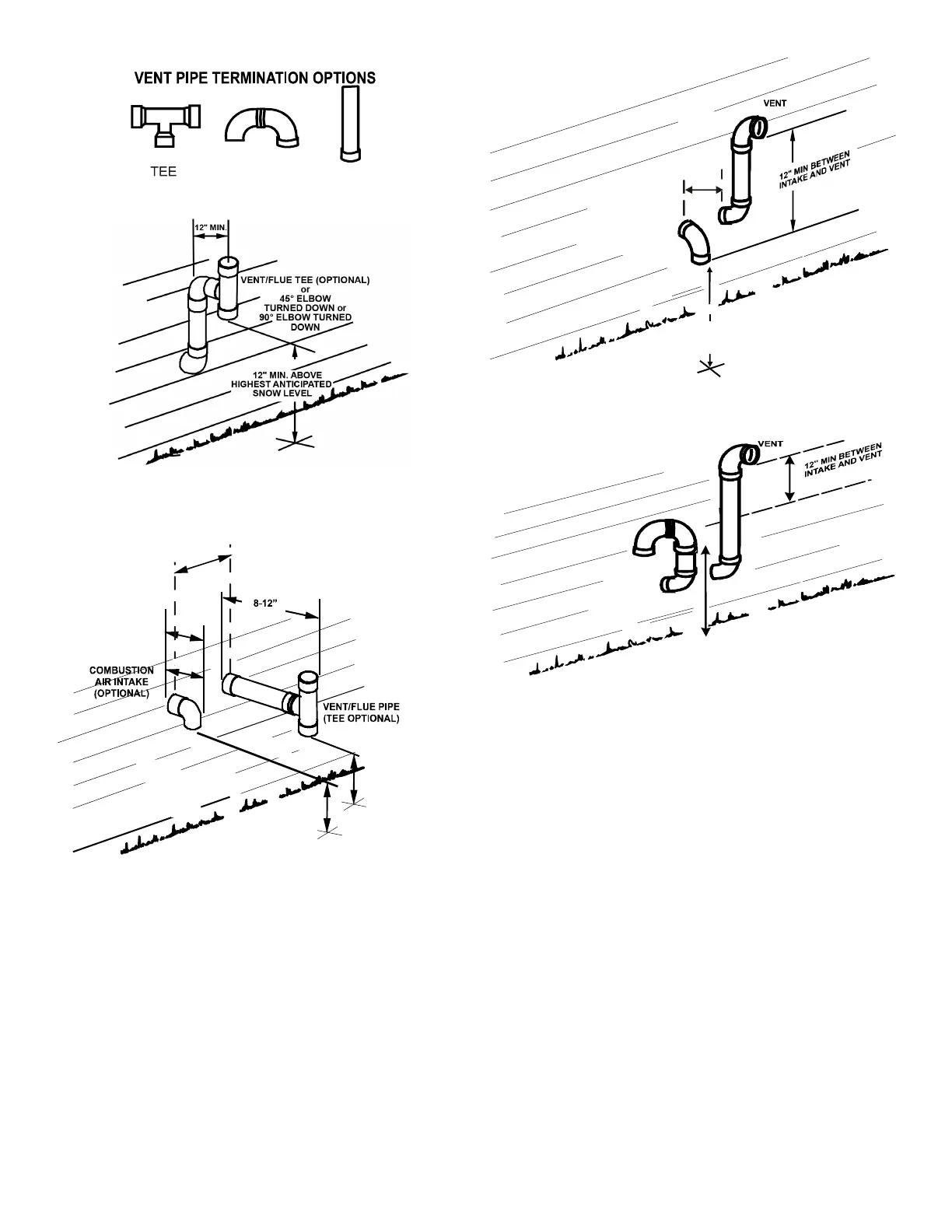

90°
ELBOWS






90°
ELBOWS



3”-24” BETWEEN PIPES








Center to center = 10” min / 24” max.
Vertical separation: 0” - 24”
Vent termination from wall = 8” min / 12” max.
Combustion air intake from wall = 6” max.
Vent and intake clearance to ground or anticipated snow
level = 12” min.
STRAIGHT
ELBOWS





ELBOW



6” MAX




