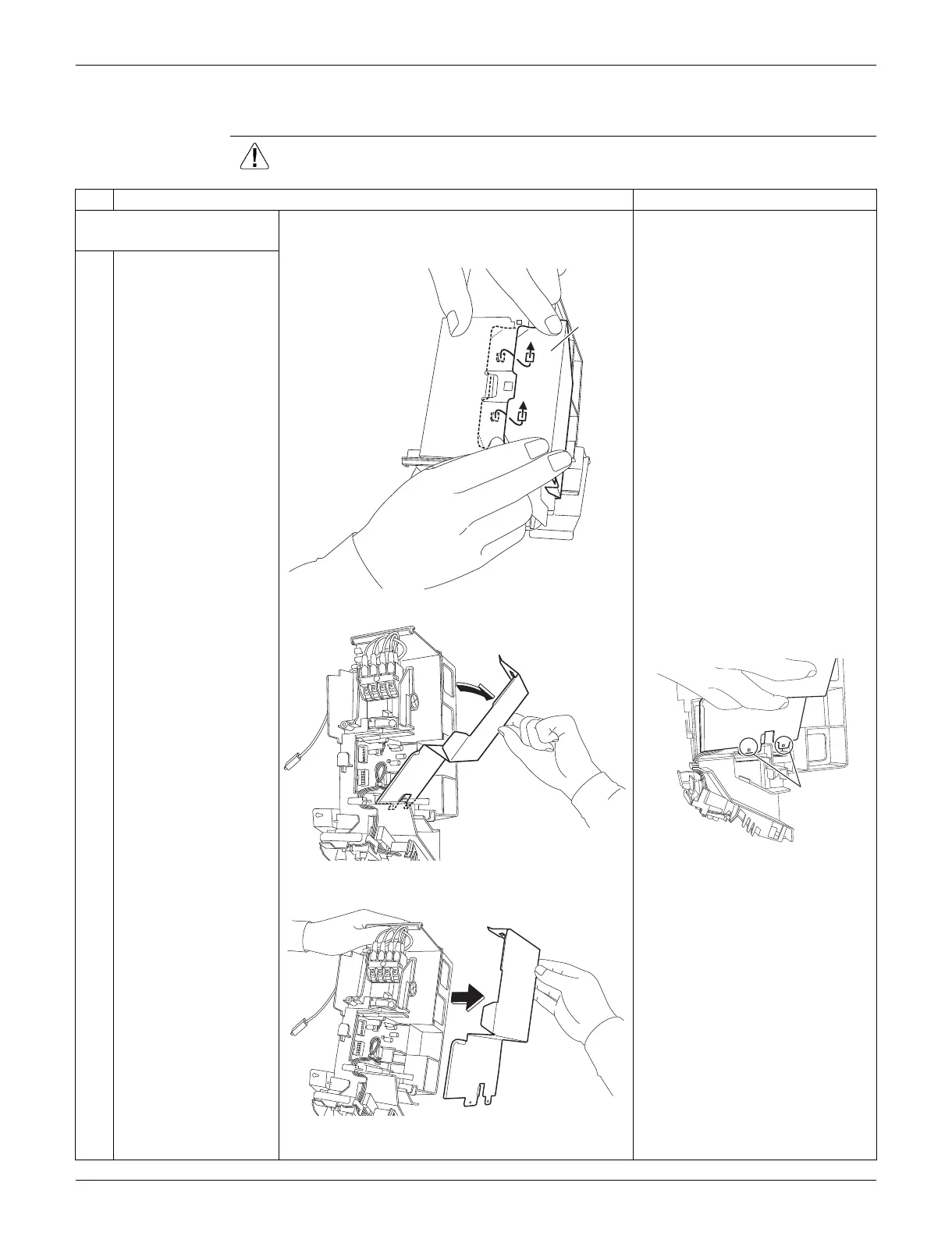

SiUS091133
Indoor Unit: FTXS15/18/24LVJU
Removal Procedure
196
2.4
Removal of PCBs
Procedure
Warning
Be sure to wait for 10 minutes or
more after turning off
all power supplies
before disassembling work.
Step
Procedure
Points
1.
Remove the signal
receiver PCB.
1
Unfasten the hooks of
the shield plate.
Preparation
Remove the electrical box
according to the “Removal of
Electrical Box.”
2
Open the shield plate.
The shield plate has 2 hooks at
the lower part also.
3
Remove the shield
plate.
(R9506)
Shield
plate
(R16283)
(R16498)
Hook
(R16284)
205
207
