Outdoor Uni
t
: RXS24LVJU
SiUS091133
351
Removal Procedure
6.6
Removal of Sound Blankets
Procedure
Warning
Be sure to wait for 10 minutes or
more after turning off
all power supplies
before disassembling work.
Step
Procedure
Points
1
Open the sound blanket
(outer).
2
Remove the sound
blanket (top upper).
The sound blanket is fragile.
Carefully pass the discharge
pipe through it.

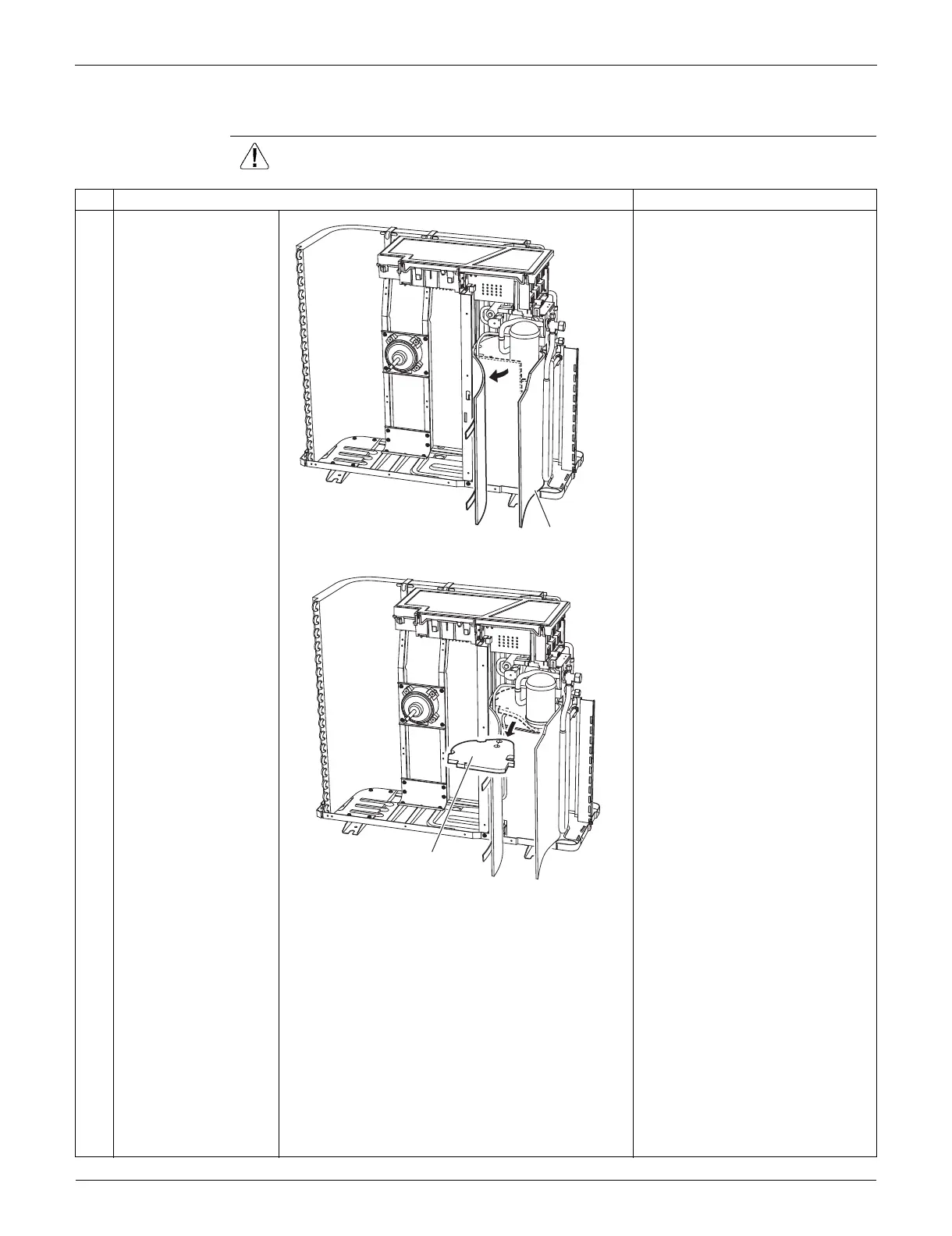

Sound blank
et (outer)
(R16608)
Sound blank
et (top upper)
(R16609)
360
362
