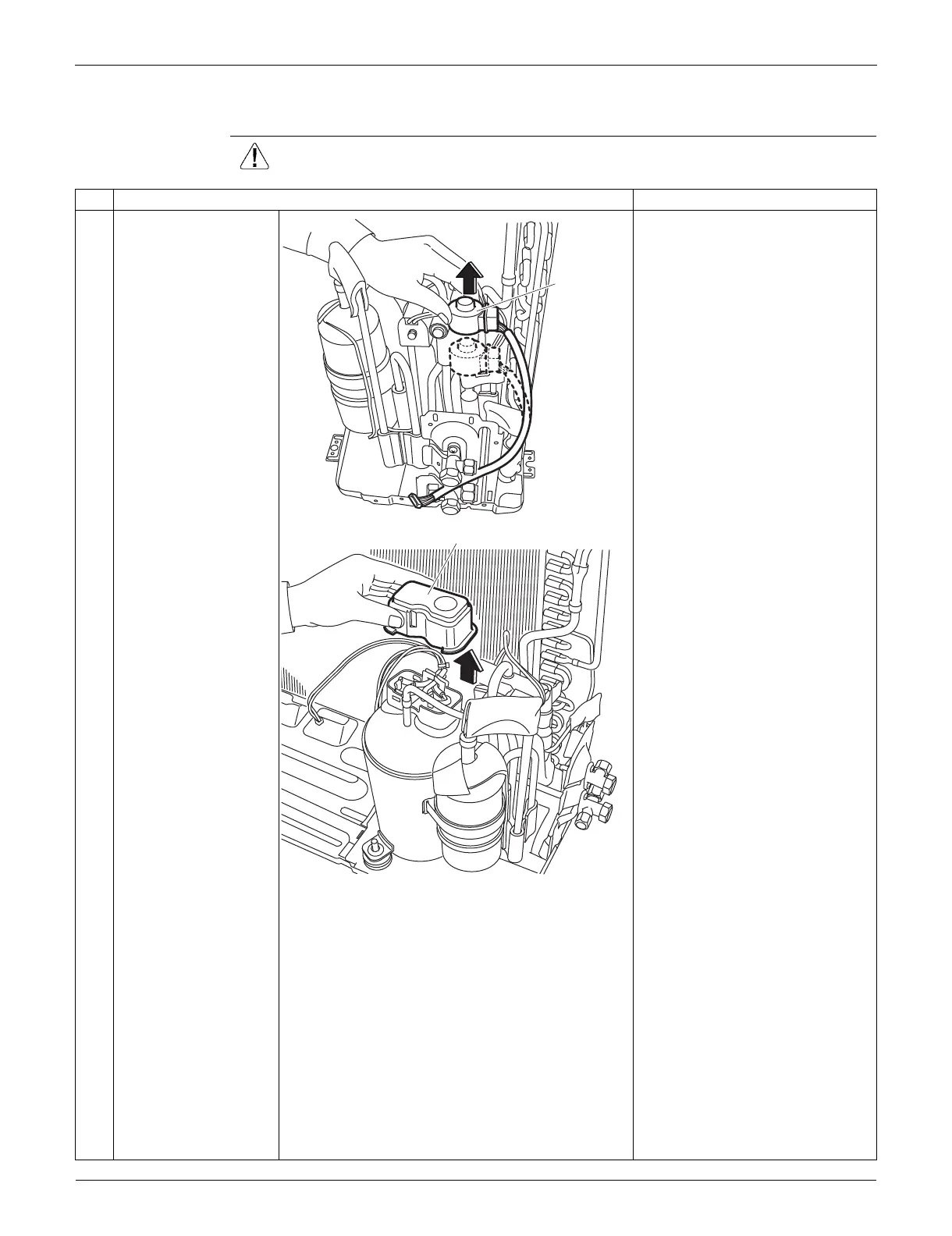

Outdoor Un
it: RXS09/12L
VJU
SiUS091133
285
Removal Procedure
4.6
Removal of Four-Way Valve
Procedure
Warning
Be sure to wait for 10 minutes or
more after turning off
all power supplies
before disassembling work.
Step
Procedure
Points
1
Pull out the electronic
expansion valve coil.
2
Remove the terminal
cover.
Electronic
expansion
valv
e coil
(R7233)
T
er
minal cover
(R7234)
