SiUS091133
Indoor Unit: FTXS30/36L
VJU
Removal Procedure
250
3.6

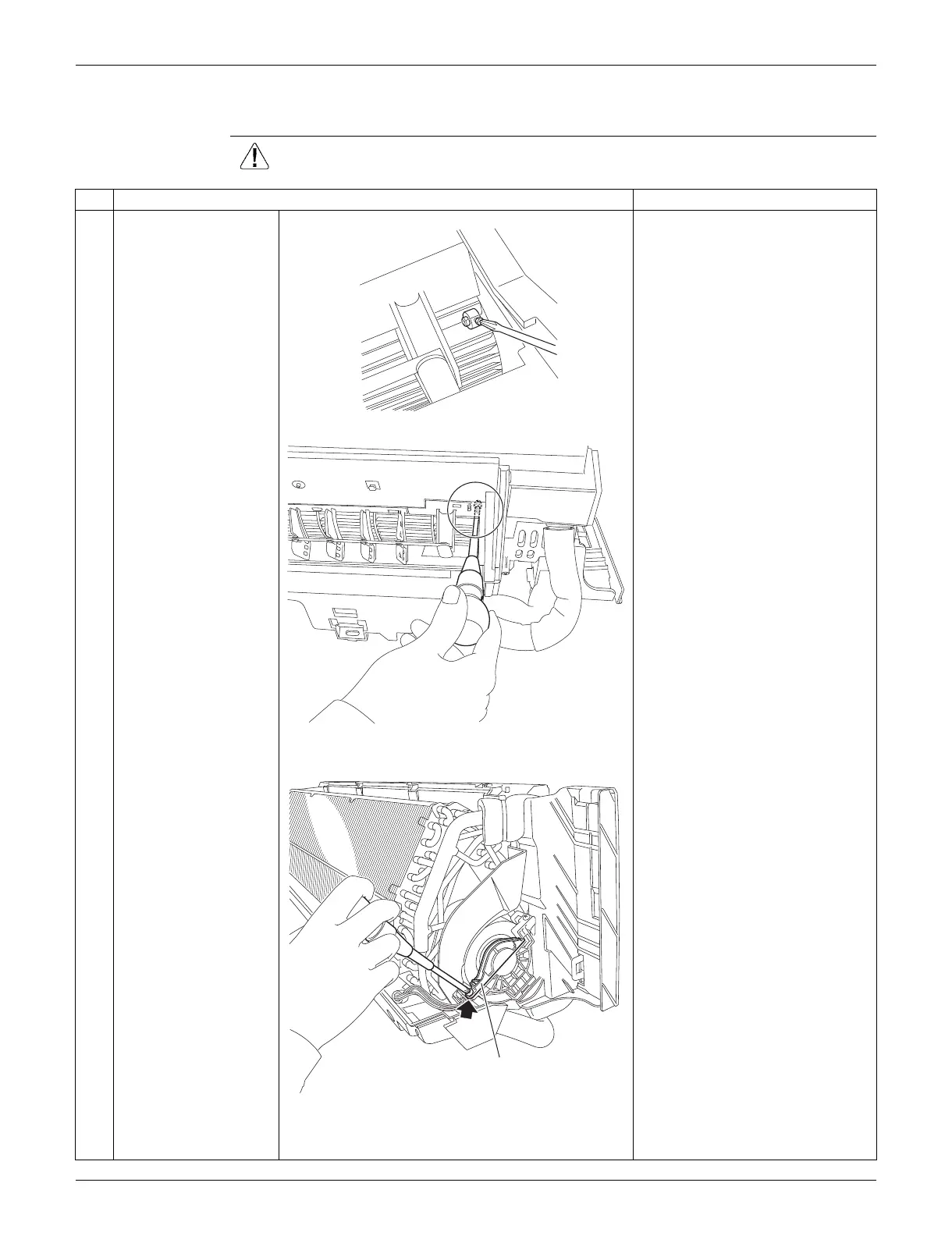

Removal of Fan Motor
Procedure
Warning
Be sure to wait for 10 minutes or
more after turning off
all power supplies
before disassembling work.
Step
Procedure
Points
1
Loosen the screw of the
fan motor from the air
outlet
.
2
Remove the screw of
the fan motor fixing
plate.
(R9559)
(R9560)
F
an motor fixing plate
259
261
