SiUS091133 Outdoor Unit: RXS24LVJU
Removal Procedure 326
6. Outdoor Unit: RXS24LVJU
6.1 Removal of Outer Panels
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points

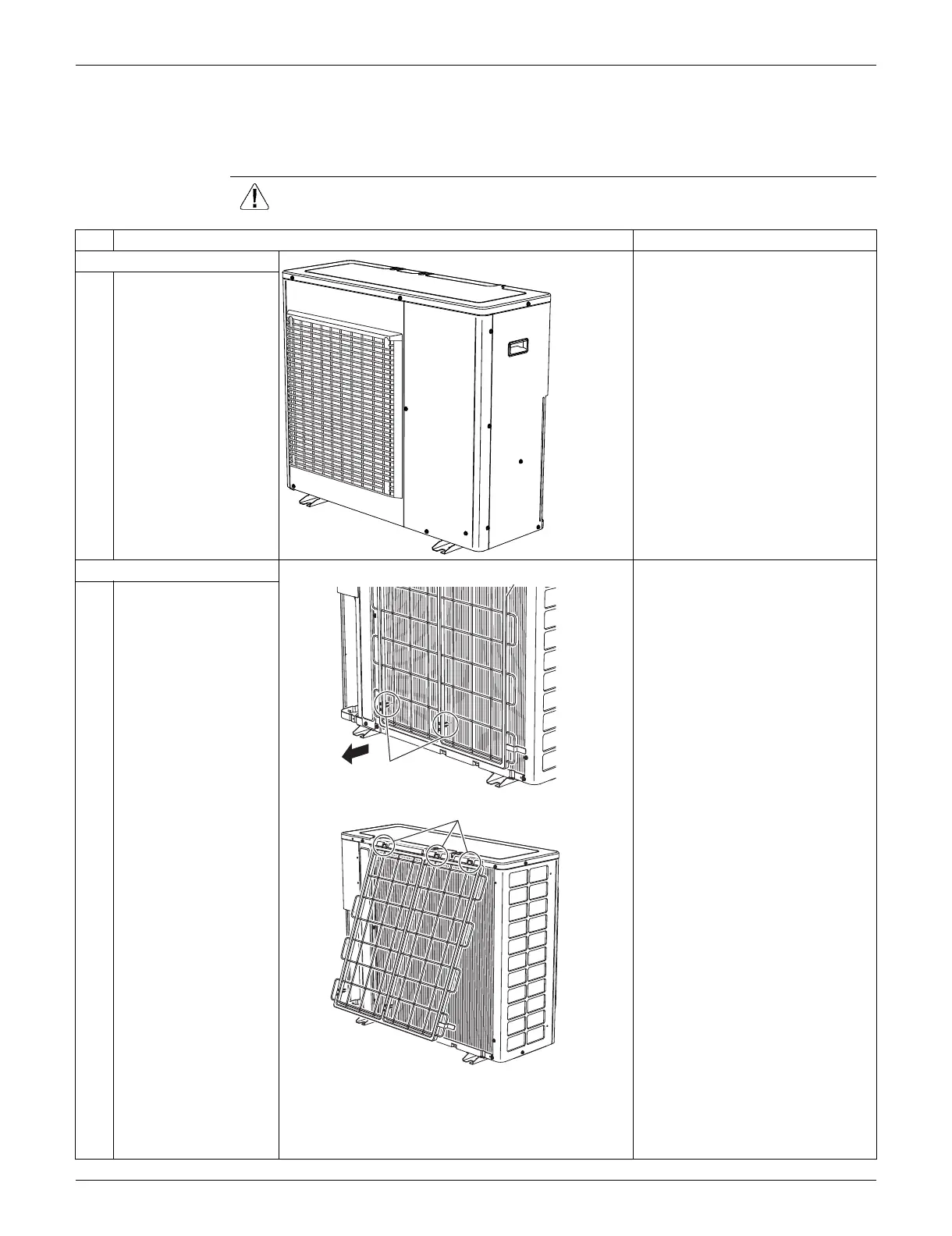

1. Appearance features
2. Remove the suction grille. The hooks are secured in the
clearances of the outdoor heat
exchanger fins.
1
Unfasten the 2 hooks at
the bottom first.
2
Slide the suction grille
downward to unfasten
the 3 top hooks.
Hook
Rear side Suction grille
(R16916)
To Next Page
