Outdoor Unit: RXS24LVJU SiUS091133
347 Removal Procedure

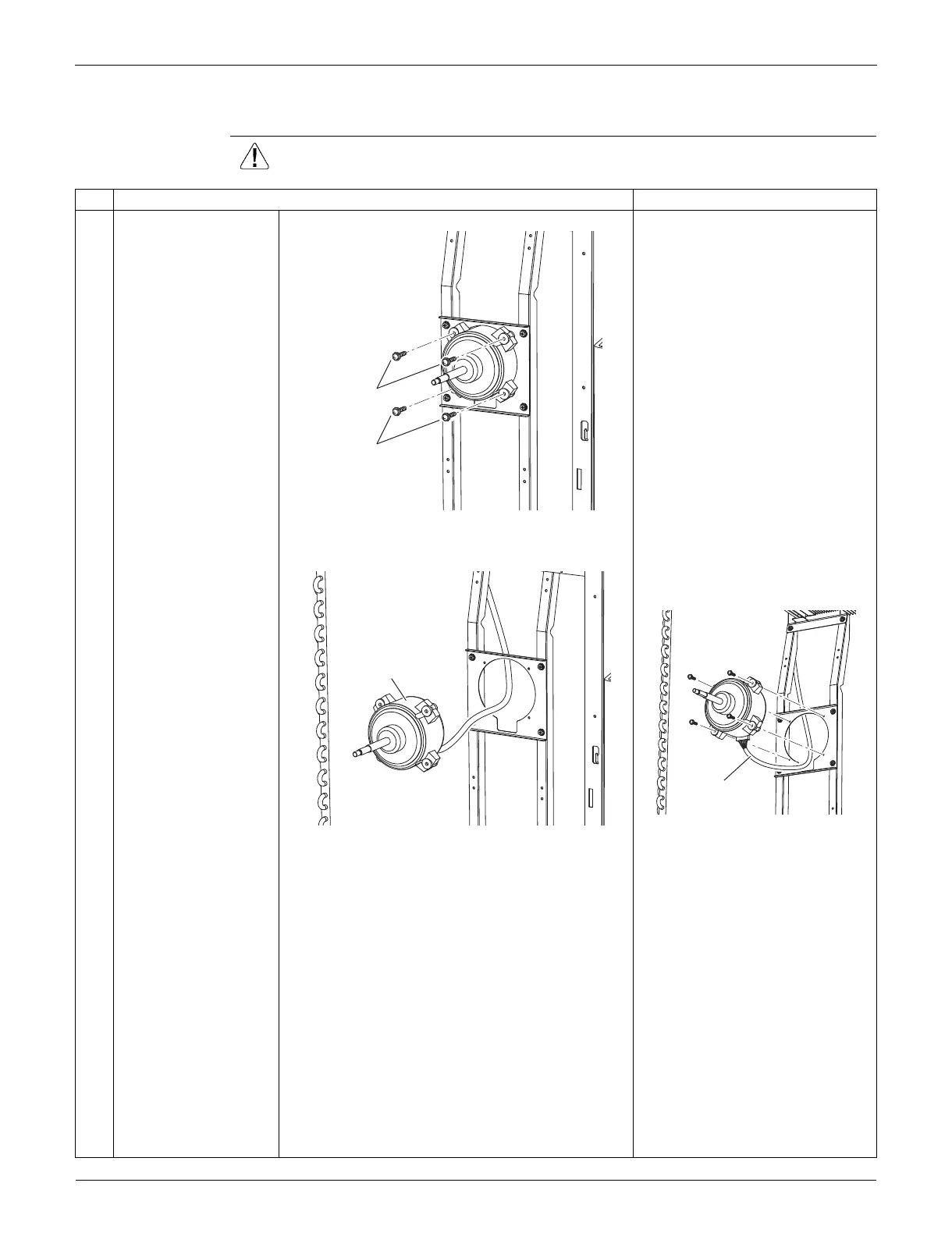

6.4 Removal of Fan Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
2
Remove the 2 lower
screws first.
Then, remove the 2
upper screws.
Preparation
Remove the electrical box
according to the "Removal of
Electrical Box".
Be sure to remove the lower
screws first. If the top screws
are removed first, the fan motor
may tilt down or fall and cause
injury because its center of
gravity is shifted to the front.
3 Remove the fan motor. When reassembling, make sure
that the wire harness is facing
downward.
To Next Page
