Indoor Unit Control (RA Models) SiBE18-821_C
112 Function
7.11 2-Area INTELLIGENT EYE Operation
Outline Wall Mounted Type G-Series 20-50 Class
The following functions can be performed by a motion sensor (INTELLIGENT EYE).
1. Reduction of the capacity when there is nobody in the room in order to save electricity
(energy saving operation)
2. Dividing the room into plural areas and detecting existence of humans in each area. Moving
the airflow direction to the area with no human automatically to avoid direct airflow on
humans.

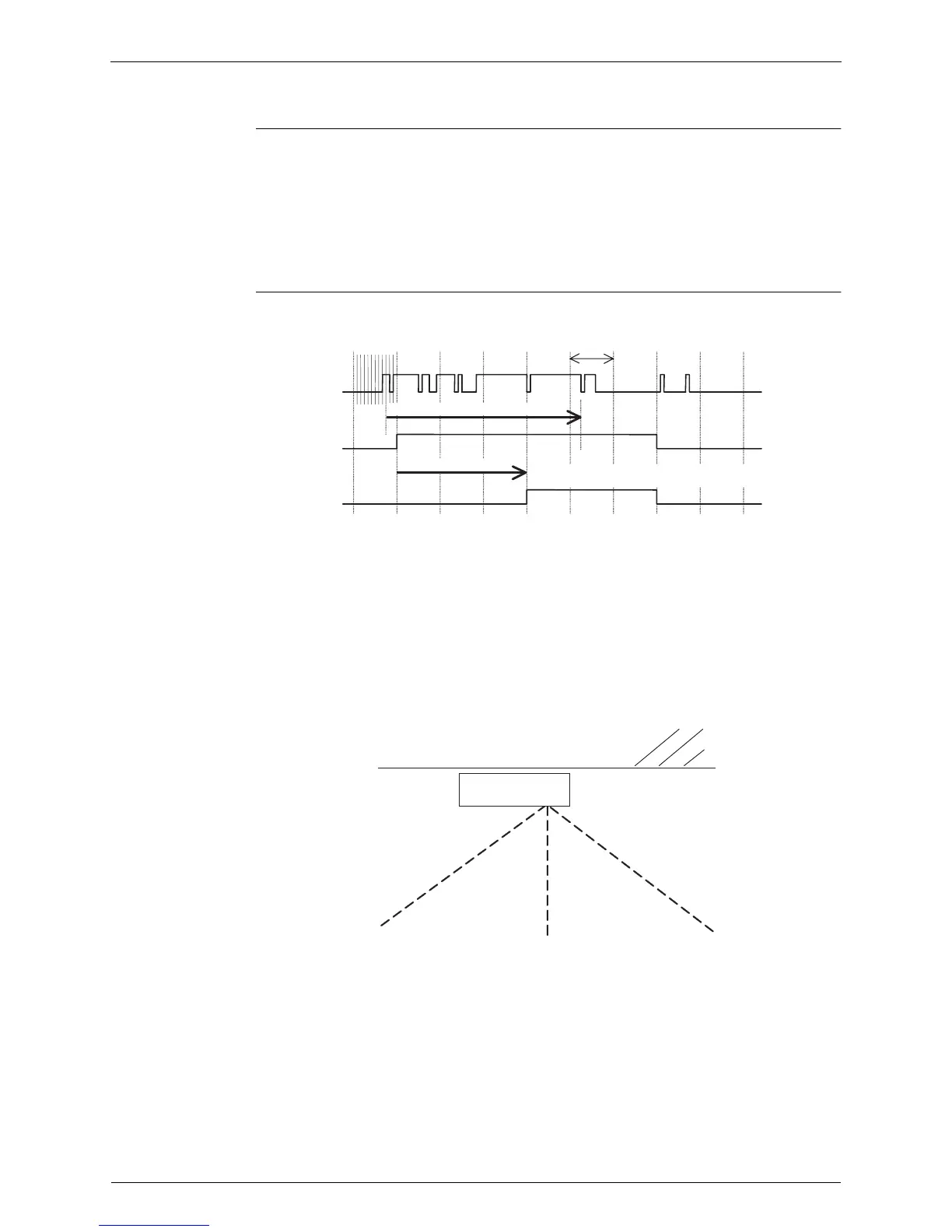

Detail 1. Detection method of INTELLIGENT EYE
îš„
This sensor detects human motion by receiving infrared rays and displays the pulse wave
output.
îš„
The microcomputer in the indoor unit carries out a sampling every 20 msec. and if it detects
10 cycles of the wave in one second in total (corresponding to 20 msec. × 10 = 200 msec.),
and when the ON signal continues 3 sec., it judges human is in the room as the motion
signal is ON
îš„
2-area INTELLIGENT EYE sensor is divided into 2 areas and detects humans in each area.
îš„
Image of 2-area INTELLIGENT EYE
1 sec.
sampling (20 msec.)
High
Low
ON
OFF
Sensor output
(Human motion)
ON
OFF
(R12757)
(Condition of 10 times or more output)
(Continue 3 sec.)
If the sensor detects the outputs 10 times/sec.
or more, it judges humans exist.
If the detection signal (ON) continues 3 sec. or more,
it judges humans exist.
Detection signal
from the sensor
Human detection
signal
Top view
(R12276)
Indoor unit
Wall
Area AArea B
· A microcomputer judges human existence by
the sensor signal from each area A and B.
To Next Page
