20.3.3 Example: Automatic mode during cooling
A
B
E
100%
50%
T
e
C
D
3°C
6°C
35°C
F

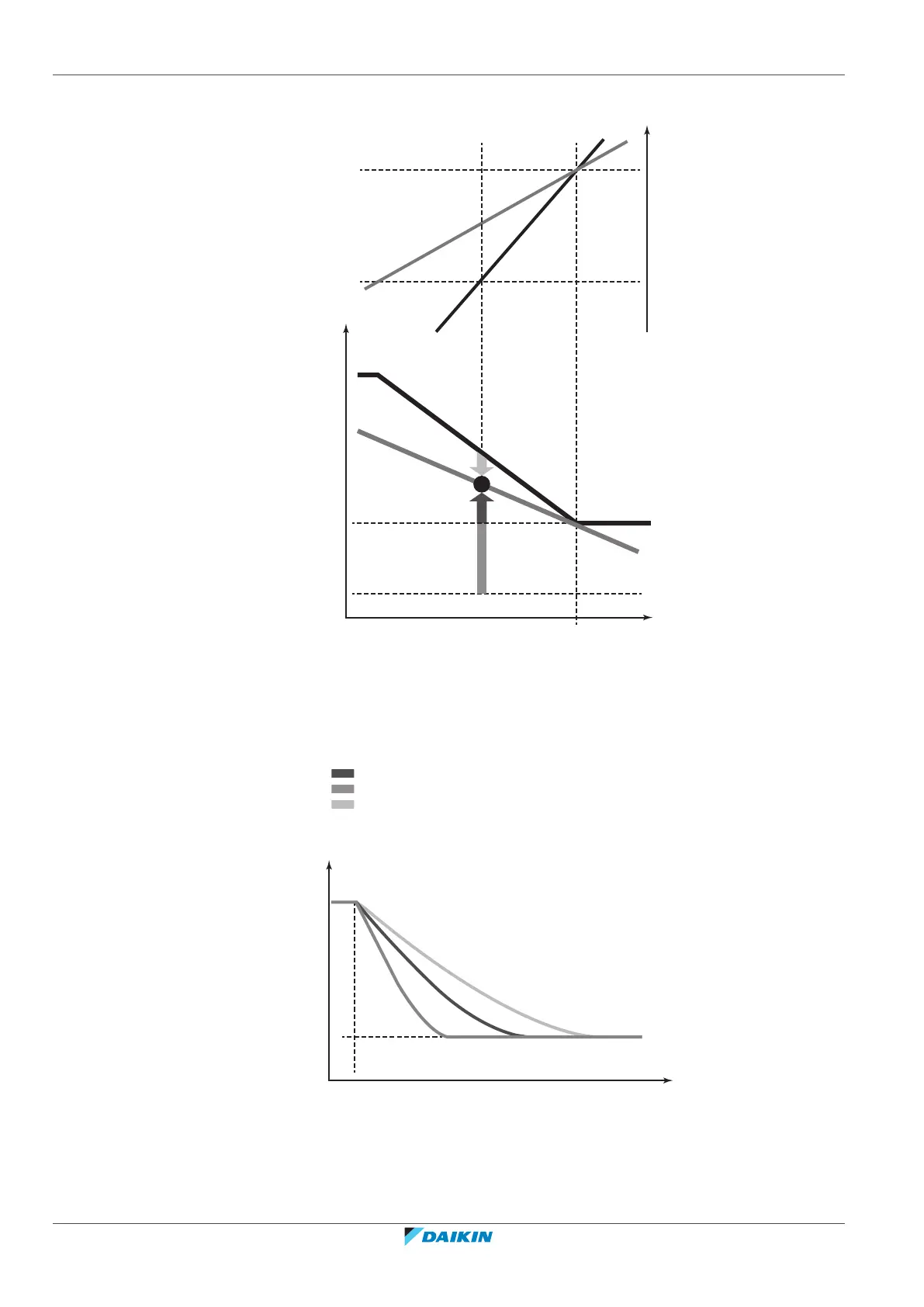

A Actual load curve
B Virtual load curve (initial capacity automatic mode)
C Virtual target value (initial evaporation temperature value automatic mode)
D Required evaporation temperature value
E Load factor
F Outside air temperature
T
e
Evaporating temperature
Quick
Powerful
Mild
Room temperature evolution:
A
B C
D
E
F
A Indoor unit set temperature
B Operation start
C Operating time
D Mild
E Quick
F Powerful

Daikin VRV IV Specifications

General

Type	Variable Refrigerant Volume (VRV)
Series	VRV IV
Refrigerant	R410A
Energy Efficiency	High
Operating Temperature Range (Cooling)	-5°C to 46°C
Operating Temperature Range (Heating)	-20°C to 15.5°C
Installation	Professional installation required
Control	Centralized control system
Indoor Unit Options	Various types including ceiling cassette, wall-mounted, ducted, and floor-standing
Power Supply	380-415V, 3-phase, 50Hz
