SL-Series rigging components
3.3.2 Load beam instruction labels
Two instruction labels are located at the bottom strand of the load
beams, indicating the hole positions for:
Z5702 GSL Load beam instruction labels
Z5723 KSL Load beam instruction labels
Pos. Description
[3a/b] Hole positions for the two rigging modes:
▪ Hole pair [3a] for STANDARD MODE.
▪ Hole pair [3b] for FRONT EXTENSION.
[4] Hole position for the additional Rear link adapter
for the deployment of SL-SUB cabinets.
[5] Hole position for the cable pick providing a 21 mm
(0.8") hole for the attachment of the Z5713 SL
Cable pick or a standard 3.25 t shackle.
[6] Hole position for the attachment of the Z5709 SL
Compression chain.
Pos. Description
[3a/b] Hole positions for the two rigging modes:
▪ Hole pair [3a] for STANDARD MODE.
▪ Hole pair [3b] for FRONT EXTENSION.
[4a/b] Hole position for the cable pick providing a 21 mm
(0.8") hole for the attachment of the Z5713 SL
Cable pick or a standard 3.25 t shackle.
[5] Hole position for the additional Rear link adapter
for the deployment of KSL-SUB cabinets.
[6] Hole position for the attachment of the Z5709 SL
Compression chain.

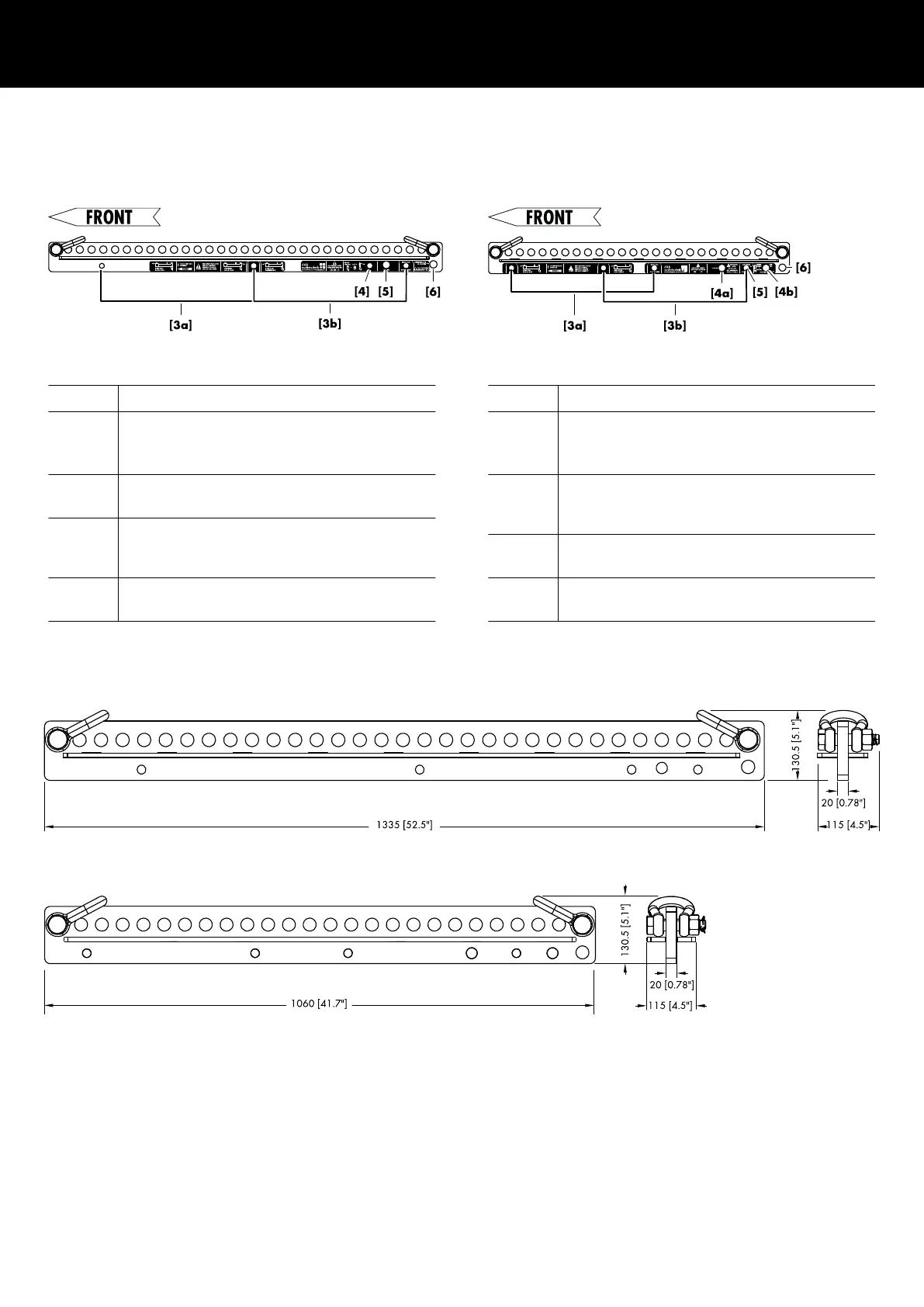

3.3.3 Dimensional drawings
Z5702 GSL Load beam dimensions in mm [inch]
Z5723 KSL Load beam dimensions in mm [inch]
