SL-Series array assembly - Preassembly
5.1.3 Connecting the d&b ArraySight sender unit
WARNING!
Potential risk of personal injury.
Please observe the safety instructions provided in the ArraySight
manual.
Þ
Connect the ArraySight sender unit using the enclosed d&b
K6006.200.00 CAT5e 1:1 cable ([8b]) and perform a basic
test of the laser unit.

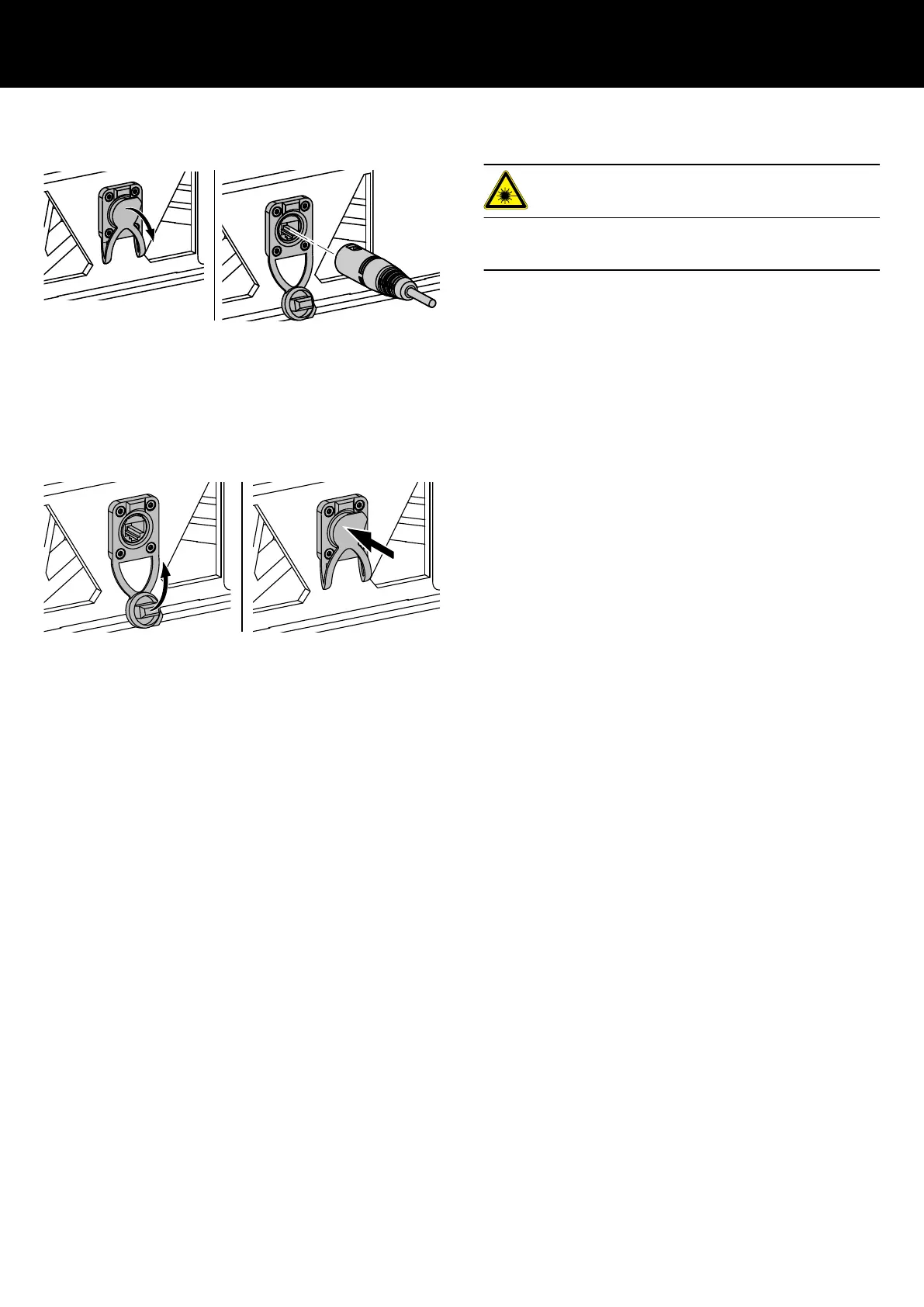

For this purpose, the SL-Series flying frames are equipped with
a dedicated etherCON connector socket which is directly
accessible on the frame to allow for easy connection, as
shown in the graphic opposite.
↳
For detailed information on the d&b ArraySight laser
inclinometer system, please refer to the ArraySight manual
which is also provided with the SL-Series flying frames.
To prevent corrosion of the etherCON connector socket's spring
contacts, always make sure to properly attach (close) the
connector socket's dust cap during transport or when it is not in
use.
