SL-Series ground stacks
10.1.2 E7494 SL Outriggers
In connection with SL-Series ground stacks consisting of GSL8/
GSL12 or KSL8/KSL12 cabinets, the E7494 SL Outriggers are
used to provide an adequate and stable ground support. Two rods
with winder are provided to adjust the vertical inclination of the
entire ground stack.
For this purpose, the corresponding touring carts are equipped
with corresponding slots at the bottom of each corner.
Once the stack is placed in its operating position, the outriggers
have to be attached to the cart.
Extension length
Each outrig pole is provided with hole pairs positioned at specific
distances to allow for two different extension lengths of the poles.
This provides more flexibility on-site.

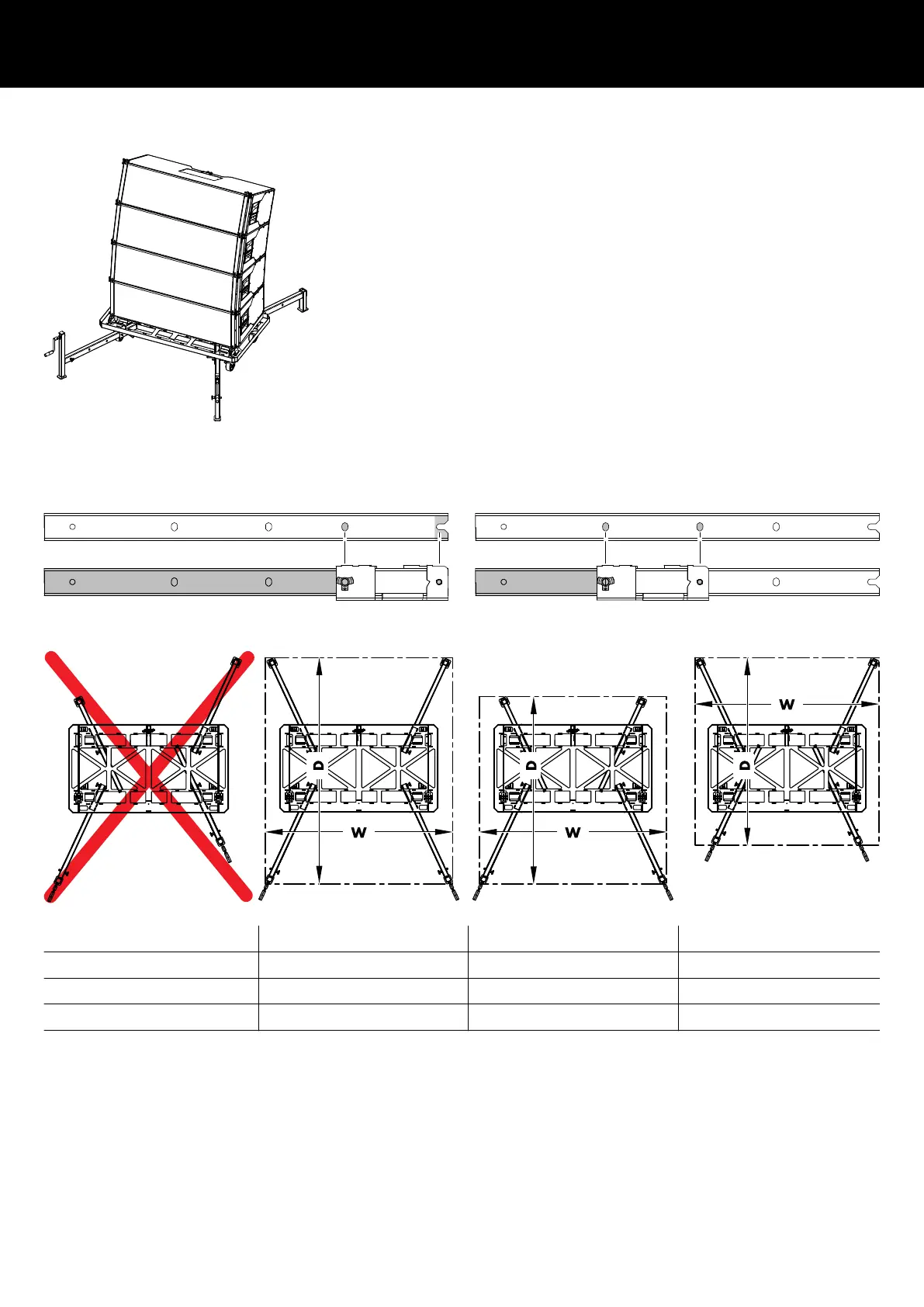

Footprints* (dimensions)
Full size (W x D) Front extension (W x D) Rear extension (W x D)
E7490 GSL Touring cart 1.7 x 2 m / 5.6 x 6.6 ft 1.7 x 1.7 m / 5.6 x 5.6 ft 1.7 x 1.7 m / 5.6 x 5.6 ft
E7495 KSL Touring cart - Tension 1.4 x 2 m / 4.6 x 6.6 ft 1.3 x 1.7 m / 4.3 x 5.6 ft 1.3 x 1.7 m / 4.3 x 5.6 ft
E7802 KSL Touring cart 1.4 x 1.85 m / 4.6 x 6 ft Not applicable Not applicable
*Graphics shown without loudspeaker cabinets for better illustration
d&b SL-Series Rigging manual 1.10 en 69
