d&b audiotechnik SL Series Rigging Manual

SL-Series rigging components

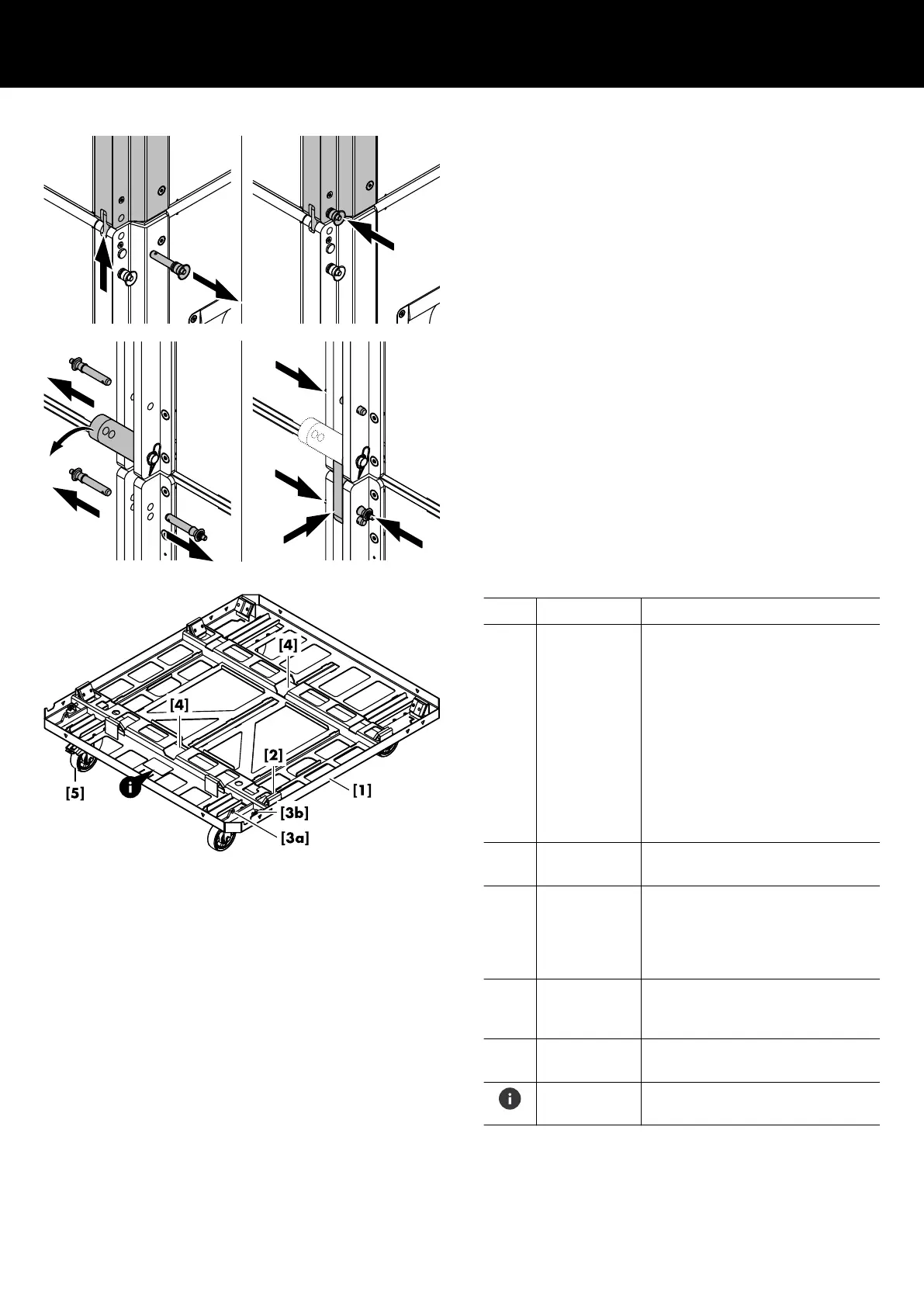

3. Extend the Front links of the bottom cabinet on both sides.
4. Reinsert the Locking pins on both sides and ensure they are
fully inserted and locked.
5. On the rear rigging strand, release the corresponding Locking
pins on the top and bottom cabinets.
6. Fold the rear link into the rigging strand of the bottom cabinet.
7. Reinsert all Locking pins and ensure they are fully inserted and
locked.
8. For the third cabinet, proceed in the same manner.
3.16.3 E7804 Touring cart KSL-SUB
Pos.
Component Description
[1] E7804 Touring cart 3 x KSL-SUB
Dead weight: 45 kg (100 lb).
Total weight: 291 kg (642 lb),
3 x SUB cabinet.
Total weight: 380 kg (840 lb),
incl. flying frame, load beam and
adapter frame.
Dimensions:
H x W x D (cm) 185 x 120 x 110
H x W x D (inch) 73 x 47.5 x 43.5
[2] Eight guide lugs at the front, left/right
and rear of the cart.
[3a]/
[3b]
Dedicated supports at the front left
and right [3a] and corresponding
Locking pins [3b] (Type C, 10 x
35 mm) to fix the Z5747 KSL-SUB
Adapter frame when stored in the cart.
[4]
Two slots acting as guide rails
allowing the Z5747 KSL-SUB Adapter
frame to be stored in the cart.
[5] Four heavy duty wheels (two cross
mounted brake wheels) 125 x 40 mm.
Touring cart instruction label providing
vital safety and rigging instructions.
d&b SL-Series Rigging manual 1.10 en40
