Fundamentals of the SyncPos program
■■
■■
■ Requirements
SyncPos is for use on standard PC’s with operating
systems Windows 95. We recommend using a 486
computer (or higher) with at least 8 MB RAM main
memory.
You should be familiar with the basic functions and
terminology of the Microsoft Windows interface, for
example the
TT
TT
T
ask barask bar
ask barask bar
ask bar and the
ExplorExplor
ExplorExplor
Explor
erer
erer
er. You can
find further information in the corresponding
Windows manuals if necessary.
■■
■■
■ The SyncPos Window

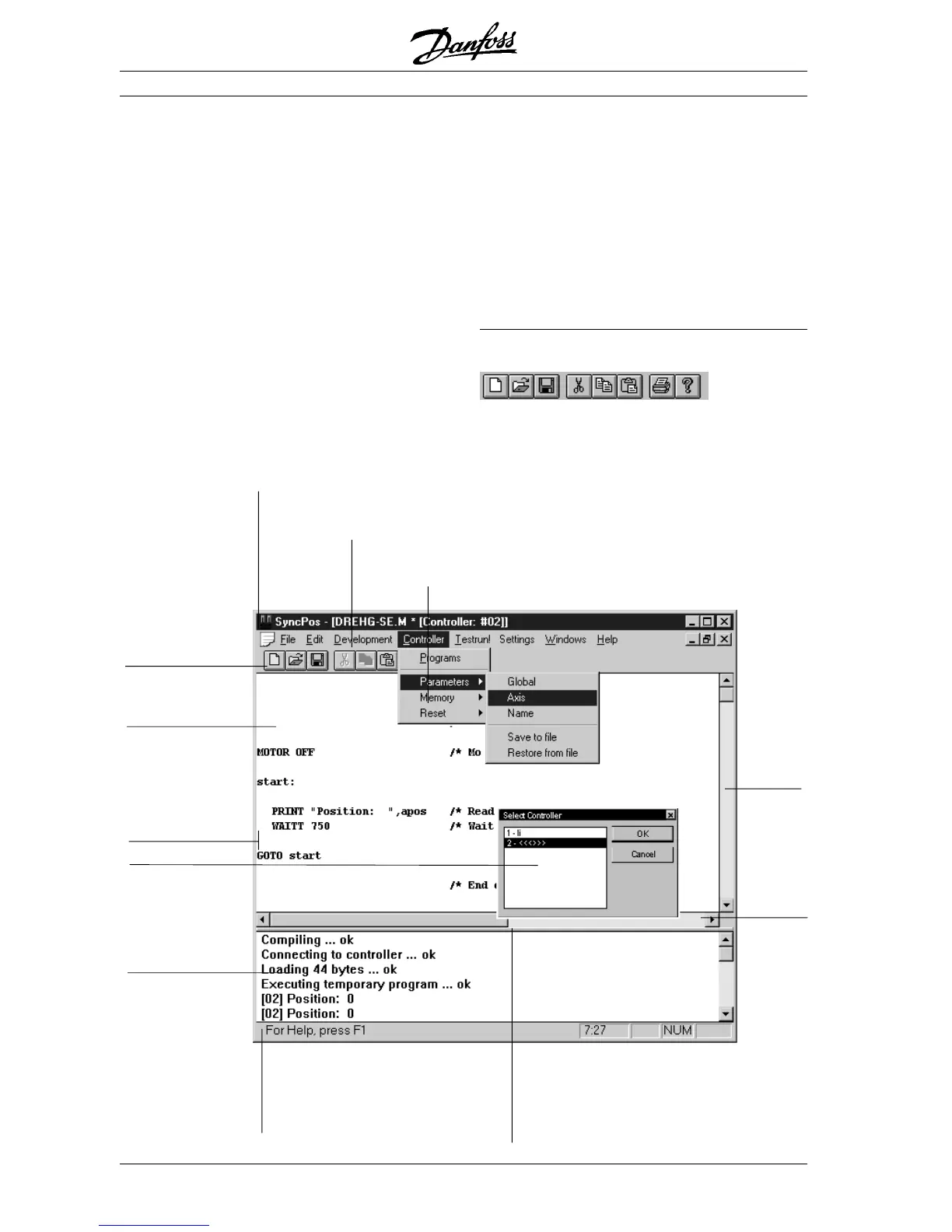

The following figure serves to explain the most
important elements of the SyncPos Windows.
Each window represents a SyncPos program which
can be connected with a VLT. Thus, you can open
at least the same number of edit windows as the
number of controllers resp. VLTs you have
selected.
Symbol bar
Click on the icons in the symbol bar to quickly
select a function.
From left to right: New file, Open file, Save file, Cut,
Copy, Paste, Print and Info.
.
Title bar shows the names of the SyncPos File, the number and name of the VLT
and the error number if applicable.
Open the menus in the Menu bar to select the SyncPos functions.
Menus with the functions which you can mark and select with
the mouse.
Click on the icon in the
Symbol bar to quickly
select a function.
Edit window
The blinking cursor
shows where the text
to be entered will
appear.
Dialog field
Communications win-
dow for messages
from the controller and
the compiler.
If you want to change the size of the Edit window or
the Communications window, move the cursor to the
lower edge of the scrollbar and – as soon as the cur-
sor has changed its shape – click and pull the window
in the desired direction.
Use the Scroll
Bar to scroll
the file up or
down
or left from
left to right.
The status bar shows the line number and
position where the cursor is located, infor-
mation about the function keys and
whether the [NUM lock key] or the [Shift
lock key] have been pressed and are ac-
tive.
