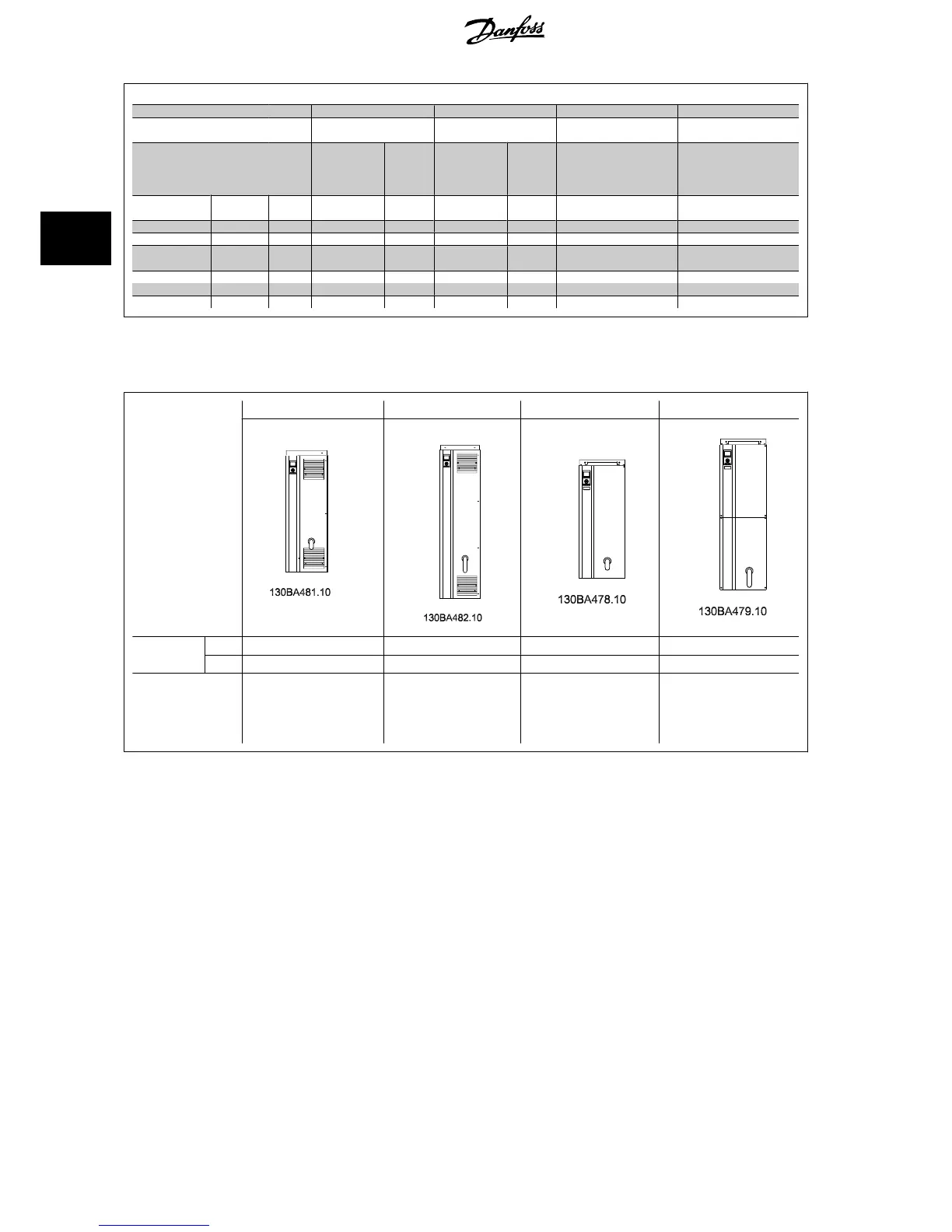

Mechanical dimensions , Frame size D
Frame Size D1 D2 D3 D4
110 - 132 kW at 400 V
(380 - 480 V)
160 - 250 kW at 400 V
(380 - 480 V)
110 - 132 kW at 400 V
(380 - 480 V)
160 - 250 kW at 400 V
(380 - 480 V)
IP
NEMA
21
Type 1
54
Type 12
21
Type 1
54
Type 12
00
Chassis
00
Chassis
Shipping di-
mensions
Height
650 mm 650 mm 650 mm 650 mm 650 mm 650 mm
Width 1730 mm 1730 mm 1730 mm 1730 mm 1220 mm 1490 mm
Depth 570 mm 570 mm 570 mm 570 mm 570 mm 570 mm
Drive dimen-
sions
Height 1209 mm 1209 mm 1589 mm 1589 mm 1046 mm 1327 mm
Width 420 mm 420 mm 420 mm 420 mm 408 mm 408 mm
Depth 380 mm 380 mm 380 mm 380 mm 375 mm 375 mm
Max weight 104 kg 104 kg 151 kg 151 kg 91 kg 138 kg
3.2.6 Rated Power
Frame size D1 D2 D3 D4
Enclosure
protection
IP 21/54 21/54 00 00
NEMA Type 1/ Type 12 Type 1/ Type 12 Chassis Chassis
Normal overload
rated power - 110%
overload torque
110 - 132 kW at 400 V
(380 - 480 V)
45 - 160 kW at 690 V
(525-690 V)
150 - 250 kW at 400 V
(380 - 480 V)
200 - 400 kW at 690 V
(525-690 V)
110 - 132 kW at 400 V
(380 - 480 V)
45 - 160 kW at 690 V
(525-690 V)
150 - 250 kW at 400 V
(380 - 480 V)
200 - 400 kW at 690 V
(525-690 V)
3 Mechanical Installation ADAP-KOOL
®
Drive AKD 102 High Power
18 MG.11.O1.02 - ADAP-KOOL
®
is a registered Danfoss trademark
3
