6.1.5 Parameter Selection
In the Main Menu mode, the parameters are divided into groups. Select
a parameter group by means of the navigation keys.
The following parameter groups are accessible:
Group no. Parameter group:
0 Operation/Display
1Load/Motor
2 Brakes
3 References/Ramps
4 Limits/Warnings
5Digital In/Out
6 Analog In/Out
8 Comm. and Options
11 AKD Lon*
13 Smart Logic
14 Special Functions
15 Drive Information
16 Data Readouts
18 Info & Readouts
20 Internal Control
21 Extended PID
22 Application Functions
23 Time-based Functions
25 Pack Controller
26 Analog I/O Option MCB 109**
28 Compressor functions
* Only when MCA 107 AKLon is installed
**Only when MCB 109 is installed
Table 6.3: Parameter groups.
After selecting a parameter group, choose a parameter by means of the
navigation keys.
The middle section on the GLCP display shows the parameter number and
name as well as the selected parameter value.
1

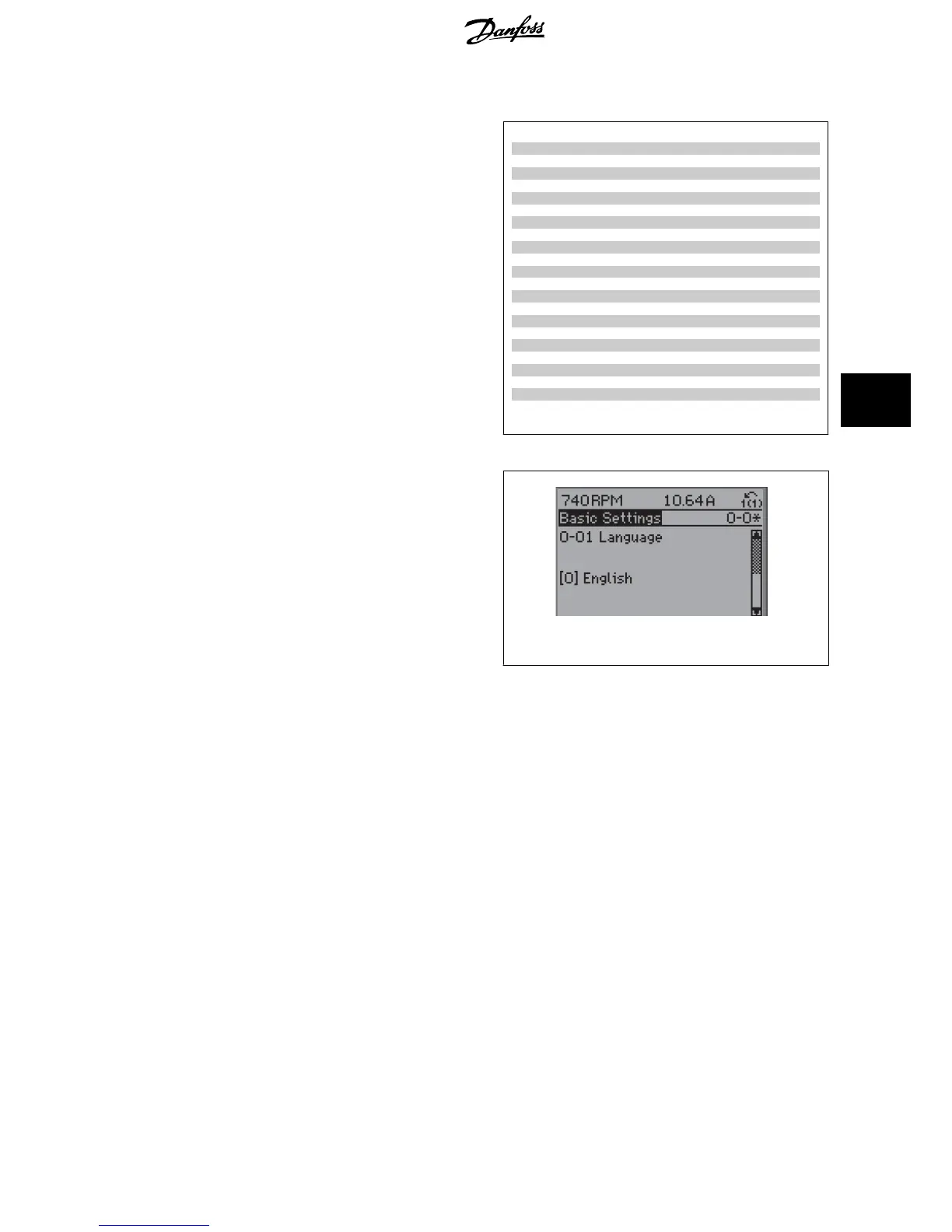

Illustration 6.10: Display example.
6.1.6 Changing data
1. Press [Quick Menu] or [Main Menu] key.
2.
Use [
▲
] and [
▼
] keys keys to find parameter group to edit.
3. Press [OK] key.
4.
Use [
▲
] and [
▼
] keys to find parameter to edit.
5. Press [OK] key.
6.
Use [
▲
] and [
▼
] keys to select correct parameter setting. Or, to move to digits within a number, use keys. Cursor indicates digit selected to
change. [
▲
] key increases the value, [
▼
] key decreases the value.
7. Press [Cancel] key to disregard change, or press [OK] key to accept change and enter new setting.
6.1.7 Changing a text value
If the selected parameter is a text value, change the text value by means
of the up/down navigation keys.
The up key increases the value, and the down key decreases the value.
Place the cursor on the value to be saved and press [OK].
ADAP-KOOL
®
Drive AKD 102 High Power 6 How to Programme the Frequency Converter
MG.11.O1.02 - ADAP-KOOL
®
is a registered Danfoss trademark
95
6
