3.4.3 Installation on Pedestal
This section describes the installation of a pedestal unit available for the
frequency converters frames D1 and D2. This is a 200 mm high pedestal
that allows these frames to be floor mounted. The front of the pedestal
has openings for input air to the power components.
The frequency converter gland plate must be installed to provide ade-
quate cooling air to the control components of the frequency converter
via the door fan and to maintain the IP21/NEMA 1 or IP54/NEMA 12 de-
grees of enclosure protections.

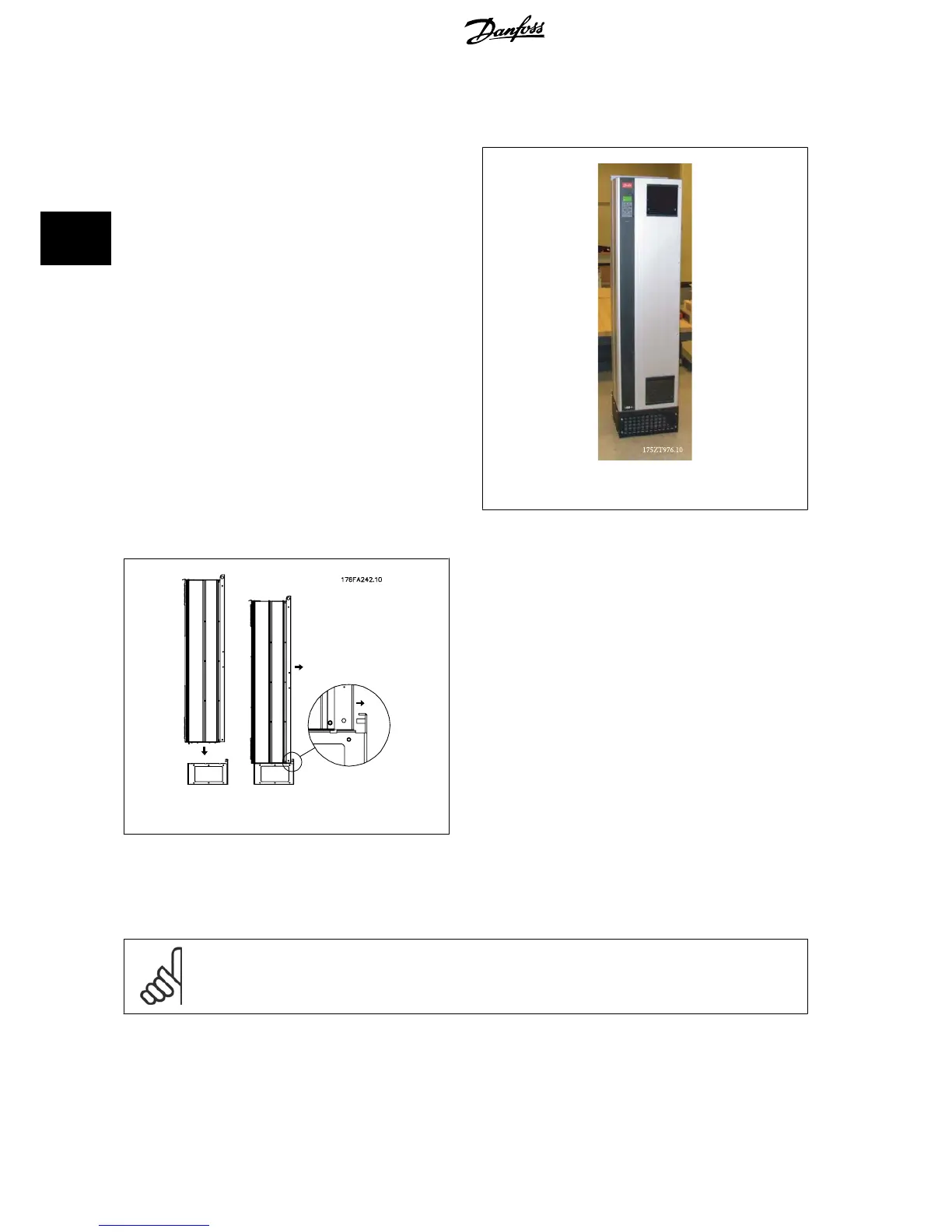

Illustration 3.17: Drive on pedestal
There is one pedestal that fits both frames D1 and D2. Its ordering number is 176F1827. The pedestal is standard for E1 frame.
Illustration 3.18: Mounting of drive to pedestal.
3.4.4 Installation of Input Plate Options
This section is for the field installation of input option kits available for frequency converters in all D and E frames.
Do not attempt to remove RFI filters from input plates. Damage may occur to RFI filters if they are removed from the input plate.
NB!
Where RFI filters are available, there are two different type of RFI filters depending on the input plate combination and the RFI filters
interchangeable. Field installable kits in certain cases are the same for all voltages.
3 Mechanical Installation ADAP-KOOL
®
Drive AKD 102 High Power
30
MG.11.O1.02 - ADAP-KOOL
®
is a registered Danfoss trademark
3
