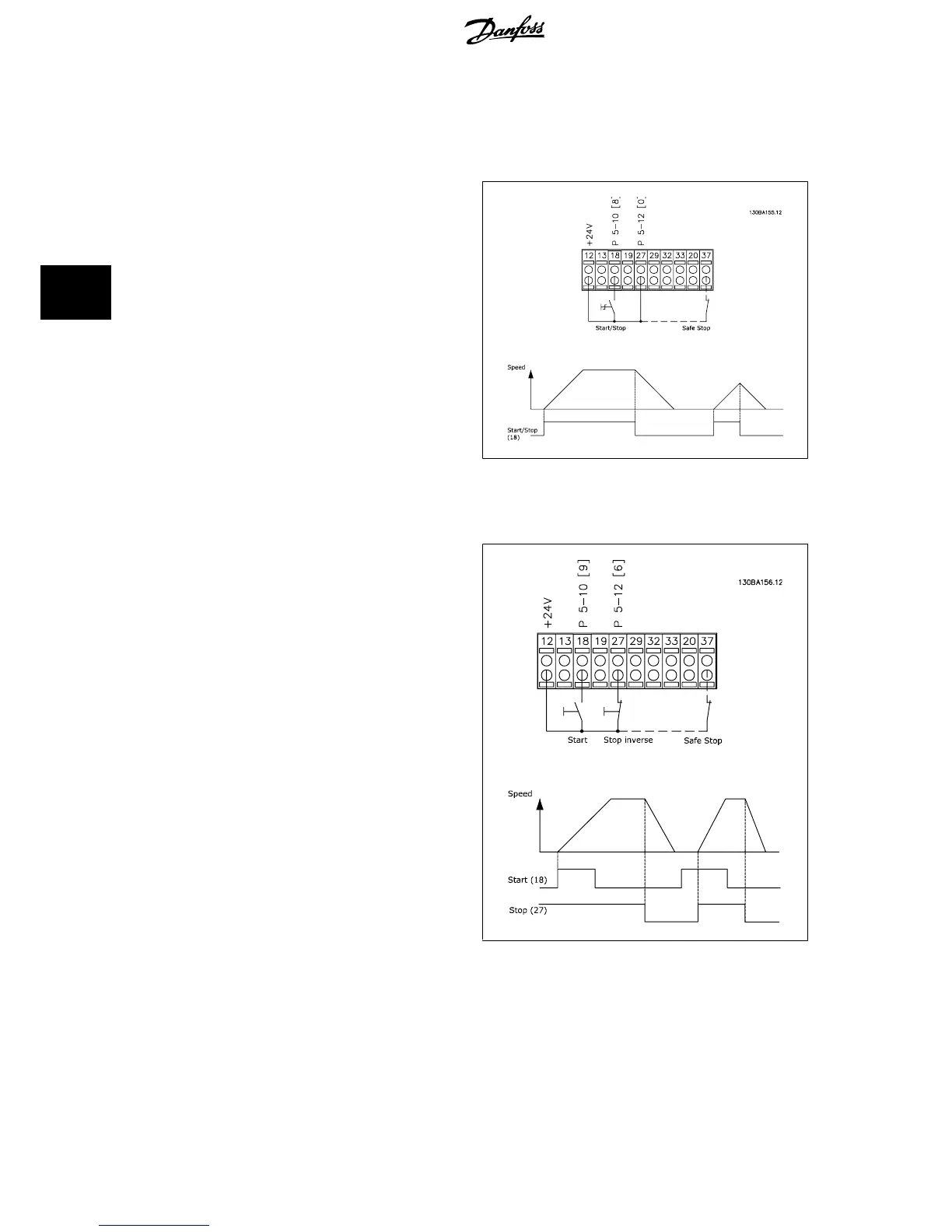

4.2 Connection Examples
4.2.1 Start/Stop
Terminal 18 = par. 5-10
Terminal 18 Digital Input
[8]
Start
Terminal 27 = par. 5-12
Terminal 27 Digital Input
[0]
No operation
(De-
fault
coast inverse
)
Terminal 37 = Safe stop
4.2.2 Pulse Start/Stop
Terminal 18 = par. 5-10
Terminal 18 Digital Input
[9]
Latched start
Terminal 27= par. 5-12
Terminal 27 Digital Input
[6]
Stop inverse
Terminal 37 = Safe stop
4 Electrical Installation ADAP-KOOL
®
Drive AKD 102 High Power
46
MG.11.O1.02 - ADAP-KOOL
®
is a registered Danfoss trademark
