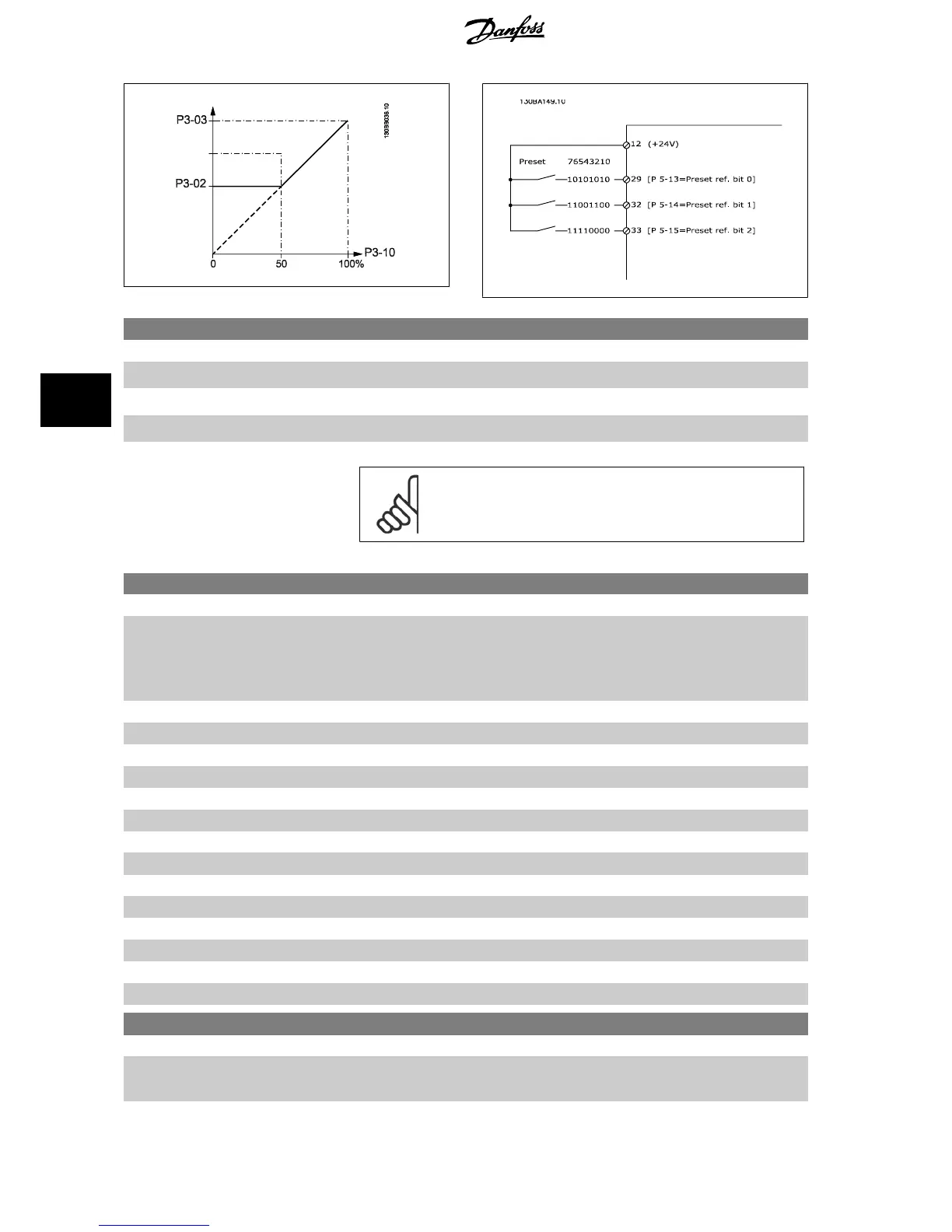

3-13 Reference Site
Option: Function:
Select which reference site to activate.
[0] * Linked to Hand / Auto Use local reference when in Hand mode; or remote reference when in Auto mode.
[1] Remote Use remote reference in both Hand mode and Auto mode.
[2] Local Use local reference in both Hand mode and Auto mode.
NB!
When set to Local [2], the frequency converter will start with this setting again
following a 'power down'.
3-15 Reference 1 Source
Option: Function:
Select the reference input to be used for the first reference signal. par.3-15 Reference 1 Source ,
par.3-16
Reference 2 Source and par. 3-17 Reference 3 Source define up to three different reference
signals. The sum of these reference signals defines the actual reference.
This parameter cannot be adjusted while the motor is running.
[0] No function
[1] * Analog input 53
[2] Analog input 54
[7] Pulse input 29
[8] Pulse input 33
[20] Digital pot.meter
[21] Analog input X30/11
[22] Analog input X30/12
[23] Analog Input X42/1
[24] Analog Input X42/3
[25] Analog Input X42/5
[30] Ext. Closed Loop 1
[31] Ext. Closed Loop 2
[32] Ext. Closed Loop 3
6-10 Terminal 53 Low Voltage
Range: Function:
0.07 V* [0.00 - par. 6-11 V] Enter the low voltage value. This analog input scaling value should correspond to the low reference/
feedback value set in par.6-14
Terminal 53 Low Ref./Feedb. Value .
6 How to Programme the Frequency Converter ADAP-KOOL
®
Drive AKD 102 High Power
84 MG.11.O1.02 - ADAP-KOOL
®
is a registered Danfoss trademark
