26 Capacity controller RS8ER302 © Danfoss 2016-02 AK-CH 650
EKA 163B EKA 164B

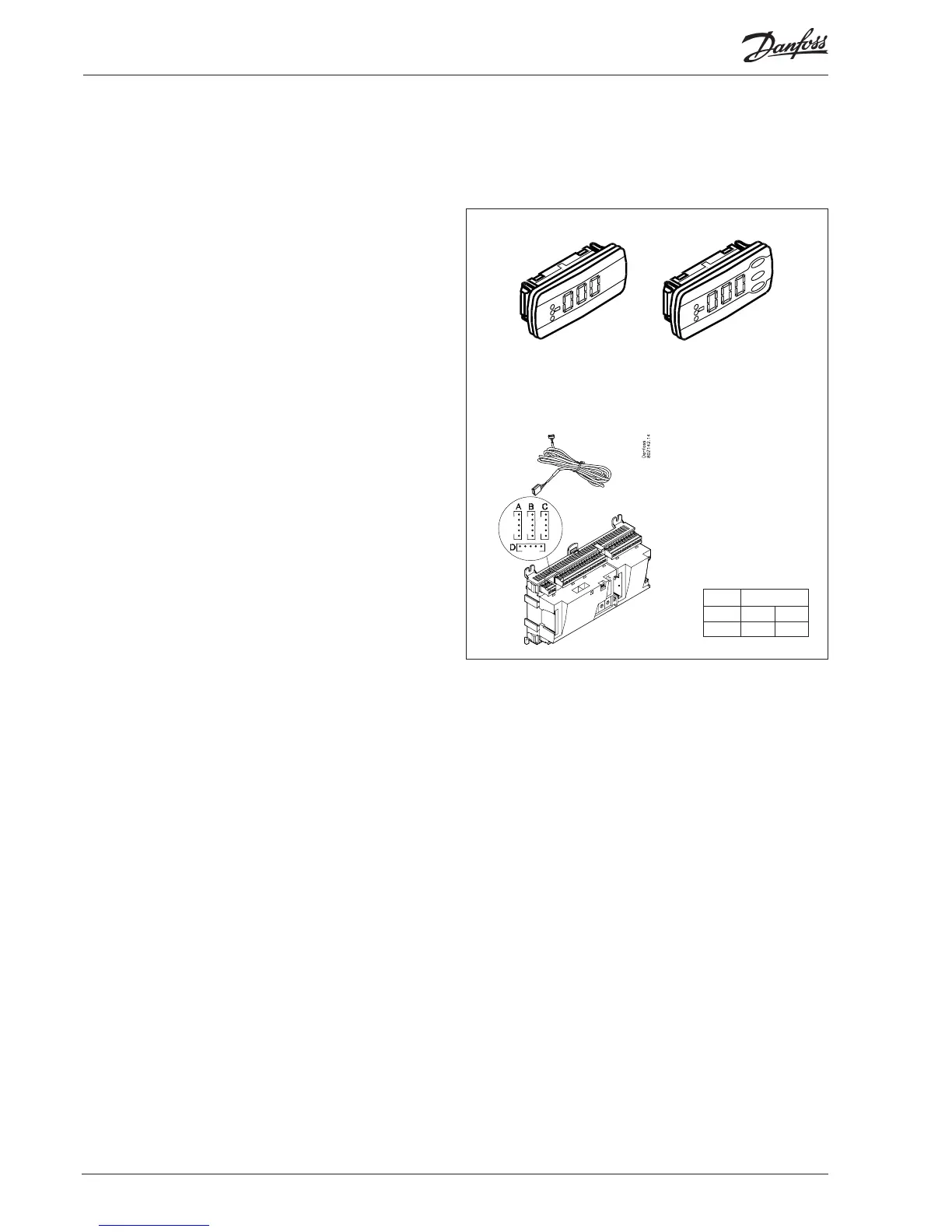

Extension module EKA 163B / EKA 164B
Function
Display of important measurements from the controller, e.g. appli-
ance temperature, suction pressure or condensing pressure.
Setting of the individual functions can be performed by using the
display with control buttons.
It is the controller used that determines the measurements and
settings that can occur.
Connection
The extension module is connected to the controller module via
a cable with plug connections. You have to use one cable per
module. The cable is supplied in various lengths.
Both types of display (with or without control buttons) can be
connected to either display output A, B, C or D.
When the controller starts up, the display will show the output
that is connected.
- - 1 = output A
- - 2 = output B
etc.
Placing
The extension module can be placed at a distance of up to 15 m
from the controller module.
Point
No point has to be dened for a display module – you simply con-
nect it.
Module
1
Point - -
Type - -
