Conguration - continued

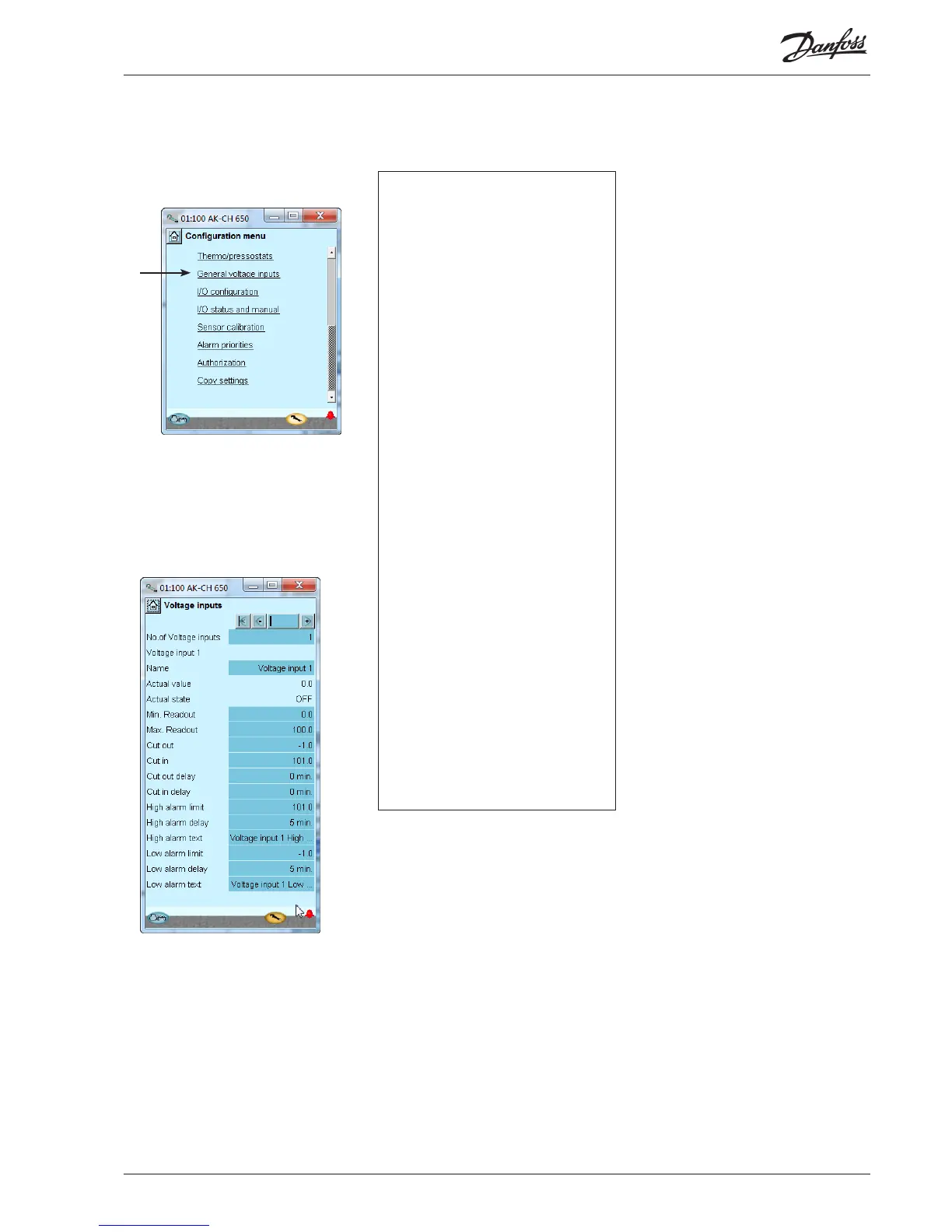

1. Go to Conguration menu
2. Select General Voltage inputs
(In our example we do not use this
function).
3. Dene the required names
and values attached to the
signal
In our example we do not use this function,
so the display has been included for your
information only.
The name of the function may be xx and
further down in the display the alarm texts
may be entered.
The values ”Min. and Max. Readout” are your
settings representing the lower and upper
values of the voltage range. 2V and 10V, for
example. (The voltage range is selected during
the I/O setup).
For each voltage input dened the controller
will reserve a relay output in the I/O setup.
It is not necessary to dene this relay if all
you require is an alarm message via the data
communication.
Setup separate voltage functions
3 - Voltage inputs
The general volt inlet can be used to monitor
external voltage signals. Each volt inlet has a
separate outlet to control external automatic
controls.
No. of voltage inp.
Set the number of general voltage inputs,
specify 1-5:
Name
Actual value
= read-out of the measurement
Actual state
= read-out of outlet status
Min. readout
State read-out values at minimum voltage signal
Max. readout
State read-out values at maximum voltage signal
Cutout
Cut-out value for outlet
Cutin
Cut-in value for outlet
Cutout delay
Time delay for cut-out
Cut in delay
Time delay for cut-in
Limit alarm high
High alarm limit
Alarm delay high
Time delay for high alarm
Alarm text high
Set alarm text for high alarm
Limit alarm low
Low alarm limit
Alarm delay low
Time delay for low alarm
Alarm text low
Indicate alarm text for low alarm
