Danfoss AK-CH 650 User Manual

40 Capacity controller RS8ER302 © Danfoss 2016-02 AK-CH 650

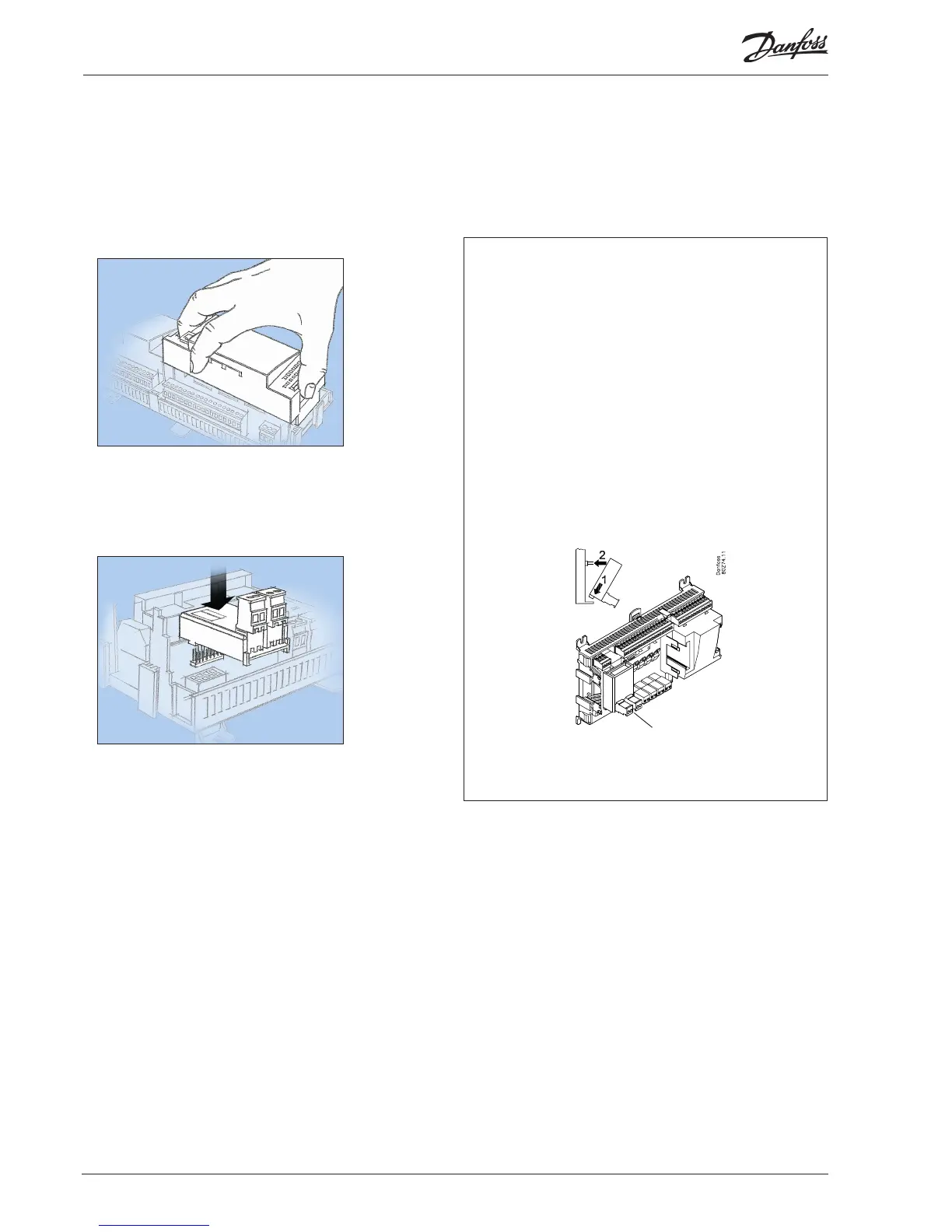

Mounting
Mounting of analog output module
1. Lift the top part o the basic module
The basic module must not be connected to voltage.
Press in the plate on the left-hand side of the light-emitting
diodes and the plate on the right-hand side for the red address
changers.
Lift the top part o the basic module.
2. Mount the extension module in the basic module
3. Put the top part back on the basic module
The analog extension module will supply a signal to the variable fre-
quency drive.
There are two out-
puts, but we only use
one in the example.
