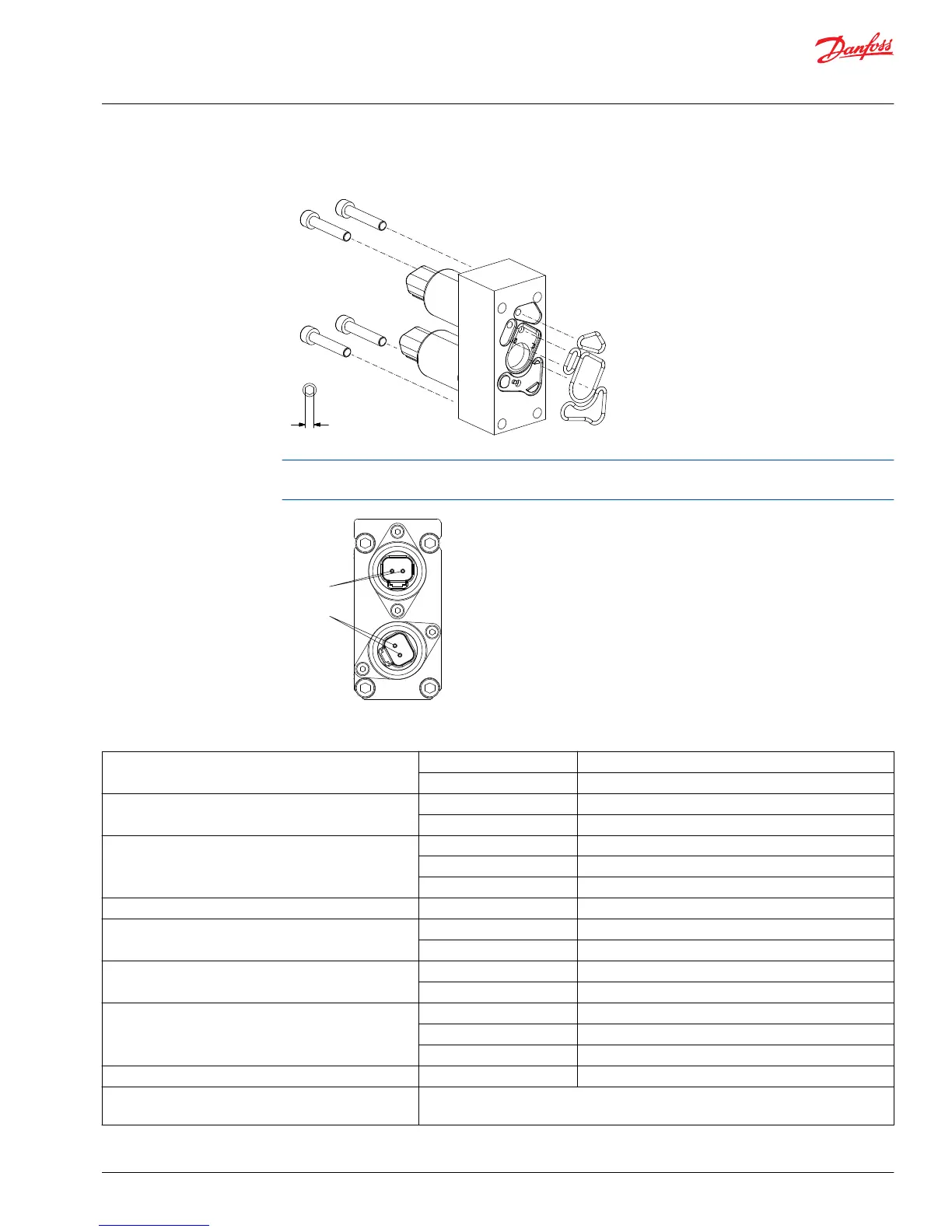

Danfoss PVG 128 User Manual

PVHC for PVG 16
5 [0.197]
8 ±0.5 Nm
[70 ±4.4 lbf •in]
The seal in the PVHC connector and the seals for individual conductors are crucial for correctly sealing the
conductor.
U
DC
(A)
U
DC
(B)
Technical data
Controller output current range 12 V 0 – 1200 mA
24 V 0 – 600 mA
Coil resistance 12 V 1.0 Ω ± 5%
24 V 0.25 Ω ± 5%
Pilot pressure (over tank)
1
Nominal 25 bar [363 psi]
Minimum 21 bar [305 psi]
Maximum 25 bar [363 psi]
Control pressure Range 5 - 15 bar [72.5 - 217.5 psi]
Maximum tank pressure Port T Static 25 bar [363 psi]
Port T Dynamic 30 bar [435 psi]
Temperature range Ambient -30°C to 80°C [-22 to 176°F]
Medium -20°C to 80°C [-4 to 176°F]
Oil viscosity Range 12 to 75 mm2/s [65 to 347 SUS]
Minimum 4 mm2/s [39 SUS]
Maximum 400 mm2/s [2130 SUS]
Enclosure – Protection class DEUTSCH DT IP 67
Filtering in the hydraulic system;
Max. permissible degree of contamination
23/19/16 (ISO 4406, 1999 version)
1
Designed to be used with hydraulic activated spools
Service and Parts Manual
PVG 16/32/128/256
Installation
©
Danfoss | October 2018 AX284661889190en-000101 | 21
