PVG 32 basic module, PVB

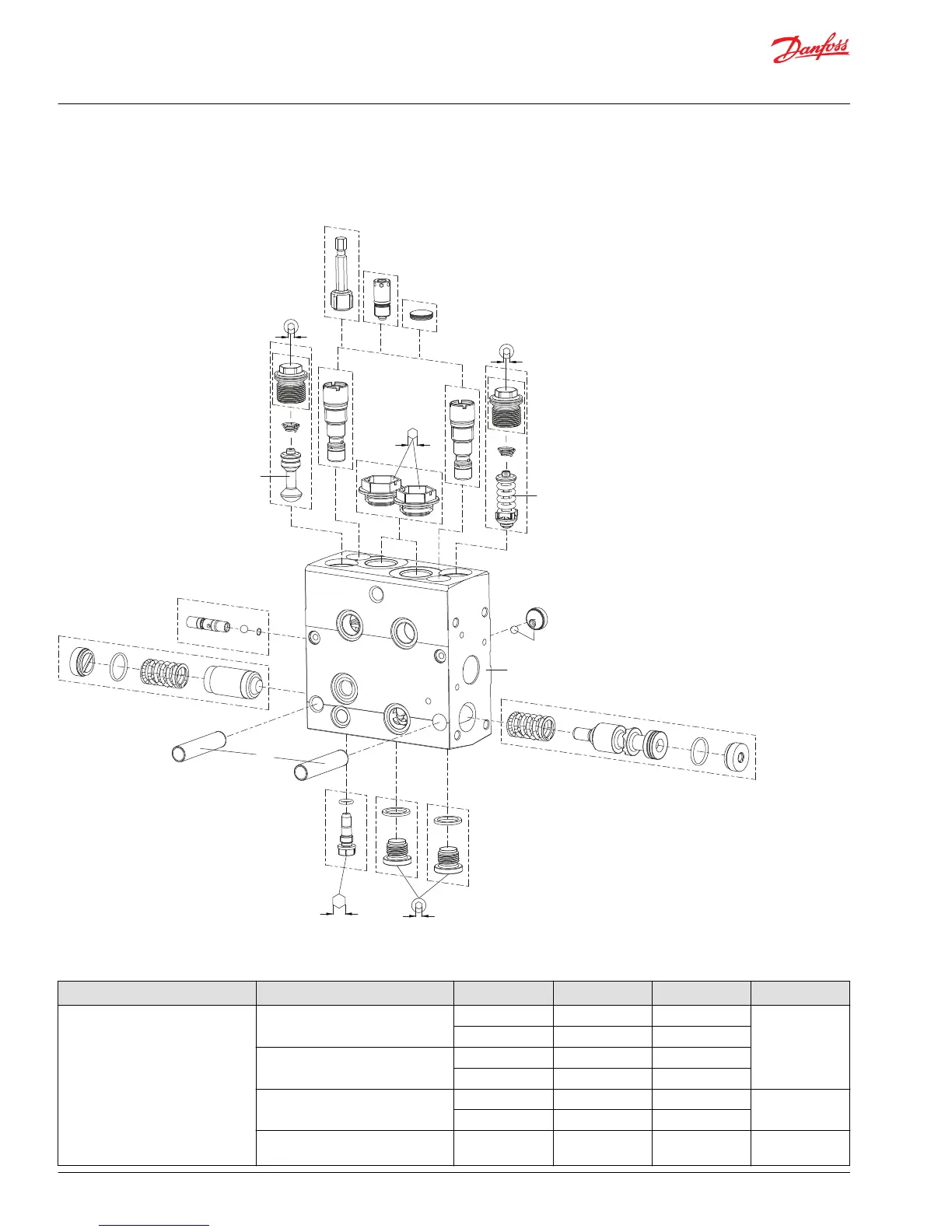

PVB exploded view
6[0.24]
30±3Nm
[266±27lbf-in]
13[0.51]
35±3Nm
[310±27lbf-in]
13[0.51]
35±3Nm
[310±27lbf-in]
10[0.39]
10±1Nm
[88.5±9lbf-in]
1
2
3
2
4
5
6
7
7
8
9
9
10
11
12
13
14
14
15
Pressure
setting
Pressure
setting
5±0.5Nm
[44±4.4lbf-in]
PVB part kits
Type Description Code number A/B-port LS A/B-port Letter
Uncompensated PVB Basic module 157B6000 G1/2” - A
157B6400 7/8-14 UNF -
Basic module with T0 157B6010 G1/2” -
157B6410 7/8-14 UNF -
Basic module with PVLP/PVLA 157B6030 G1/2” - B
157B6430 7/8-14 UNF -
Basic module with PVLP/PVLA and
LS A/B shuttle valve
11071832 G1/2” - C
Service and Parts Manual
PVG 16/32/128/256
Service Parts
84 |
©
Danfoss | October 2018 AX284661889190en-000101
