Danfoss VLT 5000 Series Design Guide

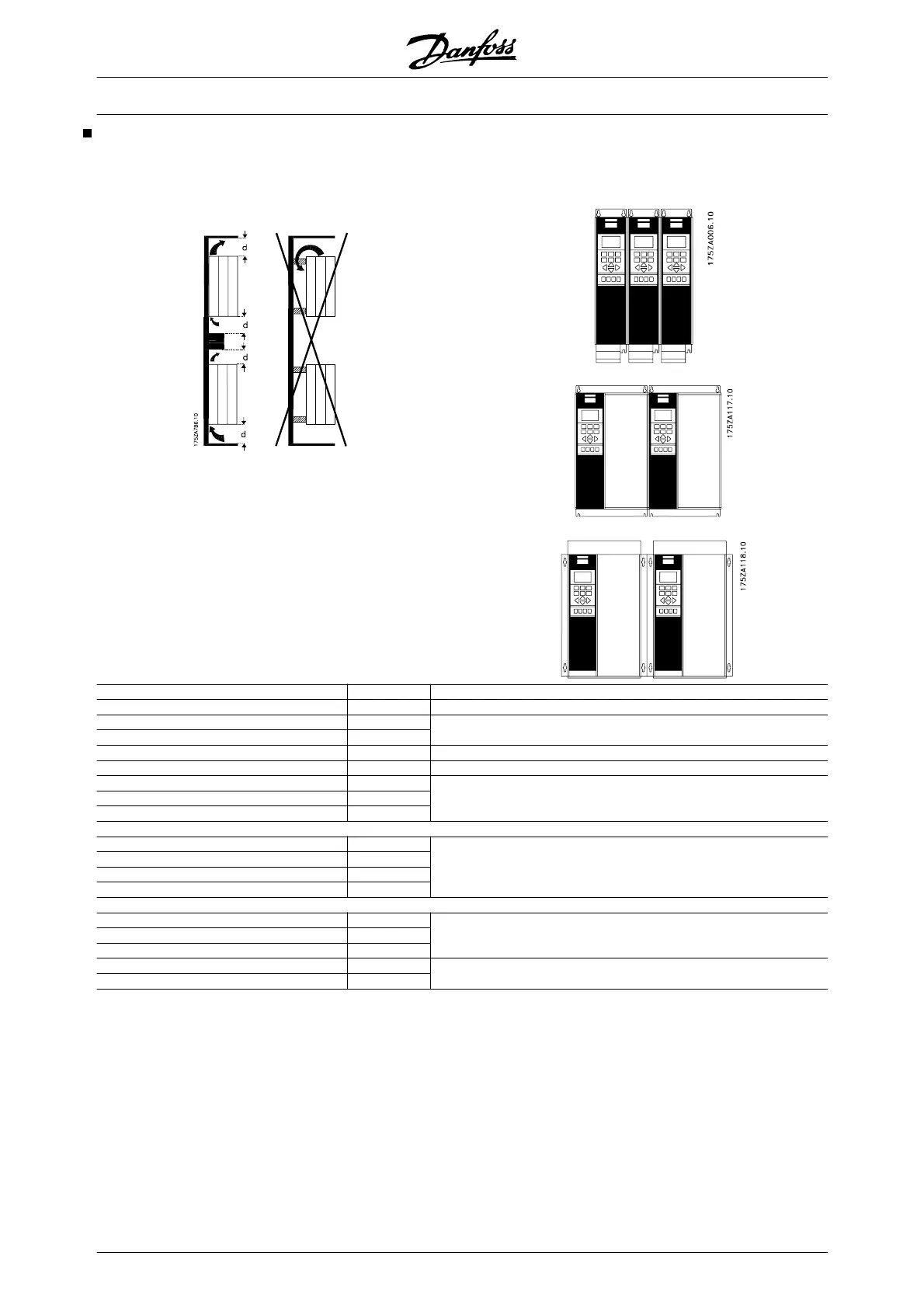

Installation of VLT 5001-5602
All frequency converters must be installed in a way that
ensures proper cooling.
Cooling
All Bookstyle and Compact units require a minimum
space above and below the enclosure.
Side by side/flange by flange
All frequency converters can be mounted side by side/
flange by flange.
d [mm] Comments
Bookstyle
VLT 5001-5006, 200-240 V 100
Installation on a plane, vertical surface (no spacers)
VLT 5001-5011, 380-500 V 100
Compact (all enclosure types)
VLT 5001-5006, 200-240 V 100
Installation on a plane, vertical surface (no spacers)VLT 5001-5011, 380-500 V 100
VLT 5001-5011, 525-600 V 100
VLT 5008-5027, 200-240 V 200
Installation on a plane, vertical surface (no spacers)
VLT 5016-5062, 380-500 V 200
VLT 5072-5102, 380-500 V 225
VLT 5016-5062, 525-600 V 200
VLT 5032-5052, 200-240 V 225
Installation on a plane, vertical surface (no spacers)
IP 54 filter mats must be changed when they are dirty.
VLT 5122-5302, 380-500 V 225
VLT 5042-5352, 525-690 V 225
VLT 5352-5552, 380-500 V 225 IP 00 above and below enclosure
IP 21/IP 54 only above enclosure
VLT 5402-5602, 525-690 V 225
