1.8 Exploded Views
130BX0501.10
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

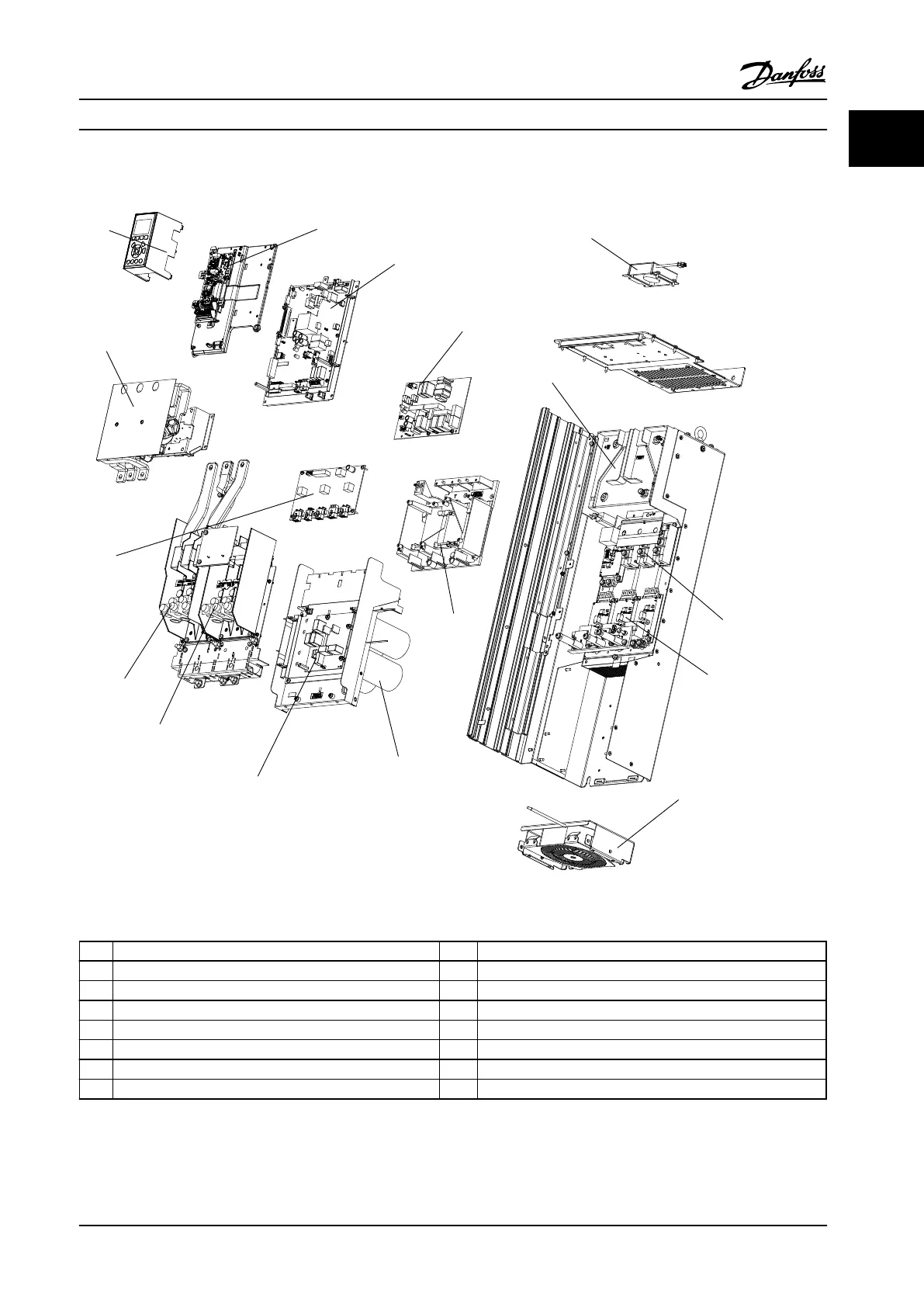

Figure 1.1 Exploded View D3h Frame Size (D1h Frame is similar)
1
Local control panel mounting bracket 9 Heatsink fan
2 Control card and mounting plate 10 Gate drive support bracket
3 Power card and mounting plate 11 Capacitor bank
4 Inrush card 12 Balance/High frequency card
5 Top fan (IP20 only) 13 Motor output terminals
6 DC inductor 14 Line power input terminals
7 SCR/Diode modules 15 Gate drive card
8 IGBT modules 16 (optional) RFI filter
Table 1.9 Legend to Figure 1.1
Introduction
Service Manual
MG94A222 Danfoss A/S © Rev. 2014-02-10 All rights reserved. 11
