28 Elements of Card Design

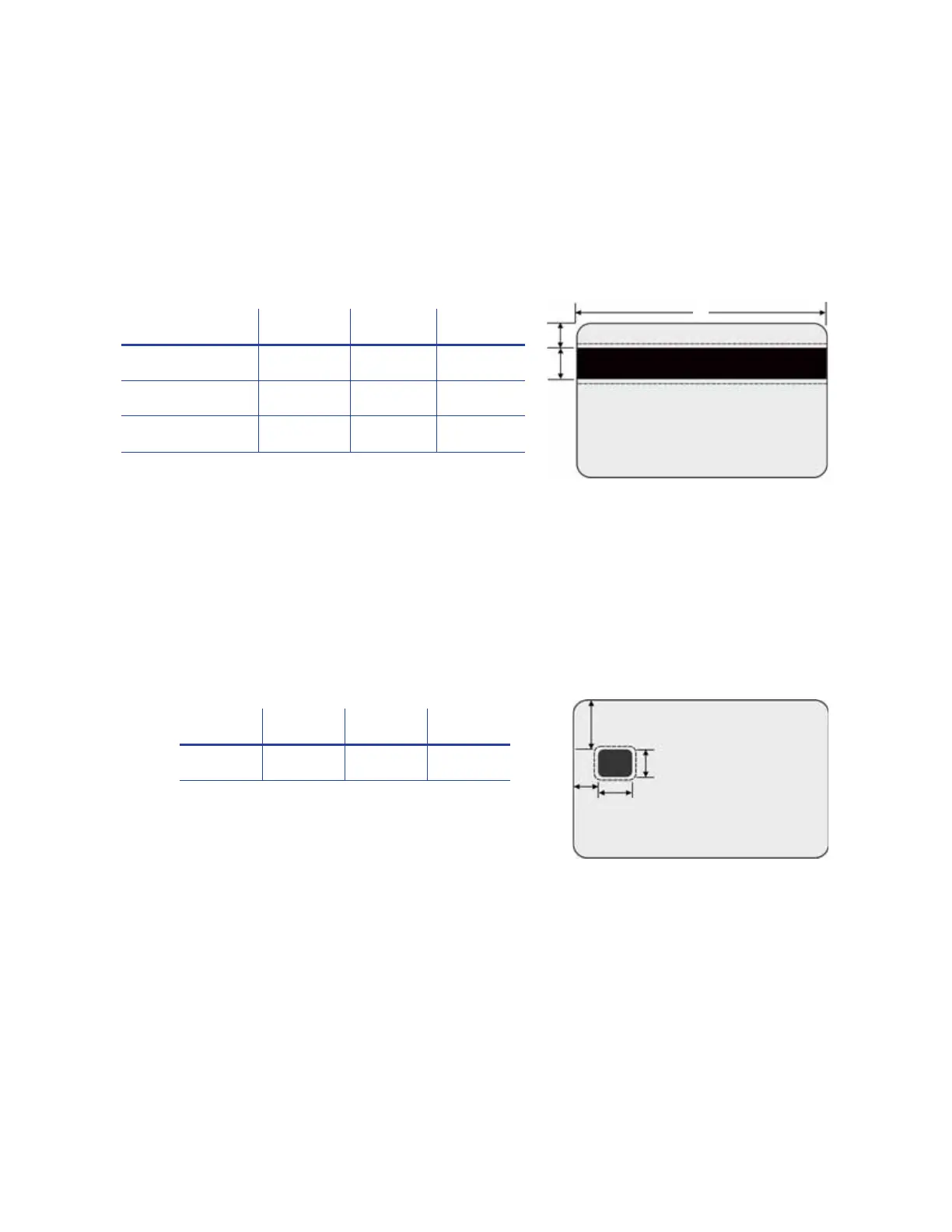

Standard Magnetic Stripe Non-Printing Area
The magnetic stripe typically is on the back of the card.
The following table shows the standard measurements for magnetic stripes. Use these values if
you need to define a non-printing area. The non-print blocking area must extend outside the
magnetic stripe by 0.05 in (1.27 mm), indicated by the dotted lines.
Standard Smart Card Non-Printing Area
The smart card area typically is on the front of the card.
The following table shows the measurements for a typical smart card chip. The smart card chip
can vary in size, shape, and location. Adjust these values based on the card stock you use. The
non-print blocking area must extend outside the smart card chip by 0.05 in (1.27 mm), indicated
by the dotted line.
Custom Non-Printing Areas
Use ID software, a custom application, or escapes to define custom non-printing areas for one or
more of the following:
 Blocking printing but not topcoat
 Non-standard areas, such as a preprinted logo or a signature panel
 More than one area on the same side of the card, such as a magnetic stripe and a
signature panel
ABC
3-track 5.0 mm 13.5 mm 86 mm
2-track 6 mm 9 mm 86 mm
Single-track (JIS) 7.5 mm 7.5 mm 86 mm
C
A
B
ABCD
19.5 mm 10 mm 13 mm 12 mm
A
B
C
D

DataCard SD260L Specifications

General

Card size	85.6 x 53.98 mm
Card types	Magnetic stripe (ISO 7811), PVC
Card feeder	Yes
Duplex printing	No
Print technology	Dye-sublimation/Resin Thermal transfer
Maximum resolution	300 x 300 DPI
Print speed (color)	830 card/h
Print speed (monochrome)	200 card/h
Display	LCD
Product color	Blue, Grey
Internal memory	128 MB
Cable lock slot type	Kensington
Total input capacity	100 sheets
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-15 - 60 °C
Operating temperature (T-T)	15 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
USB version	2.0
Ethernet interface type	Fast Ethernet
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Weight and Dimensions

Depth	539 mm
Width	175 mm
Height	224 mm
Weight	5400 g
