Datalogic QuickScan QS6500 User Manual

Standard Cable Pinouts (Primary Interface Cables)
Product Reference Guide 8-3
USB
IBM Port 5B/9B/17
Pin 10
Pin 1

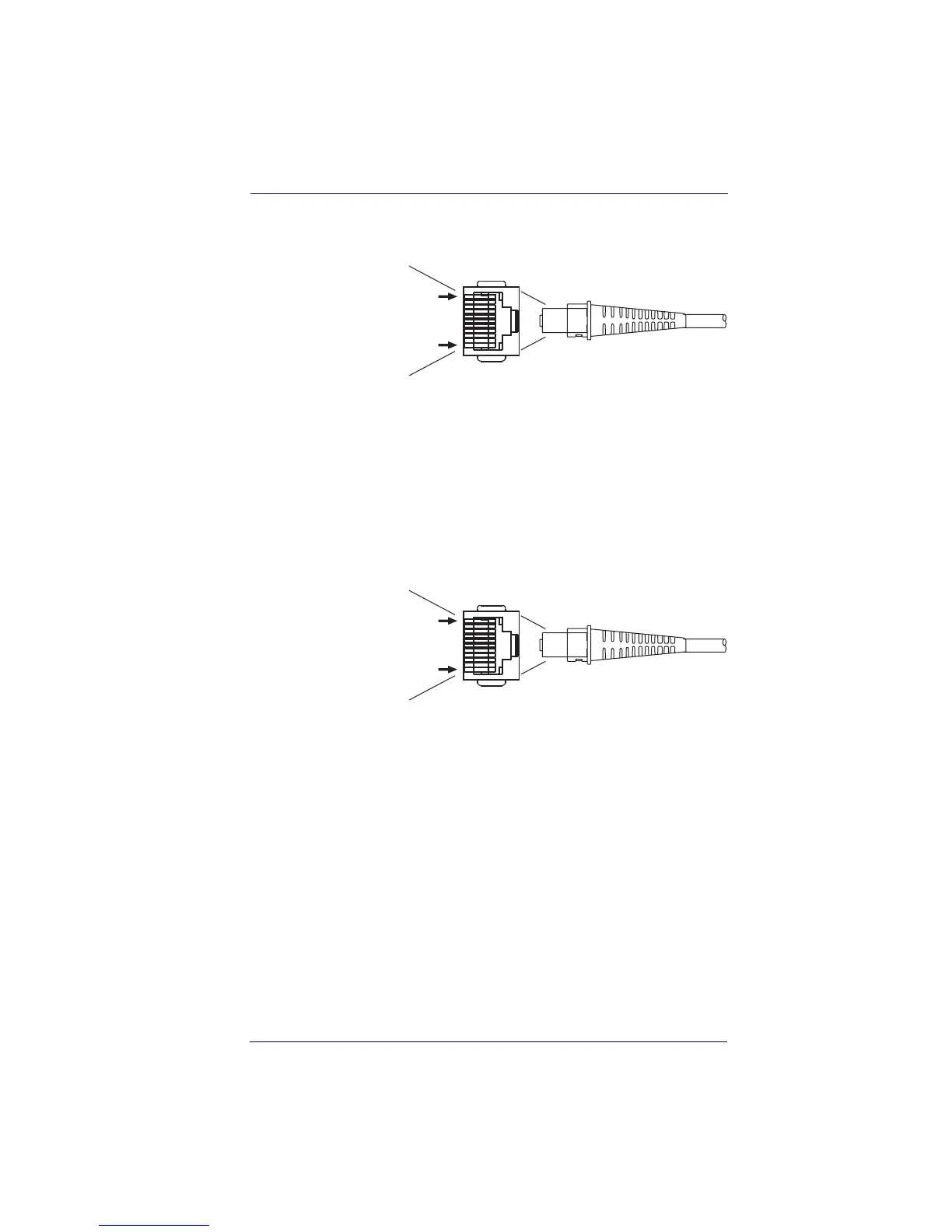

10 Pin Modular Plug
(Connects to the imager module)
1
2
3
4D-
5
6D+
7
8 VBUS_VIN
9GND
10
Pin 10
Pin 1
10 Pin Modular Plug
(Connects to the imager module)
1
2
3
4 Serial I/O B
5
6 Serial I/O A
7
8VCC_IN
9GND
10

Datalogic QuickScan QS6500 Specifications

General

Scan speed	450 sec/page
Tilt angle range	-60 - 60 °
Maximum scan area	610 mm
Decoding standards	- 1D - Code 16K - EAN/JAN - GS1 DataBar - PDF Models - GS1 DataBar Expanded Stacked - GS1 DataBar Stacked - GS1 DataBar Stacked Omnidirectional - MicroPDF417 - PDF417 - UPC A/E
Dimensions (WxDxH)	165 x 74 x 99 mm
Cable length	2.44 m
Standard interfaces	Keyboard wedge
Input voltage	4.5 - 14 V
Power consumption	300 mA
Certification	RoHS
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	181.4 g
