Datalogic QuickScan QS6500 User Manual

Interface Features
Product Reference Guide 4-21

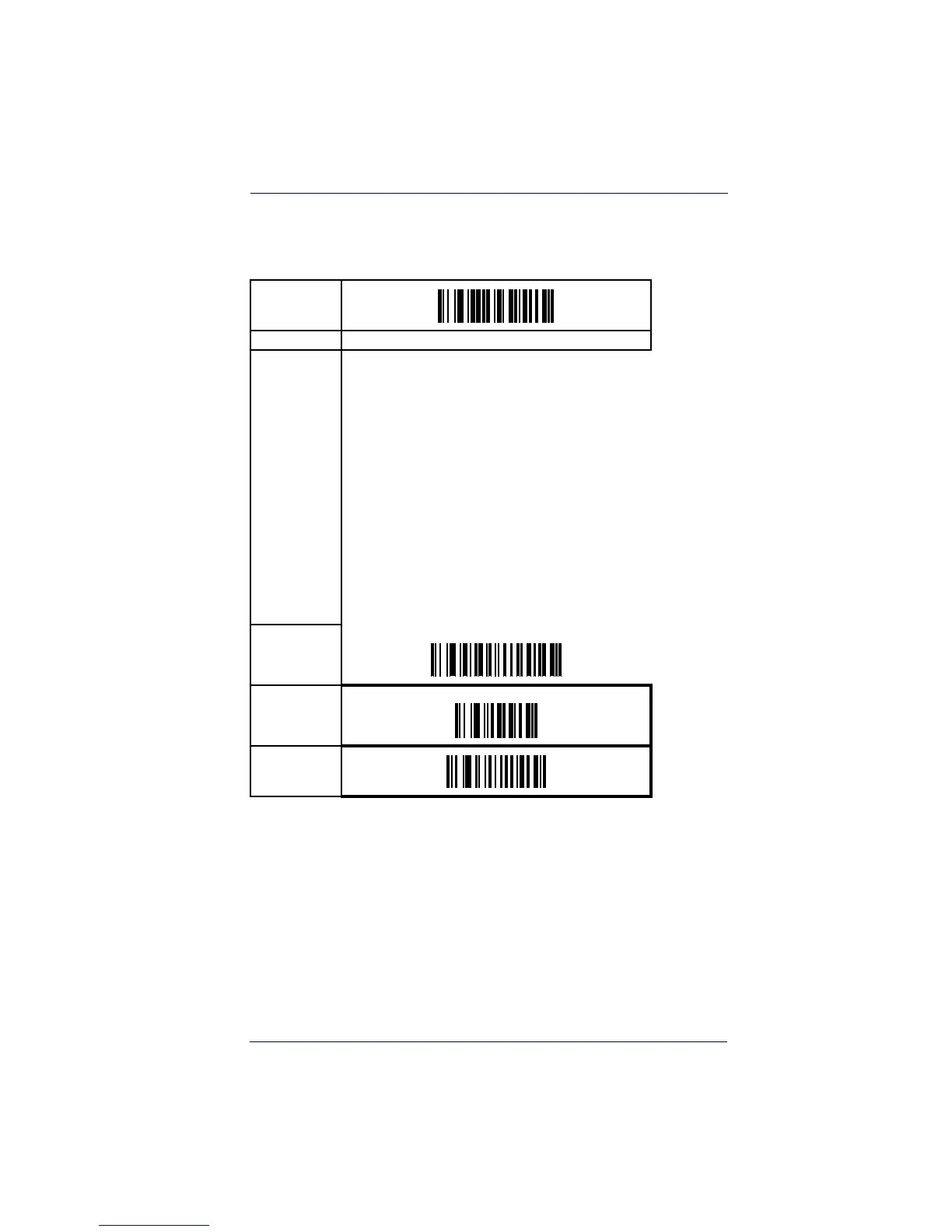

RS-232 Interface Features — cont.
ACK NAK Timeout Value
START
MODE BARCODE
This item specifies the time the imager will wait for an
ACK character from the host following a label trans-
mission.
0 = Infinite timeout
1 - 75 = Timeout in 200-millisecond increments
To configure this feature, scan the “START” bar code
above to place the unit in Programming Mode, then
the “Set ACK NAK Timeout Value,” followed by the
digits from the Alphanumeric table in
Appendix B,
Alpha-Numeric Pad
representing your desired
value. Accept your selection by scanning the “SET”
bar code below and finally, exit programming mode
by scanning the “END” barcode below
DEFAULT SETTING FOR THIS FEATURE: 01
Set ACK
NAK Timeout
Value
SET
END

Datalogic QuickScan QS6500 Specifications

General

Scan speed	450 sec/page
Tilt angle range	-60 - 60 °
Maximum scan area	610 mm
Decoding standards	- 1D - Code 16K - EAN/JAN - GS1 DataBar - PDF Models - GS1 DataBar Expanded Stacked - GS1 DataBar Stacked - GS1 DataBar Stacked Omnidirectional - MicroPDF417 - PDF417 - UPC A/E
Dimensions (WxDxH)	165 x 74 x 99 mm
Cable length	2.44 m
Standard interfaces	Keyboard wedge
Input voltage	4.5 - 14 V
Power consumption	300 mA
Certification	RoHS
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	181.4 g
