3.3.2 Boiler type C 630 ECO

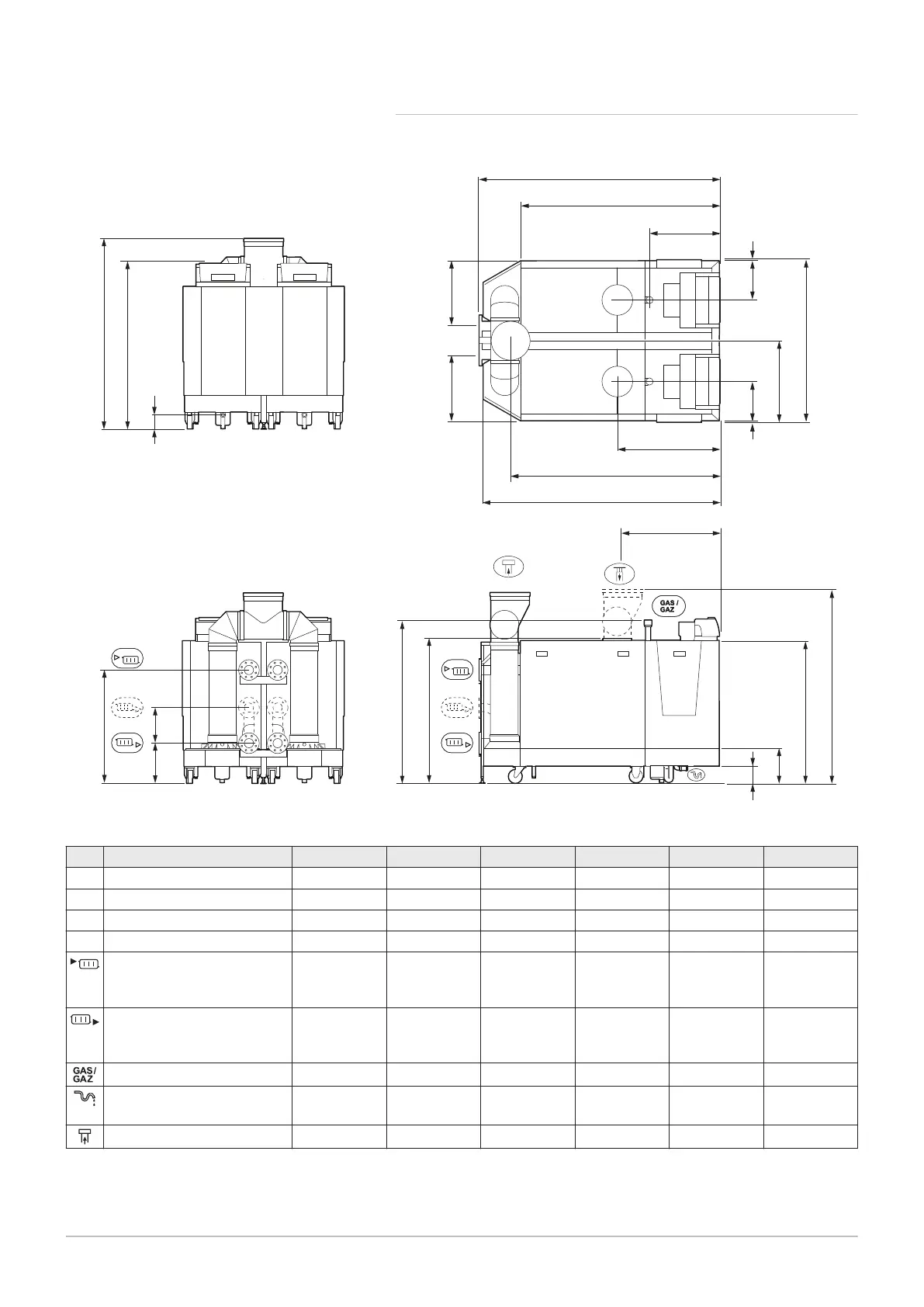

Fig.2 DimensionsC 630 ECO
AD-0000509-01
B
920
869
A
641
L
C
592592
366 320
2 2
1023
1760
1477
1293
310
155
1500
130
1726
1310
8
8353353
722
1460
C 630 ECO 560 700 860 1000 1140 1300
A 1833 mm 1833 mm 1833 mm 2142 mm 2142 mm 2142 mm
B 1582 mm 1582 mm 1582 mm 1892 mm 1892 mm 1892 mm
C 1862 mm 1862 mm 1862 mm 2172 mm 2172 mm 2172 mm
L 1490 mm 1490 mm 1490 mm 1800 mm 1800 mm 1800 mm
Central heating circuit flow Flange NW
80 (DIN
2576)
Flange NW
80 (DIN
2576)
Flange NW
80 (DIN
2576)
Flange NW
80 (DIN
2576)
Flange NW
80 (DIN
2576)
Flange NW
80 (DIN
2576)
Central heating circuit return Flange NW
80 (DIN
2576)
Flange NW
80 (DIN
2576)
Flange NW
80 (DIN
2576)
Flange NW
80 (DIN
2576)
Flange NW
80 (DIN
2576)
Flange NW
80 (DIN
2576)
Gas connection G2" G2" G2" G2" G2" G2"
Condensation outlet Ø 32 mm (in
ternal)
Ø 32 mm (in
ternal)
Ø 32 mm (in
ternal)
Ø 32 mm (in
ternal)
Ø 32 mm (in
ternal)
Ø 32 mm (in
ternal)
Flue gas outlet Ø 350 mm Ø 350 mm Ø 350 mm Ø 350 mm Ø 350 mm Ø 350 mm
