Dell Dimension 9150 User Manual

Removing and Installing Parts 101
Installing a Media Card Reader
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide.
NOTICE: To prevent static damage to components inside your computer, discharge static electricity
from your body before you touch any of your computer’s electronic components. You can do so by
touching an unpainted metal surface on the computer chassis.
1 Follow the procedures in "Before You Begin" on page 63.
2 Lay the computer on its side so that the system board is on the bottom of the inside of the
computer.
3 Remove the computer cover (see page 68).
4 Remove the drive panel (see page 89).
5 Remove the Media Card Reader from its packaging and ensure that all four screws are
included.
6 Gently slide the drive into place until you feel a click or feel the drive securely installed.
Ensure that the Media Card Reader is installed before the FlexBay cable is connected.

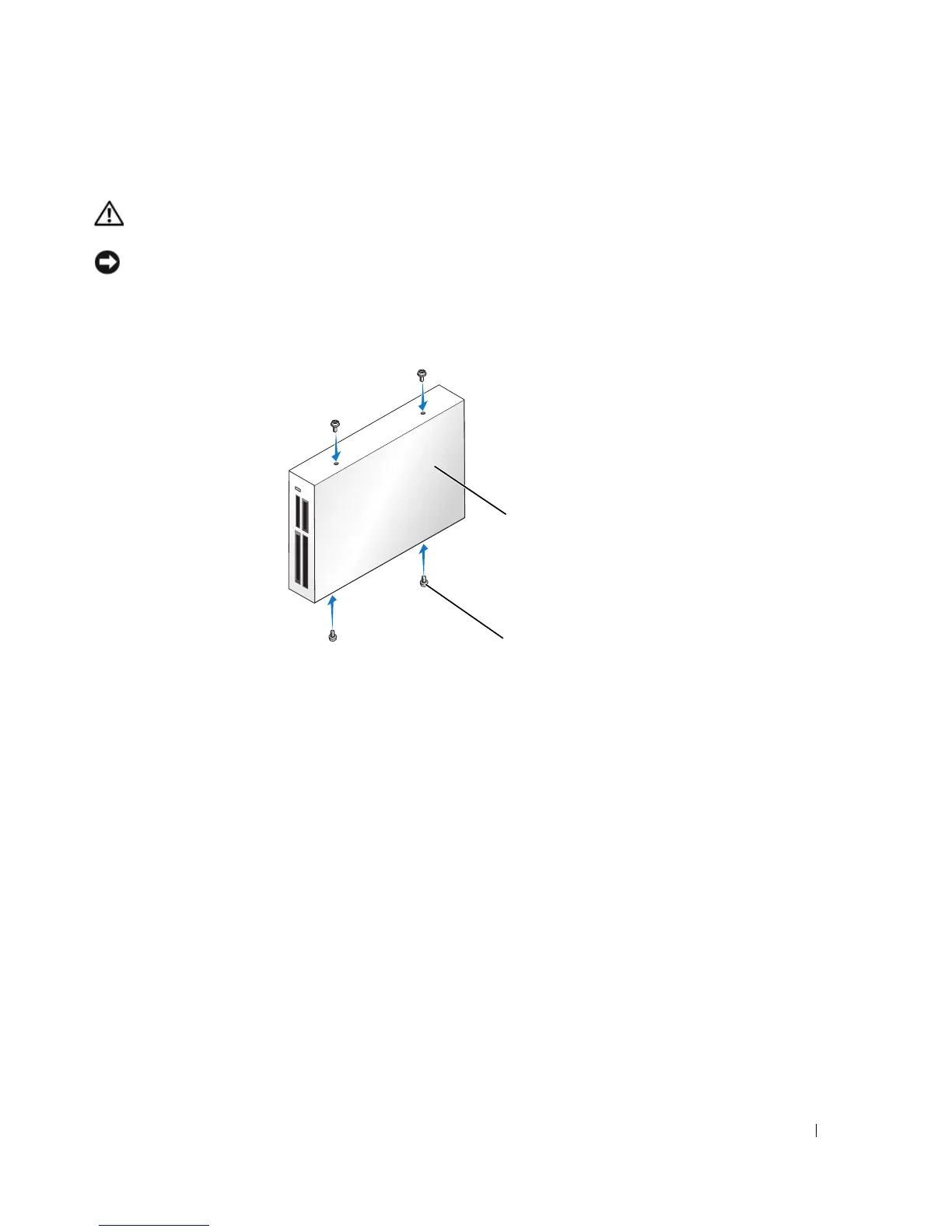

Media Card
Reader
screws (4)

Dell Dimension 9150 Specifications

General

RAM	Up to 4GB DDR2
Operating System	Windows XP Home or Professional
Form Factor	Tower
Memory Type	DDR2 SDRAM
Memory Speed	533MHz or 667MHz
SATA Ports	4
IDE Ports	1
Power Supply	305W
Storage	Up to 500GB SATA HDD
Graphics	Integrated Intel Graphics Media Accelerator 950
Chipset	Intel 945P
Expansion Slots	1 PCIe x16, 1 PCIe x1, 2 PCI
USB Ports	8
Audio	Integrated 7.1 channel
Ethernet	Integrated 10/100/1000 Ethernet
Optical Drive	DVD-ROM
Ports	Serial, Parallel
Dimensions	18.5 cm
Processor	Intel Pentium 4, Pentium D
