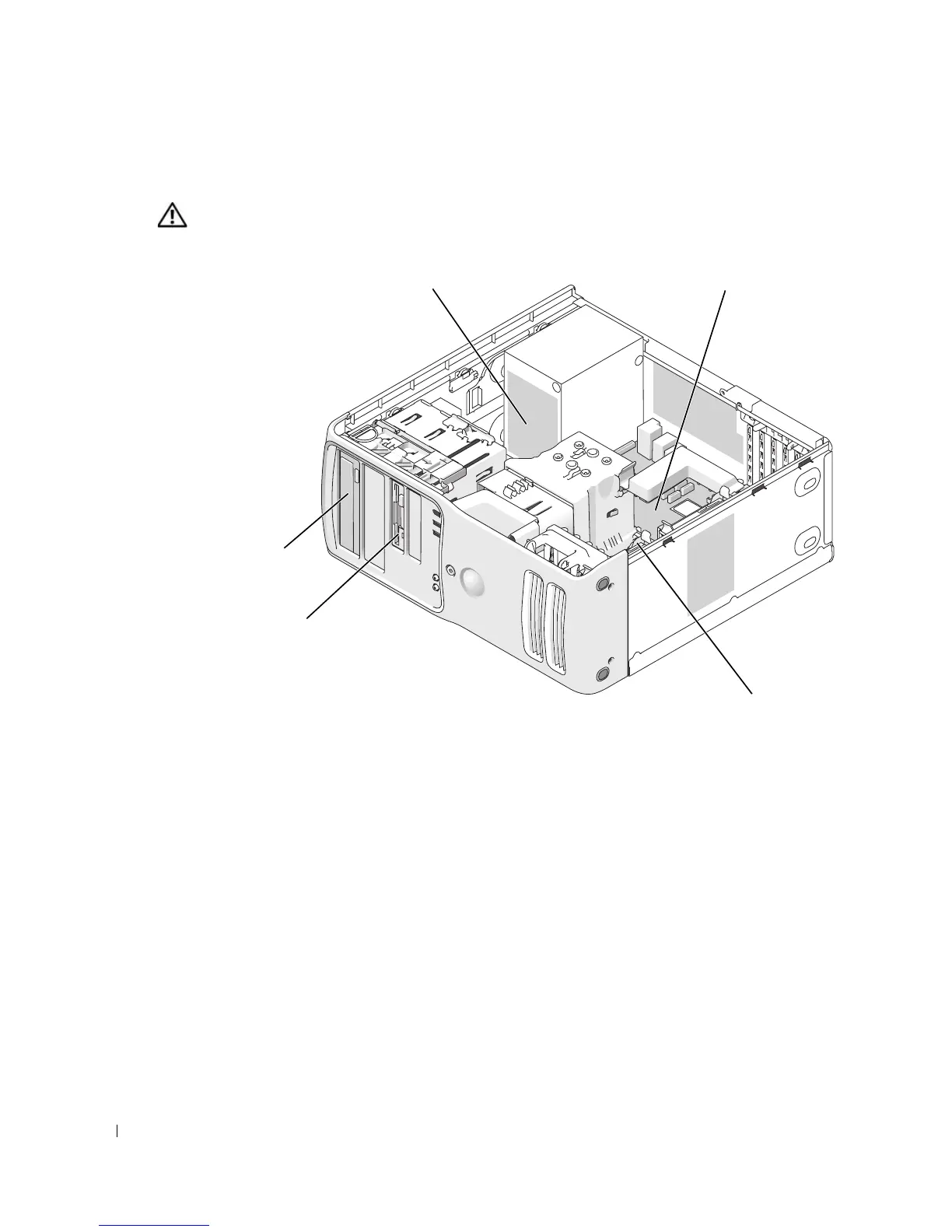

Removing and Installing Parts
Inside V
i
ew of Y
our Computer
CAUTION:
Before you begin any of th
e procedures in this section, follow
the safety ins
tructions in the
Product Information Guide
.
hard drive
power supply
sy
stem board
*floppy drive
CD or DVD drive
*may not be present on all computers
