Removing and Installing Parts 91
1
Slide the tab on the left side of the drive-panel insert under the center drive panel tab.
2
Rotate the drive-panel insert into place and snap the drive-panel insert tab over the
corresponding tab on the drive panel.
3
Ensure that the drive-panel insert is correctly seated in the drive panel.
Replacing the Drive Panel
1
Follow the procedures in "Before You Begin" on page 63.
2
Align the drive panel tabs with the side-door hinges.
3
Rotate the drive panel toward the computer until the sliding plate lever clicks into place and
the drive panel snaps into place on the front panel.

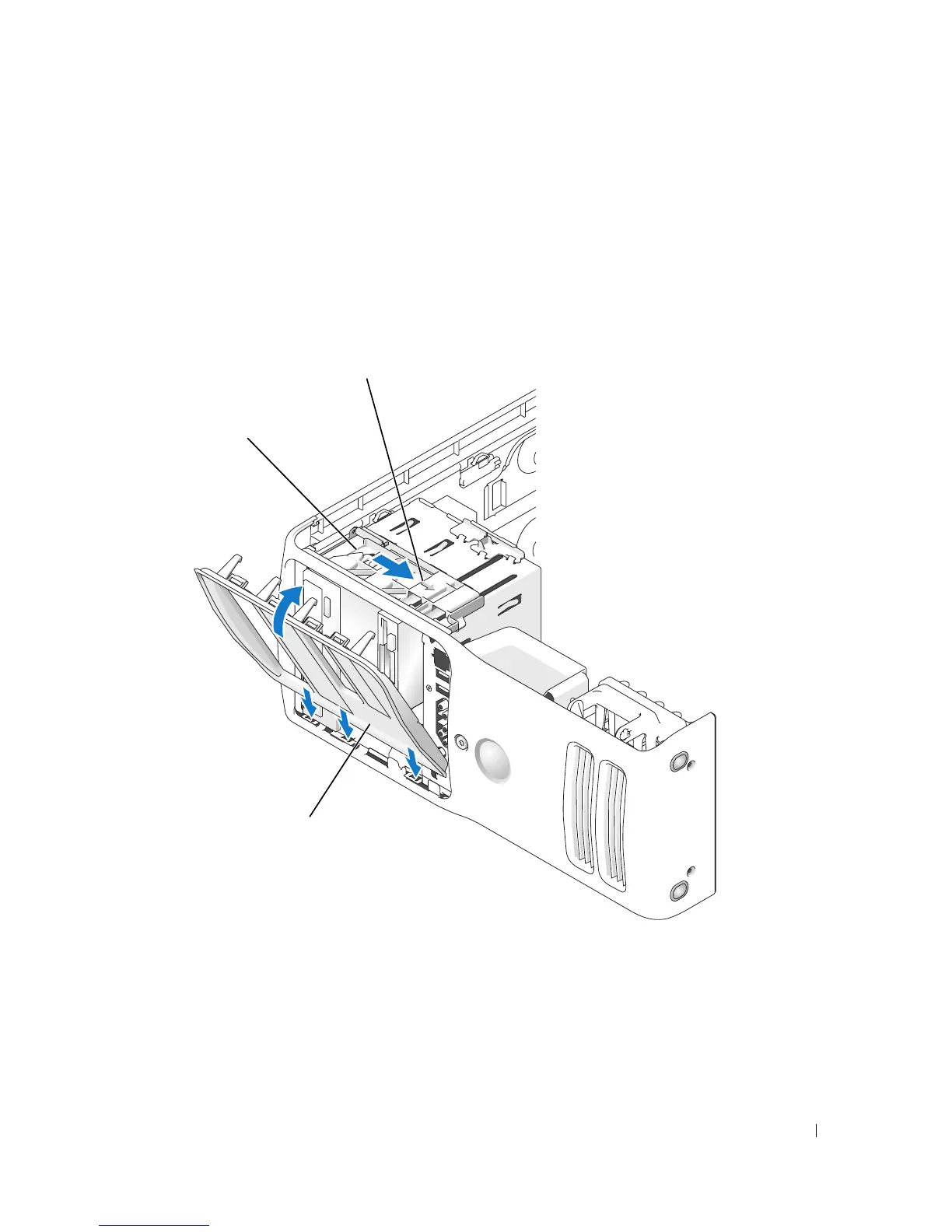

drive panel
sliding plate
s
ng p
ate
ever
