Dell EMC PowerEdge R750xs Service Manual

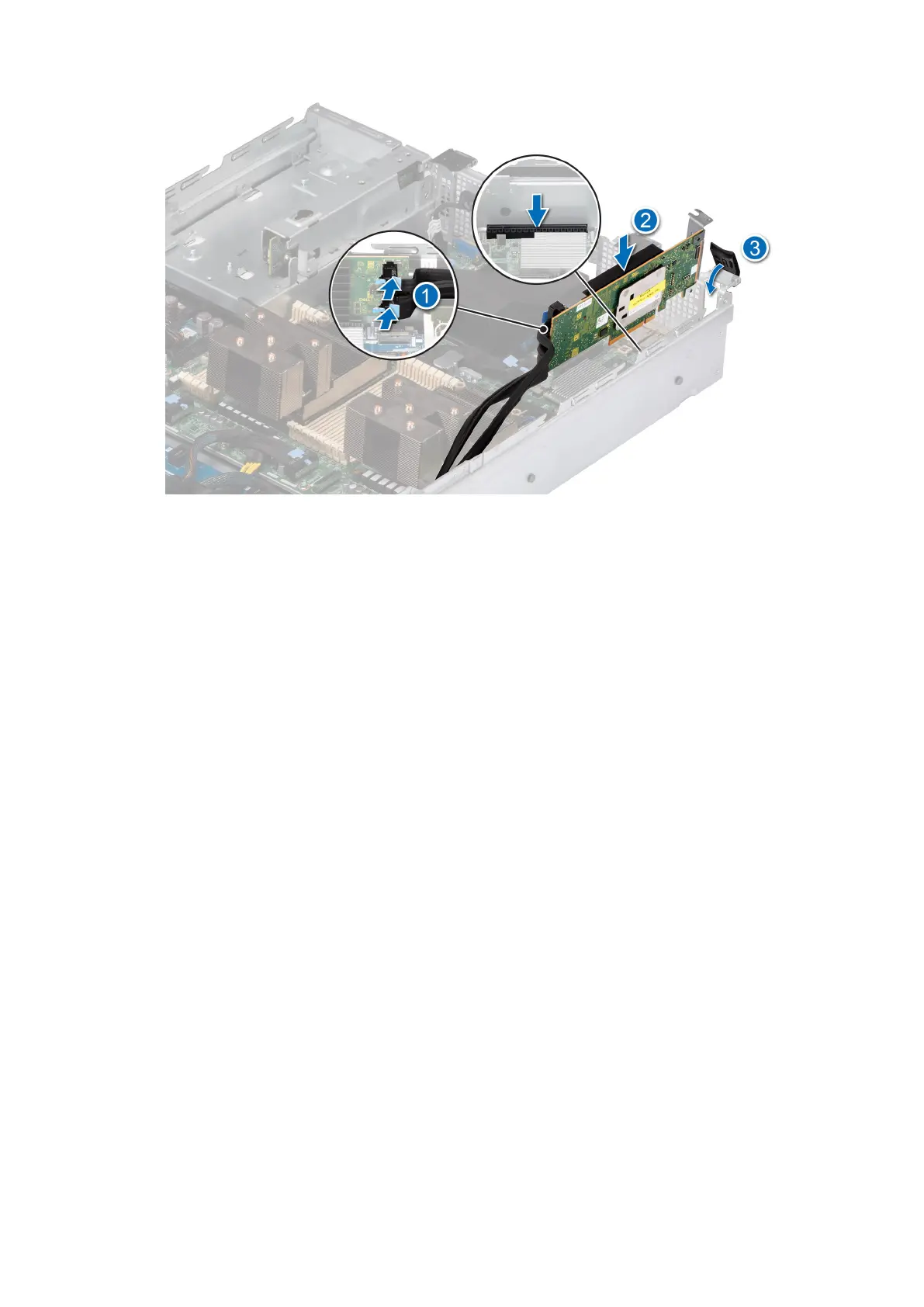

Figure 105. Installing the adapter PERC
3. Insert the adapter PERC in the slot 1 of the system board.
Next steps
1. If removed, install the air shroud.
2. Follow the procedure listed in After working inside the system.
Removing the rear mounting front PERC module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the drive backplane cover.
4. Remove the air shroud.
5. Remove the cooling fan cage.
6. Disconnect all the cables, observe the cable routing.
Steps
1. Using a Phillips #2 screwdriver, loosen the captive screws on rear mounted front PERC module.
2. Slide the front PERC module to disengage from the connector on the drive backplane.
Installing and removing system components
107

Dell EMC PowerEdge R750xs Specifications

General

Management	iDRAC9 with Lifecycle Controller
Processor	Up to two 3rd Generation Intel Xeon Scalable processors, with up to 32 cores per processor
Memory	Up to 1TB DDR4 at 3200MT/s; 16 DIMM slots
Storage	Up to 12 x 3.5" drives (SAS/SATA/NVMe)
RAID Support	H355
Power Supply	800W, 1100W, 1400W Platinum
Network	OCP 3.0 Network Daughter Card options, up to 2x 25GbE
Form Factor	2U rack
Dimensions	Height: 86.8 mm (3.41 inches), Width: 482.0 mm (18.98 inches)
Expansion Slots	Up to 5 PCIe Gen4 slots
GPU Support	Supports up to 2 single-width GPUs
Operating System Support	Canonical Ubuntu Server LTS, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
