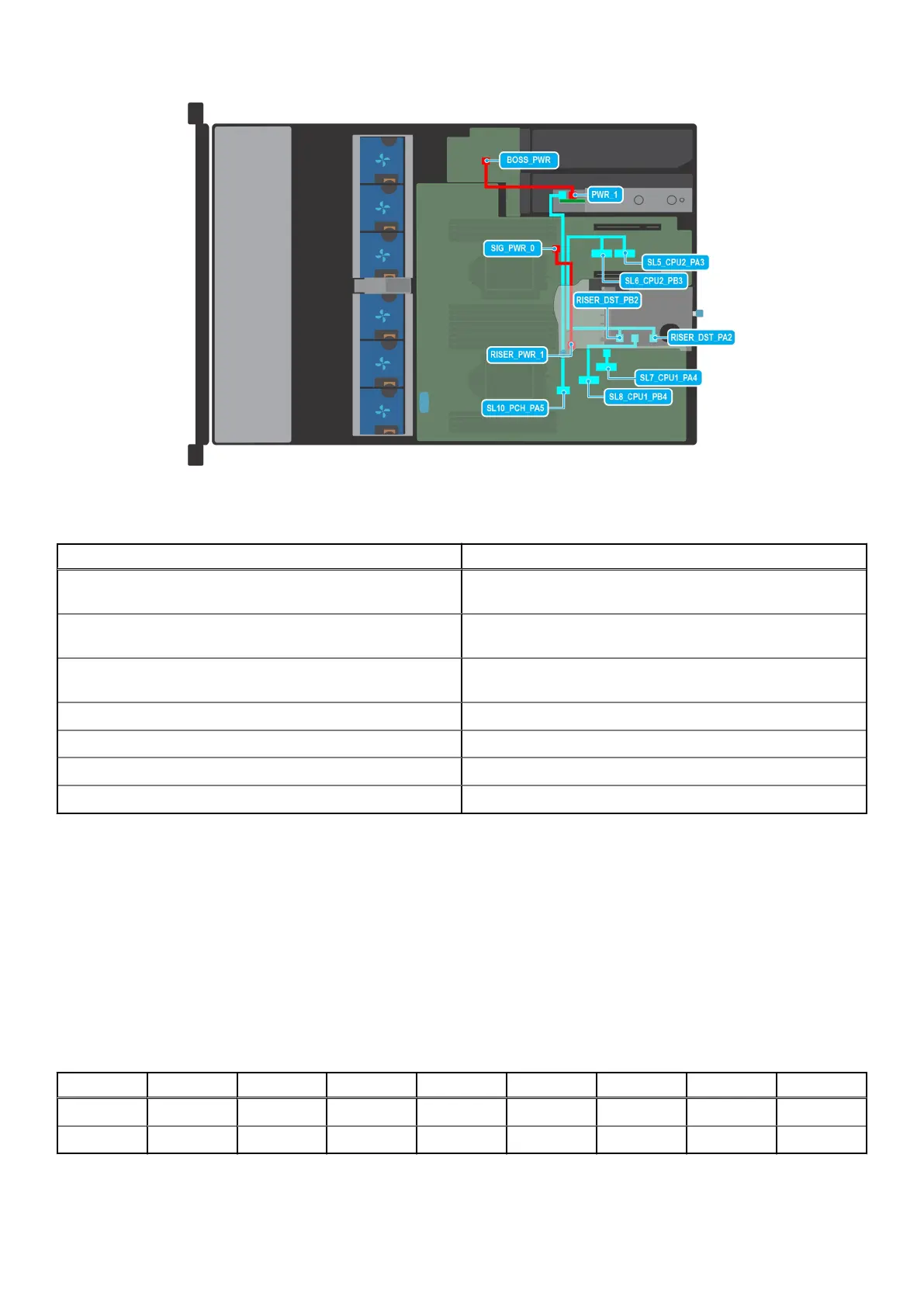

Figure 61. Cable routing - 0 drive configuration with cable riser 1A and BOSS S2 card
Table 24. Cable routing - 0 drive configuration with cable riser 1A and BOSS S2 card
From To
PWR_1 (BOSS card power connector) BOSS_PWR (Power connector for BOSS card on system
board)
Signal connector on BOSS card SL10_PCH_PA5 (Signal connector for BOSS card on system
board)
RISER_PWR_1 (Power connector on the riser) SIG_PWR_0 (Power connector for cabled riser on system
board)
RISER_DST_PB2 (Signal connector on riser) SL6_CPU2_PB3 (Signal connector on system board)
RISER_DST_PA2 (Signal connector on riser) SL5_CPU2_PA3 (Signal connector on system board)
Signal connector on riser SL7_CPU1_PA4 (Signal connector on riser)
Signal connector on riser SL8_CPU1_PB4 (Signal connector on riser)
System memory
System memory guidelines
The PowerEdge R750xs system supports DDR4 registered DIMMs (RDIMMs). System memory holds the instructions that are
executed by the processor.
Your system contains 16 memory sockets organized into 8 channels per processor.
Memory channels are organized as follows:
Table 25. Memory channels
Processor Channel A Channel B Channel C Channel D Channel E Channel F Channel G Channel H
Processor 1 A1 A5 A3 A7 A2 A6 A4 A8
Processor 2 B1 B5 B3 B7 B2 B6 B4 B8
68 Installing and removing system components

Dell EMC PowerEdge R750xs Specifications

General

Management	iDRAC9 with Lifecycle Controller
Processor	Up to two 3rd Generation Intel Xeon Scalable processors, with up to 32 cores per processor
Memory	Up to 1TB DDR4 at 3200MT/s; 16 DIMM slots
Storage	Up to 12 x 3.5" drives (SAS/SATA/NVMe)
RAID Support	H355
Power Supply	800W, 1100W, 1400W Platinum
Network	OCP 3.0 Network Daughter Card options, up to 2x 25GbE
Form Factor	2U rack
Dimensions	Height: 86.8 mm (3.41 inches), Width: 482.0 mm (18.98 inches)
Expansion Slots	Up to 5 PCIe Gen4 slots
GPU Support	Supports up to 2 single-width GPUs
Operating System Support	Canonical Ubuntu Server LTS, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
