Dell EMC PowerEdge R750xs Service Manual

PowerEdge R750xs system overview
The PowerEdge R750xs system 2S, 2U system that supports:
● Up to two 3
rd
Generation Intel Xeon Scalable processors with up to 32 cores per processor.
● 16 DDR4 DIMM slot
● Two AC or DC power supply units
● 16 x 2.5-inch SAS/ SATA + 8 x 2.5-inch NVMe drives.
● 16 x 2.5-inch SAS/ SATA drives.
● 12 x 3.5-inch SAS/ SATA + 2 x 2.5-inch SAS/ SATA or NVMe rear drives.
● 8 x 2.5-inch SAS/ SATA drives.
● 8 x 2.5-inch NVMe drives.
● 8 x 3.5-inch SAS/ SATA drives.
NOTE: For more information about how to hot swap NVMe PCIe SSD U.2 device, see the Dell Express Flash NVMe
PCIe SSD User's Guide at https://www.dell.com/support > Browse all Products > Data Center Infrastructure >
Storage Adapters & Controllers > Dell PowerEdge Express Flash NVMe PCIe SSD > Documentation > Manuals
and Documents.
NOTE: All instances of SAS, SATA and NVMe drives are referred to as drives in this document, unless specified otherwise.
NOTE: For more information, see the Dell EMC PowerEdge R750xs Technical Specifications on the product documentation
page.
Topics:
• Front view of the system
• Rear view of the system
• Inside the system
• System information label
• Rail sizing and rack compatibility matrix
• Locating the Express Service Code and Service Tag
Front view of the system

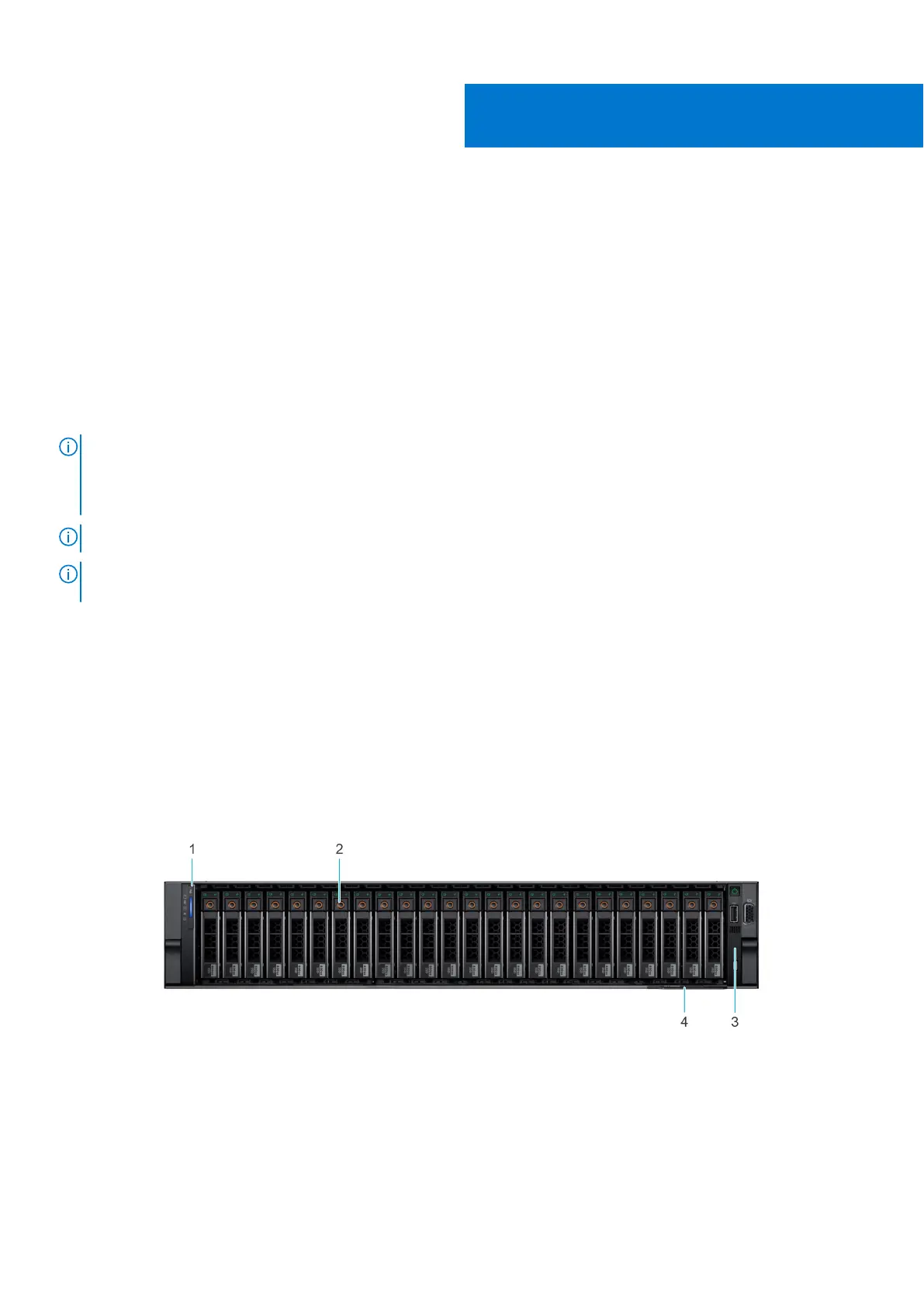

Figure 1. Front view of 16 x 2.5-inch SAS/SATA + 8 x 2.5-inch NVMe drive system
2
8 PowerEdge R750xs system overview

Dell EMC PowerEdge R750xs Specifications

General

Management	iDRAC9 with Lifecycle Controller
Processor	Up to two 3rd Generation Intel Xeon Scalable processors, with up to 32 cores per processor
Memory	Up to 1TB DDR4 at 3200MT/s; 16 DIMM slots
Storage	Up to 12 x 3.5" drives (SAS/SATA/NVMe)
RAID Support	H355
Power Supply	800W, 1100W, 1400W Platinum
Network	OCP 3.0 Network Daughter Card options, up to 2x 25GbE
Form Factor	2U rack
Dimensions	Height: 86.8 mm (3.41 inches), Width: 482.0 mm (18.98 inches)
Expansion Slots	Up to 5 PCIe Gen4 slots
GPU Support	Supports up to 2 single-width GPUs
Operating System Support	Canonical Ubuntu Server LTS, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
