Dell EMC PowerEdge R750xs Service Manual

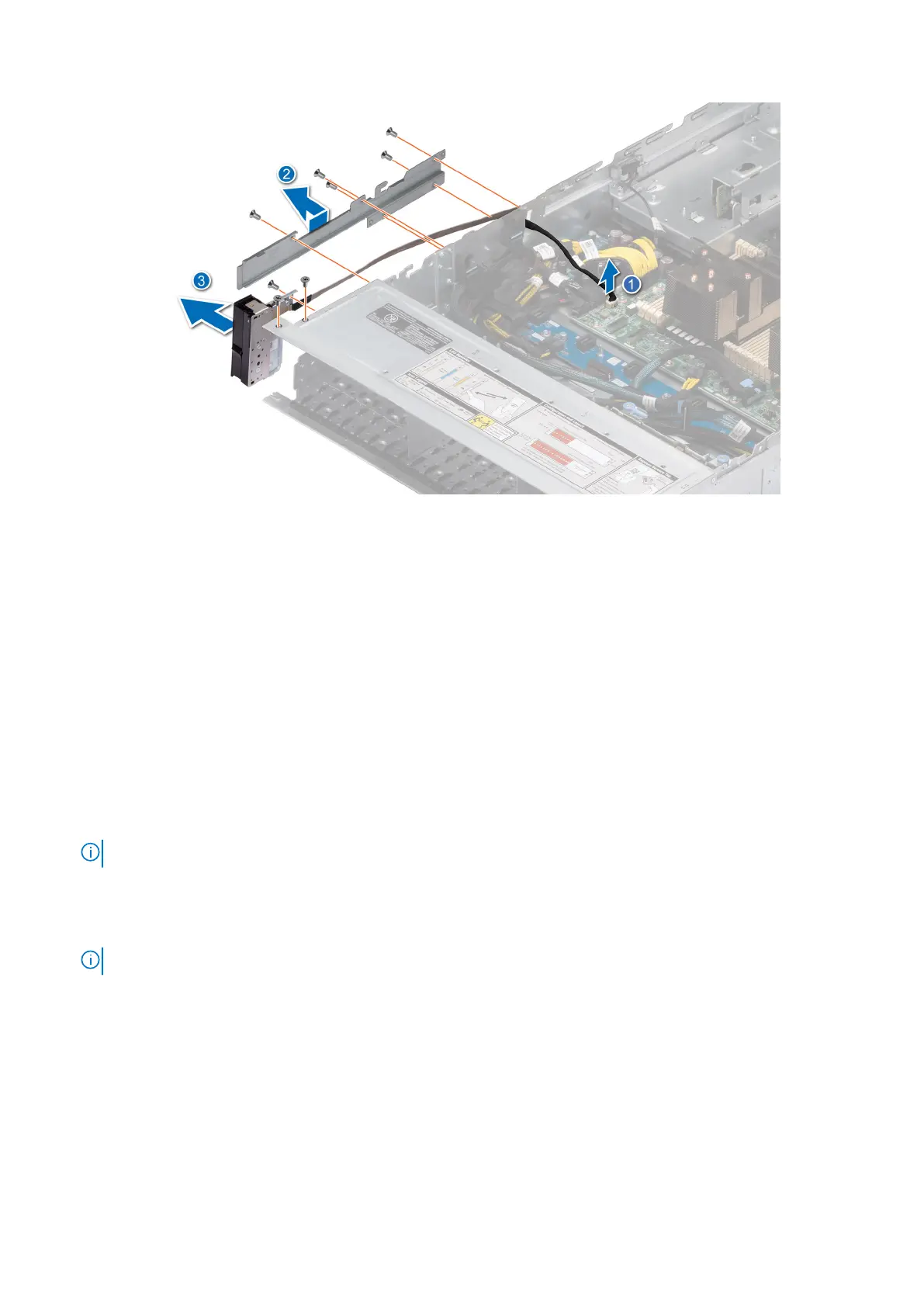

Figure 129. Removing the left control panel
Next steps
Replace the left control panel.
Installing the left control panel
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
Steps
1. Route the control panel cable and the VGA cable through the cable clip, the guide slots in the system and connector on
system board.
NOTE: Route the cable properly to prevent the cable from being pinched or crimped.
2. Close and secure the cable guiding latch.
3. Align and insert the left control panel assembly in the slot on the system.
4. Using the Phillips #1 screwdriver, tighten the screws that secure the left control panel assembly to the system.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
Figure 130. Installing the left control panel
Installing and removing system components
131

Dell EMC PowerEdge R750xs Specifications

General

Management	iDRAC9 with Lifecycle Controller
Processor	Up to two 3rd Generation Intel Xeon Scalable processors, with up to 32 cores per processor
Memory	Up to 1TB DDR4 at 3200MT/s; 16 DIMM slots
Storage	Up to 12 x 3.5" drives (SAS/SATA/NVMe)
RAID Support	H355
Power Supply	800W, 1100W, 1400W Platinum
Network	OCP 3.0 Network Daughter Card options, up to 2x 25GbE
Form Factor	2U rack
Dimensions	Height: 86.8 mm (3.41 inches), Width: 482.0 mm (18.98 inches)
Expansion Slots	Up to 5 PCIe Gen4 slots
GPU Support	Supports up to 2 single-width GPUs
Operating System Support	Canonical Ubuntu Server LTS, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
