Steps

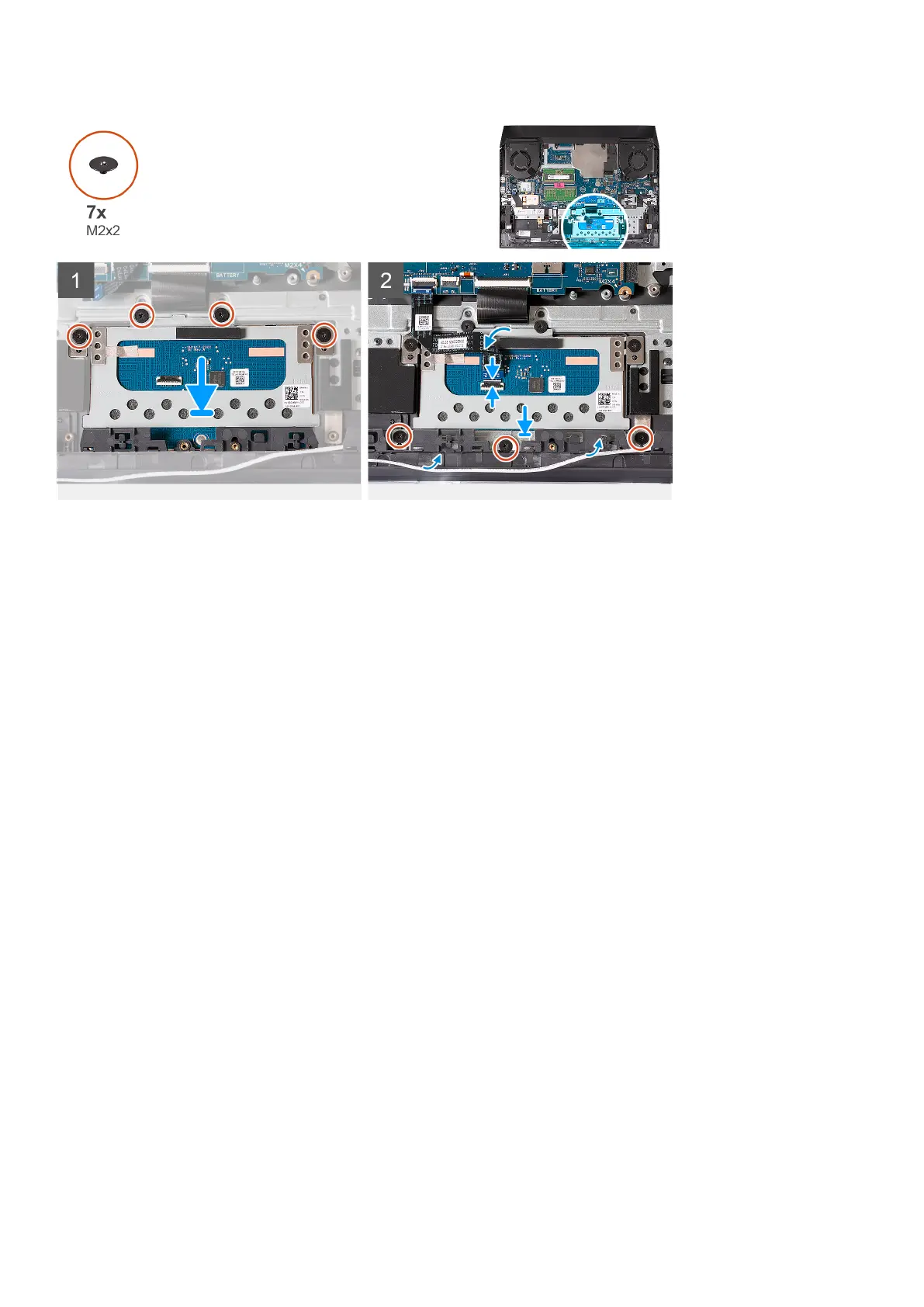

1. Align and place the touchpad into the slot on the palm-rest and keyboard assembly.
2. Align and place the touchpad bracket into the slot on the palm-rest and keyboard assembly.
3. Replace the four (M2x2) screws that secure the touchpad to the palm-rest and keyboard assembly.
4. Replace the three (M2x2) screws that secure the touchpad bracket to the palm-rest and keyboard assembly.
5. Adhere the touchpad cable to the touchpad.
6. Connect the touchpad cable to the system board and close the securing latch.
7. Route the speaker cable through the routing guides on the palm-rest and keyboard assembly.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the speakers and provides a visual representation of the removal procedure.
