Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
The procedures in this document may require the following tools:
ā Phillips screwdriver #0
ā Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

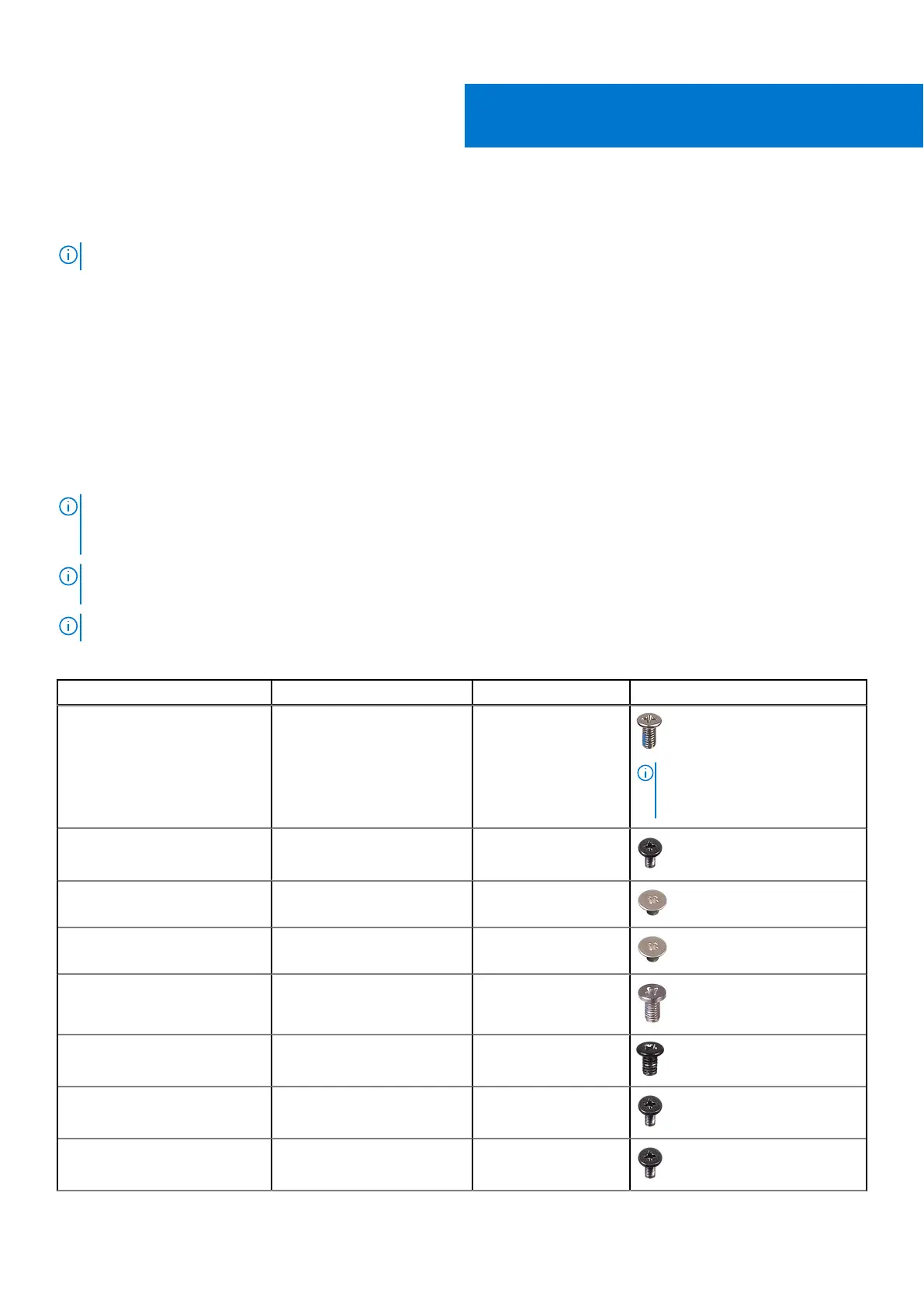

Table 1. Screw list
Component Screw type Quantity Screw image
Base cover M2x6 4
NOTE: Screw color may vary
depending on the configuration
ordered.
Battery M2x4 4
Touchpad bracket M2x2 7
Rear cover M2x2 2
Rear cover M2.5x5 2
Display-hinge brackets M2.5x4 8
SSD1 M2x4 2
SSD2 M2x4 2
2
